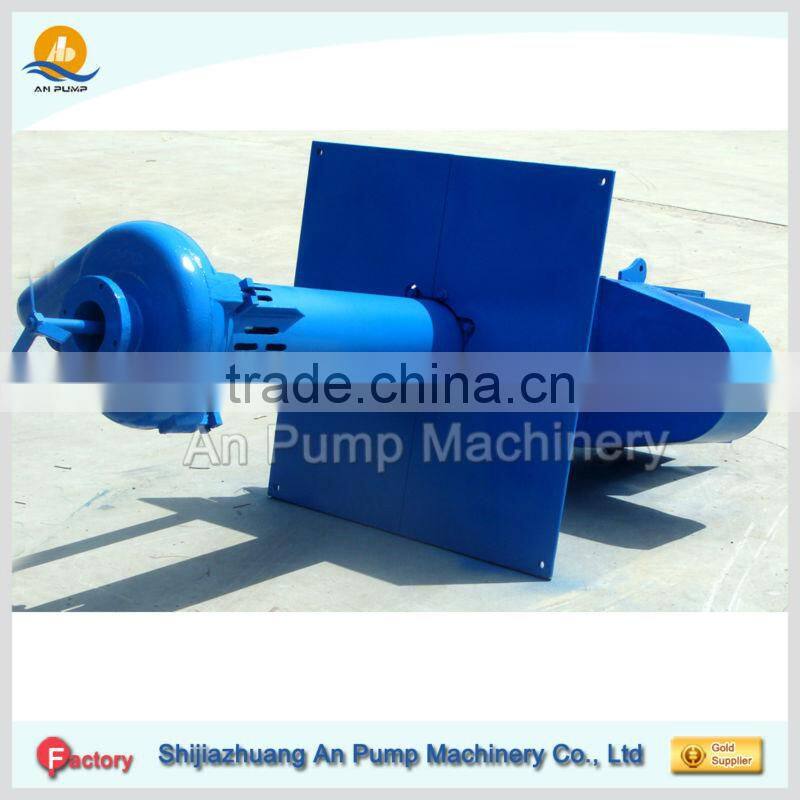

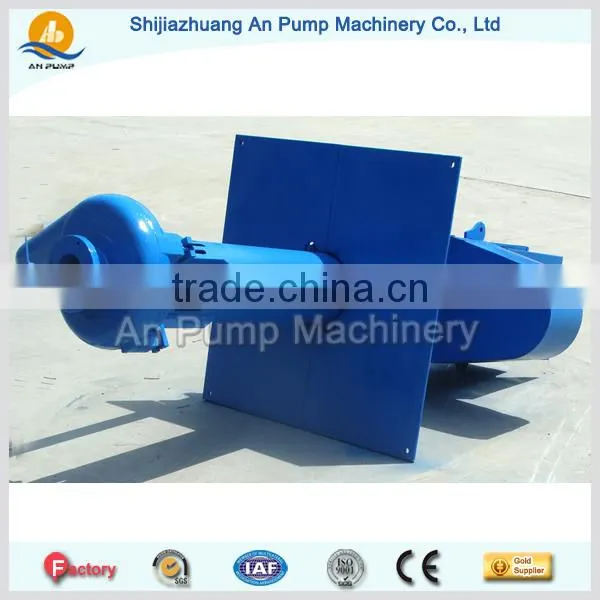

Centrifugal submersible sump pump drainage
Centrifugal submersible sump pump drainage application
This pump is suitable for metallurgy, mining, coal, power plants, building materials and general industrial applications that convey abrasive and high-concentration slurry.
This pump has been used very successfully for ash removal in power plants.
In the mine site pump station
Drainage slurry working condition

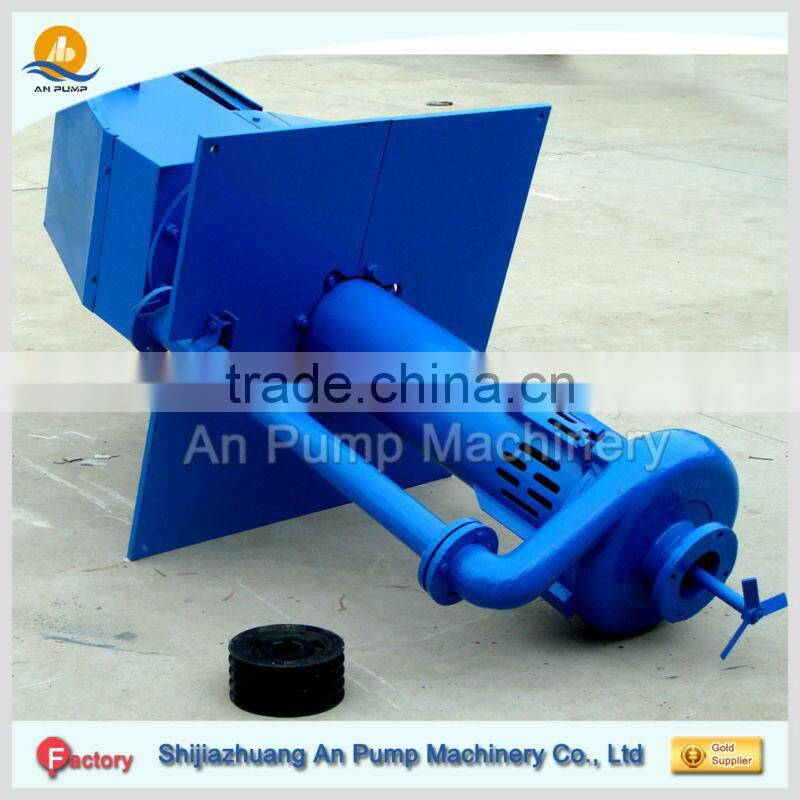

Centrifugal submersible sump pump drainage details
1.Overview of BP Submersible Sump Pump:
The vertical centrifugal slurry pumps, which plunges immersed in liquid for conveying abrasive, coarse particles, high concentration slurry. The shaft seal and seal water does not be required, and the pump can also work inhaling the inadequacy of the operating conditions.
2.Application of Submersible Sump Pump:
Mainly is suitable for the transportation corrosiveness, the big pellet, the highly concentrated dregs thick liquid. Widely applies to department and so on metallurgy, mine, coal, electric power, building materials, environmental
protection.
3.Salient Features of Submersible Sump Pump:
a) The wear parts are made of alloy of abrasion resistance .
b) High efficiency and energy efficiency
c) Light weight and long service life time
d) Rational construction and reliable operation.
e) Lower noise

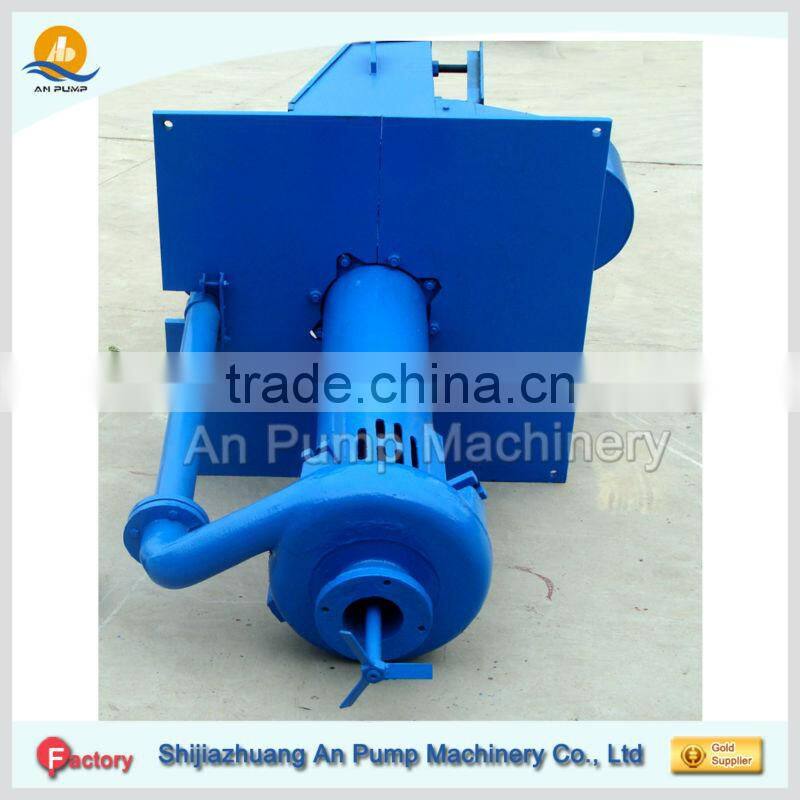

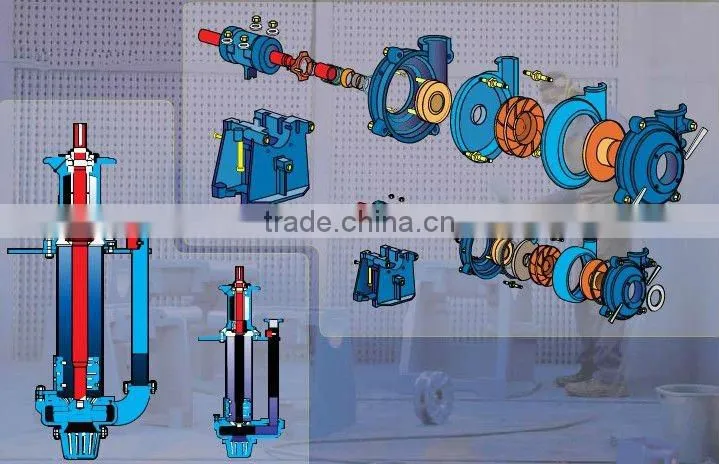

Centrifugal submersible sump pump drainage structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.
Centrifugal submersible sump pump drainage parameter
Type | Material | Flow | Head | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |
Centrifugal submersible sump pump drainage curve

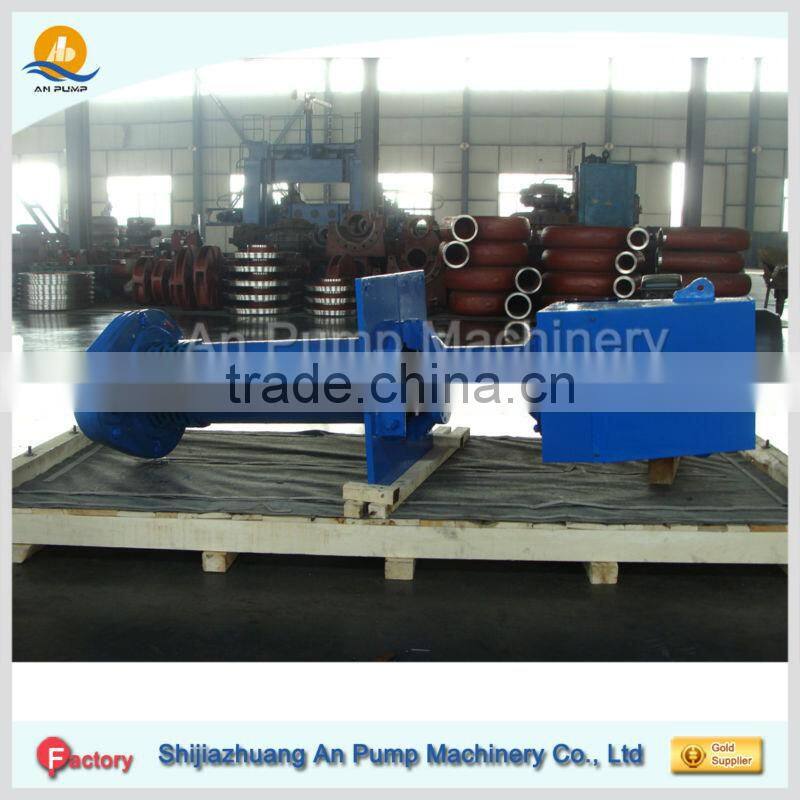

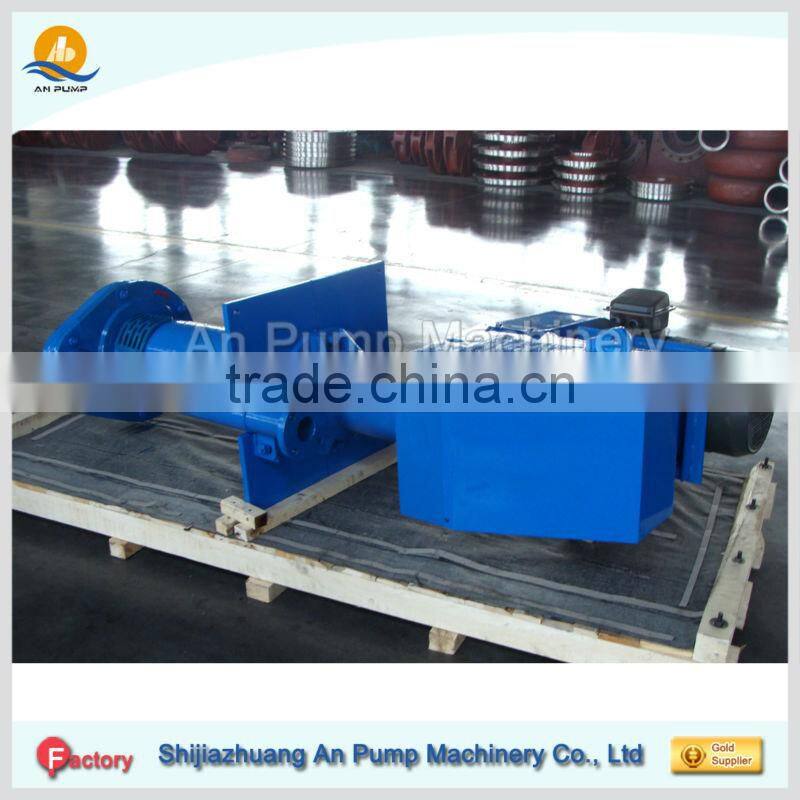

Centrifugal submersible sump pump drainage packing and shipping
