Sump pump basin installation
Sump pump basin installation feature
1) Cantilevered shaft design.
2) Double suction semi-open impeller.
3) Agitator option keeps solids in suspension.
4) LBP models feature full rubber covering for corrosion resistance.
5) Recessed impeller option passes over sized material.
6) Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Sump pump basin installation Introduction
1. BP(R) type submerged pumps are vertical centrifugal slurry pump, generally into the pool or pit to work, used to transport abrasive, coarse particle, high concentration slurry.
2. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they can also work normally.
3. BP(R) type submerged pumps' pump body is made of wear-resisting metal. Impeller is made of wear-resistant metal or rubber, polyurethane SP (R) type submerged pumps parts into the liquid with rubber lining,they are all applicable to transport corrosive slurry.
The range of performance
Flow rate: 17~1267m3/h
Head: 4~40m
Outlet pressure: 4Bar
Outlet flange: 40~300mm
Sump pump basin installation paramter
Sump pump basin installation curve
Sump pump basin installation structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.

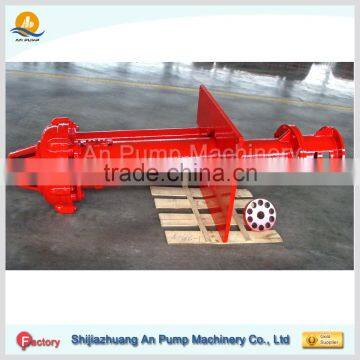

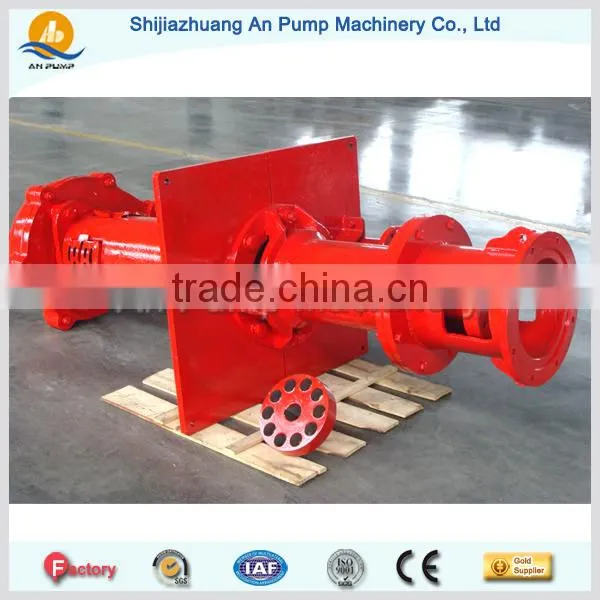

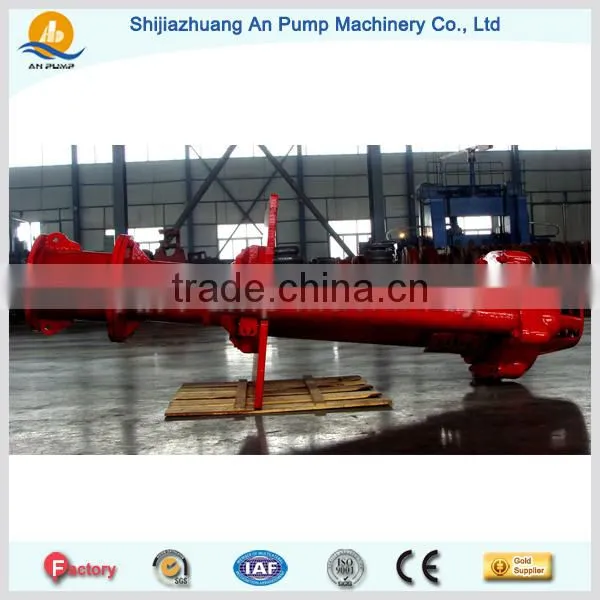

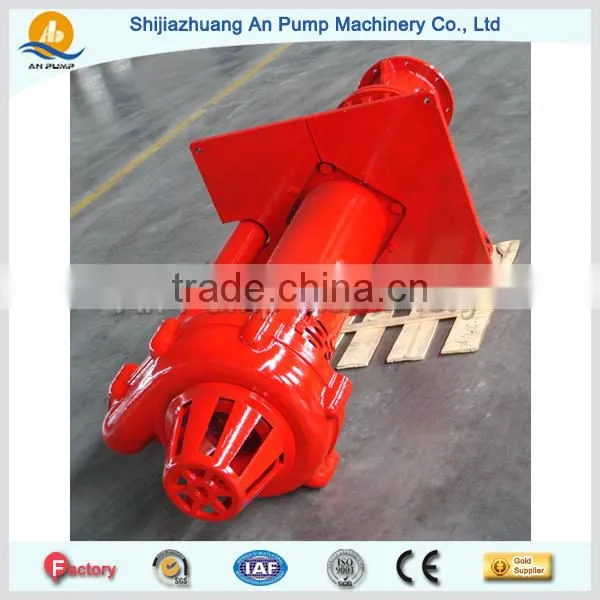

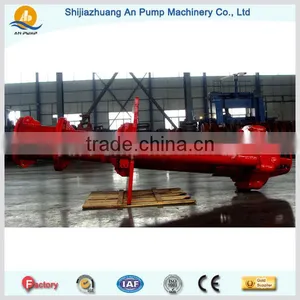

Sump pump basin installation pictures
Sump pump basin installation application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Sump pump basin installation packing
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Learn more , please contact us directly.
Web:
Email:coco(@)
Tel:86-311-89940549 Fax:86-311-86271170
WhatsApp:0086-137-3107-1183
Skype:mandy.anpump
