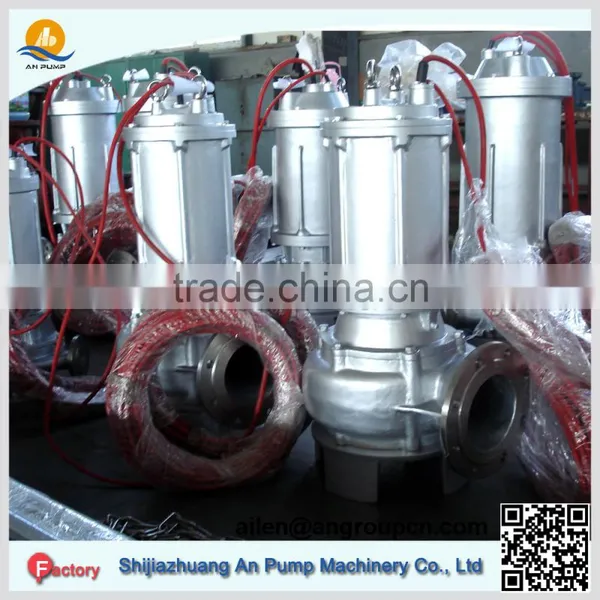

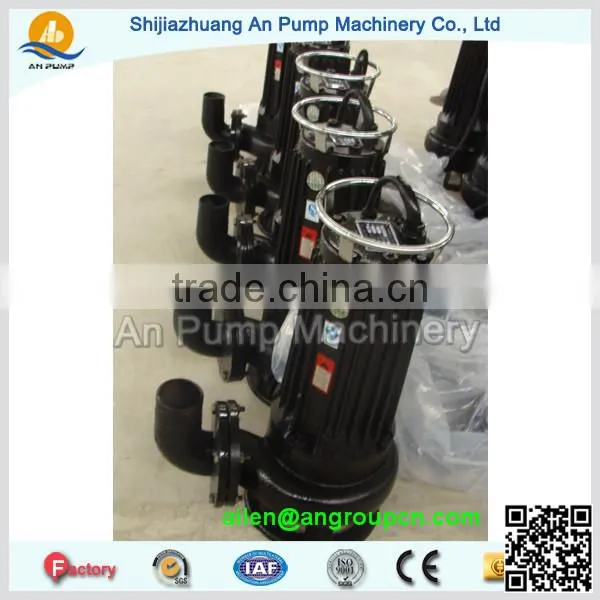

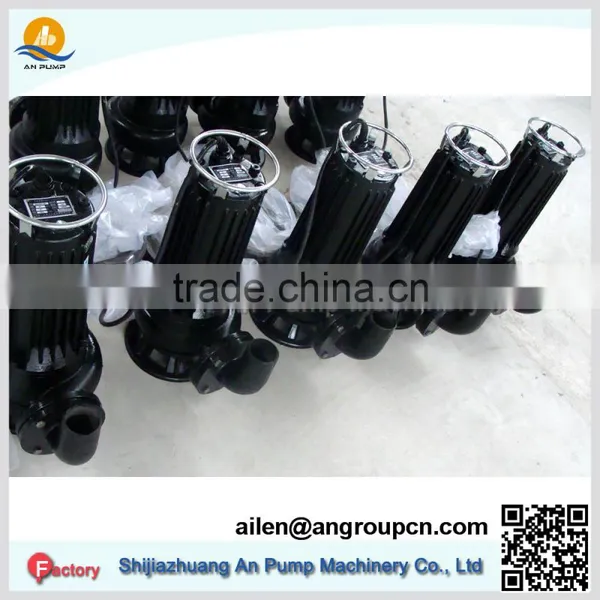

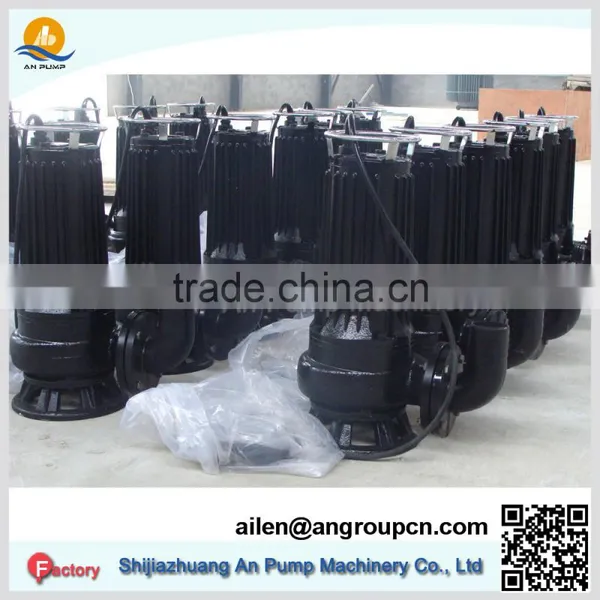

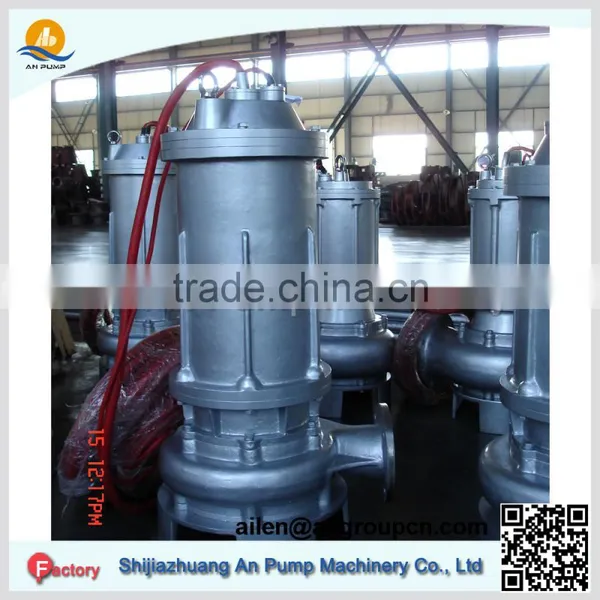

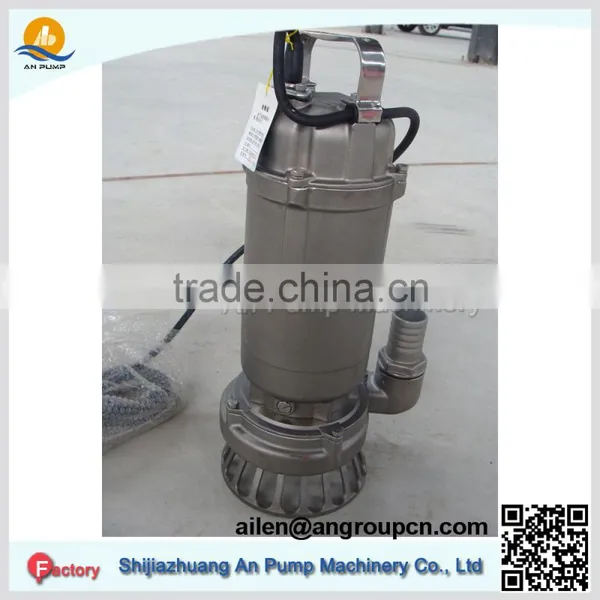

Centrifugal Submersible Sump Trash Fish Pond Water Pump
Overview
Overview about Centrifugal Submersible Sump Trash Fish Pond Water Pump

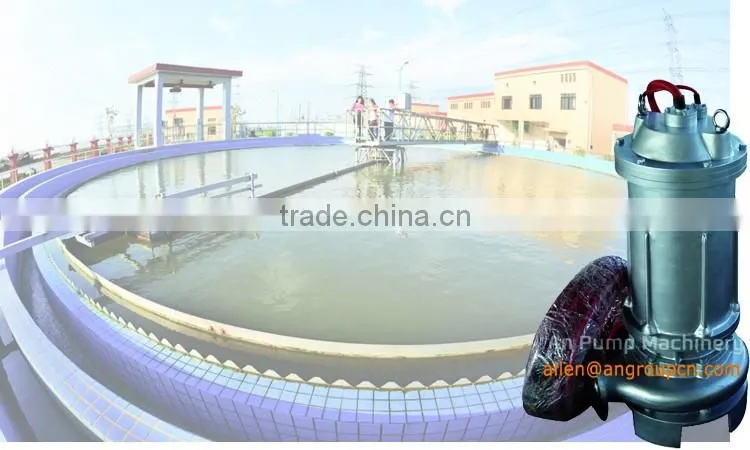

AQW series centrifugal sump pond submersible sewage trash pump is Centrifugal submersible sewage sump pump, mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc.
Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long farics.
Model Meaning
Model meaings about Centrifugal Submersible Sump Trash Fish Pond Water Pump
50AQW5-8-0.75
50: Outlet diameter of Centrifugal submersible pump for sewage
AWQ: centrifugal sump pond submersible sewage trash pump
5: Capacity (Flow rate) (m3/h) of Centrifugal submersible pump for sewage
8: Centrifugal submersible pump for sewage design head
0.75: Motor power(kw)
Construction
Construction about Centrifugal Submersible Sump Trash Fish Pond Water Pump
Features about Centrifugal Submersible Sump Trash Fish Pond Water Pump
| Item | Description |
| Impeller | With the optimized design, the impeller will not be blocked up when to transport liquid with its optimum flow and rate at the maximum efficiency. There are suitable impellers at choice for every point of working condition. There are single channel, dual channel and three blade impellers available according to pump medium. |
| Shaft seal | Mechanical seal The sealing material on the pump side is silicon carbide/ tungsten carbide, while on the motor side is graphite/silicon carbide. |
| Bearing | Adopt importing brand bearing,Or China famous bearing, its reasonable configuration can extend the duration of the pump. |
| Pump casing | Use the know-how of CAD/CAM to make it of max. efficiency and min wearability. |
| Shaft | The pump is coaxial with the motor and the sealing device on the end of the shaft prevents against contacting with the medium, to protect the shaft from corrosion. The as short as possible designed stretched rotating shaft can be reduced with its deflection and vibration, extend the duration of both mechanical seal and bearing and lower the noise at running. |
| Cooling | The built-in cooling system can have the pump work normally whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the heat produced by the motor from the pump circulation to the cooling barrel and to the pump casing, when external cooling is required, the cooling sleeve may be separated from the pump casing and connected to the individual cooling system. |
| Motor | It is F class insulation, Max. working temperatures is 155°C and of a motor protective grade IPX8 with the effective seal. |
| Oil chamber | Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor. The air of a certain amount left inside of the chamber can lower the pressure accumulatively raised. |
| Rotate direction | The impeller rotates CCW as viewed from the suction end. |

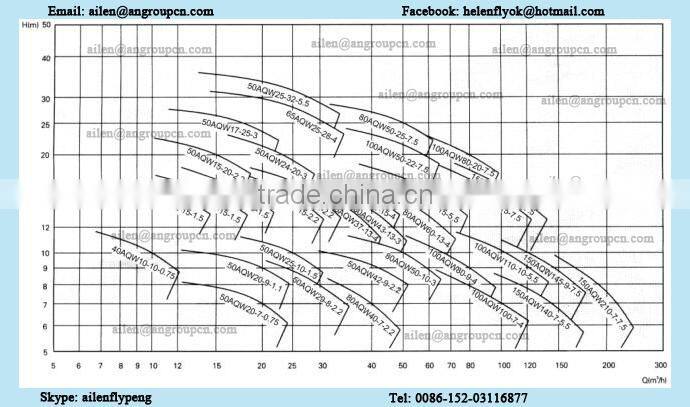

Submersible sewage transfer pump Performance Curve Chart
Performance chart for Centrifugal Submersible Sump Trash Fish Pond Water Pump
Packing and Shipping
Packging and shipping about Centrifugal Submersible Sump Trash Fish Pond Water Pump
Our services about Centrifugal Submersible Sump Trash Fish Pond Water Pump
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Shijiazhuang an pump is the manufactuer of sewage submersible sump pump with 20 years experience.
1. How to connect the sealing water tube for Centrifugal Submersible Sump Trash Fish Pond Water Pump system?
A: just connect the clean water pipe, and keep the pressure higher than the dischare pressure
