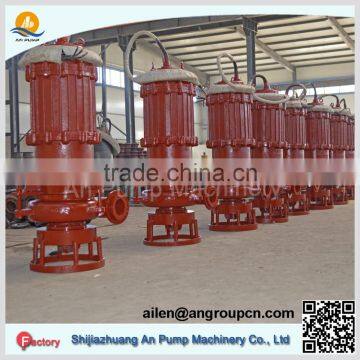

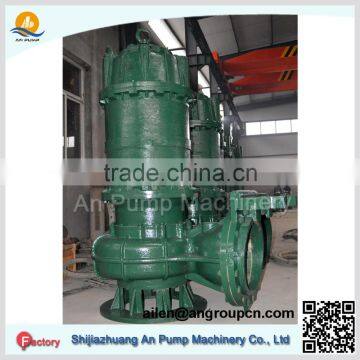

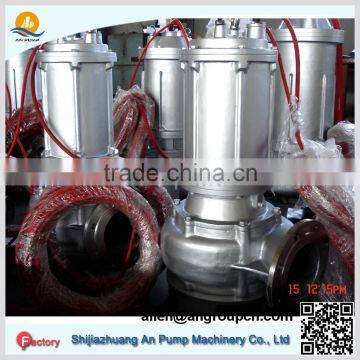

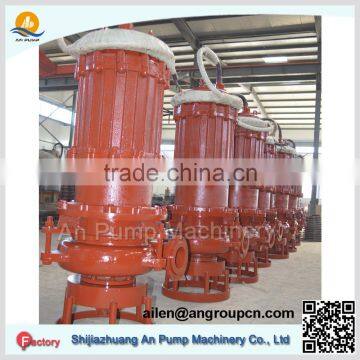

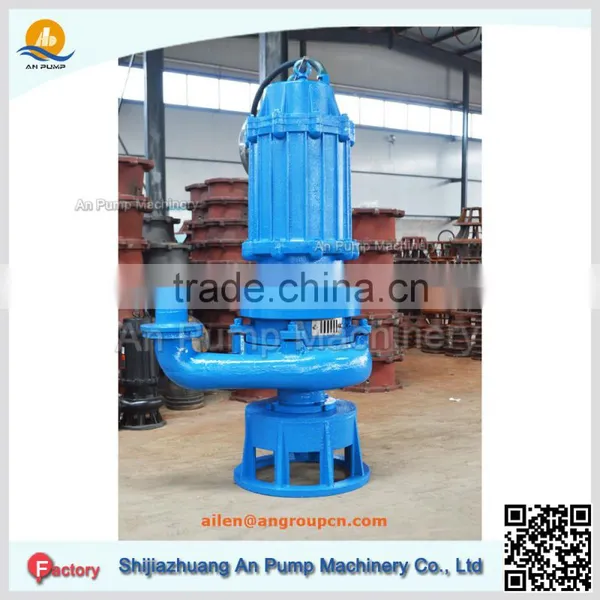

Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
Overview of Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
Submersible slag slurry pump motor and pump coaxial dive into the water works, is mainly used for sediment, slurry, coal slurry, sand Ishii mud pumping, sedimentation pool, river dredging industry transport with high concentration of solid particles in the slurry. Such as metallurgical ore dressing plant slurry transportation, coal-fired power plant ash, coal washery coal slurry and heavy medium conveying, river dredging, river dredging. In the chemical industry, it also can transport some corrosive slurry containing the crystal.
Application for Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump

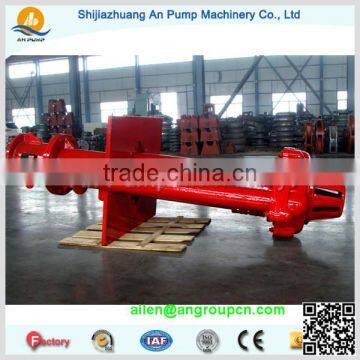

Heavy duty submersible slurry pump mainly used for delivery the slurry which is strong corrosive with fine particles. Vertical slurry pump are widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
Perfomance data of Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
| NO. | Type | Outlet | Capacity | Head | Power | Speed | Eff. | max. dia.of granule |
| Dia | ||||||||
| (mm) | (M3/h) | (M) | (Kw) | (r/min) | (%) | (mm) | ||
| 1 | 30-30-7.5 | 80 | 24 | 31 | 7.5 | 1460 | 43 | 13 |
| 30 | 30 | |||||||
| 36 | 29 | |||||||
| 2 | 50-21-11 | 100 | 35 | 22 | 11 | 1460 | 48 | 21 |
| 50 | 21 | |||||||
| 60 | 20 | |||||||
| 3 | 50-26-11 | 80 | 35 | 29 | 11 | 1460 | 48 | 13 |
| 50 | 26 | |||||||
| 60 | 24 | |||||||
| 4 | 100-18-11 | 100 | 70 | 20 | 11 | 1460 | 55 | 21 |
| 100 | 18 | |||||||
| 120 | 15 | |||||||
| 5 | 25-40-15 | 80 | 18 | 41 | 15 | 1460 | 35 | 13 |
| 25 | 40 | |||||||
| 30 | 39 | |||||||
| 6 | 50-35-15 | 100 | 35 | 38 | 15 | 1460 | 47 | 13 |
| 50 | 35 | |||||||
| 60 | 32 | |||||||
| 7 | 60-30-15 | 100 | 40 | 33 | 15 | 1460 | 50 | 13 |
| 60 | 30 | |||||||
| 72 | 27 | |||||||
| 8 | 75-25-15 | 100 | 52 | 28 | 15 | 1460 | 51 | 13 |
| 75 | 25 | |||||||
| 90 | 22 | |||||||
| 9 | 150-15-15 | 150 | 105 | 17 | 15 | 1460 | 56 | 21 |
| 150 | 15 | |||||||
| 180 | 13 |
Performance curve for Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
Material of Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
Metal material:
| Item | Code |
| Chrome alloy | Cr |
| Cast iron | - |
| Grey iron | HT |
| Ductile cast iron | QT |
| Staniless Steel | SS304, SS306, SS316L |
| Duplex stainless steel | CD-4MCu |
| Bronze | - |
Rubber material:
Category |
Specification |
Natural rubber |
Ru |
Synthetic rubber |
Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
Features for Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
1. Submersible slurry pump with common submersible pump performance in the same general.
2. Submersible slurry pump has a variety of models (diameter 50-350), suitable for various purposes.
3. Submersible pump, slurry pump impeller adopts wear-resistant material, can be used for conveying containing iron oxide, clay sand medium.
4. Submersible slurry pump is used copper alloy, silicon carbide materials, oil lubricated type double end face mechanical seal, to provide comprehensive and effective waterproof.
5. Submersible slurry pump is built-inside motor protector, which can prevent the motor to be burned due to overload, phase lack and Water Leakage stuck.
6. Submersible slurry pump is equipped with automatic coupling device, which is convenient for installation, maintenance and repair work.
7. Submersible pump can be equipped with automatic control cabinet ,slurry pump can be automatic alternation operation.
8. Submersible slurry pump flushing sewage submersible pump is at the bottom of the pumpto install sewage flushing device, motor rotation Chong pollution on the surrounding medium of rotary impact, can be effectively around the precipitate stirring flush and exhaust, according to size.

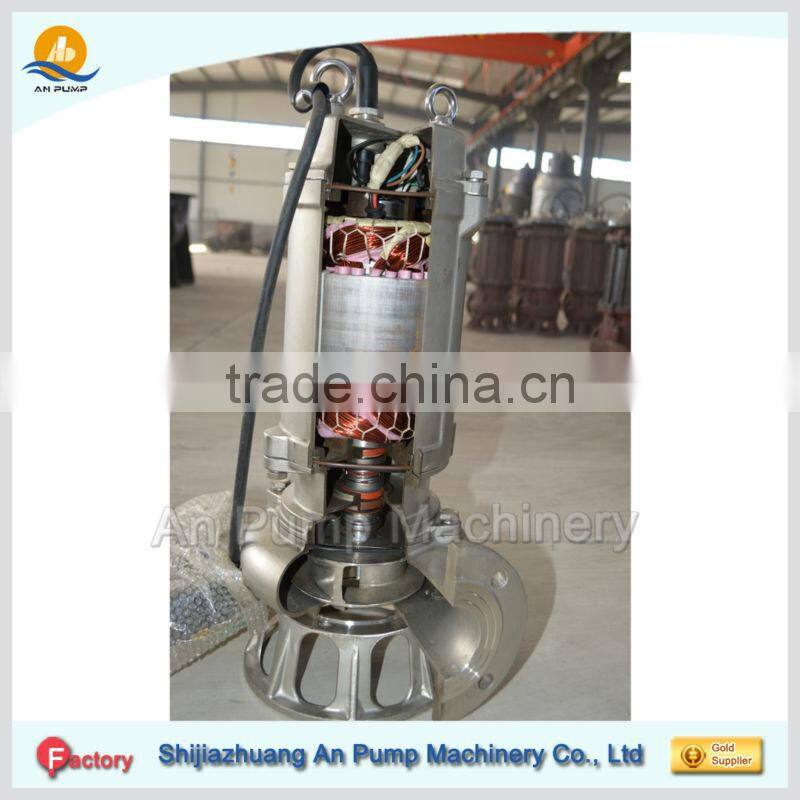

Construction for Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump

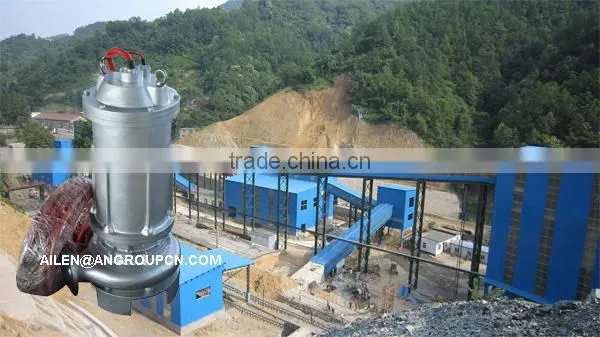

Installation types about Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
Packaging and shipping for Heavy Duty Centrifugal Submersible Sump Sand Sewage Slurry Pump
