Energy Saving sludge sump pump
Energy Saving sludge sump pump specification
1.Overview of BP(R) Slurry Pump
The vertical centrifugal slurry pumps, which plunges immersed in liquid for conveying abrasive, coarse particles, high concentration slurry. The shaft seal and seal water does not be required, and the pump can also work inhaling the inadequacy of the operating conditions.
2.Application of BP(R) Slurry Pump:
Mainly is suitable for the transportation corrosiveness, the big pellet, the highly concentrated dregs thick liquid. Widely applies to department and so on metallurgy, mine, coal, electric power, building materials, environmental
protection.
3.Salient Features of BP(R) Slurry Pump:
a) The wear parts are made of alloy of abrasion resistance .
b) High efficiency and energy efficiency
c) Light weight and long service life time
d) Rational construction and reliable operation.
e) Lower noise
Energy Saving sludge sump pump parameter
Type | Outlet Diameter mm | Speed n r/min | Water performance | motor Power kw | Impeller Diameter mm | ||
Capacity Q (m3/h) | Head H (m) | Efficiency (%) | |||||
40PV- BP(R) | 40 | 1000-2000 | 17-43.2 | 4-28.5 | 40 | 15 | 188 |
65QV- BP(R) | 65 | 700-1500 | 18-114 | 5-31.5 | 60 | 30 | 280 |
100RQV- BP(R) | 100 | 500-1200 | 54-289 | 5-36 | 62 | 75 | 370 |
150SV- BP(R) | 150 | 500-1000 | 108-479 | 8.5-40 | 52 | 110 | 450 |
200SV- BP(R) | 200 | 400-850 | 189-891 | 6.5-37 | 64 | 110 | 520 |
250TV- BP(R) | 250 | 400-750 | 261-1089 | 7-33.5 | 60 | 200 | 575 |
300TV- BP(R) | 300 | 350-700 | 288-1267 | 6-33 | 50 | 200 | 610 |

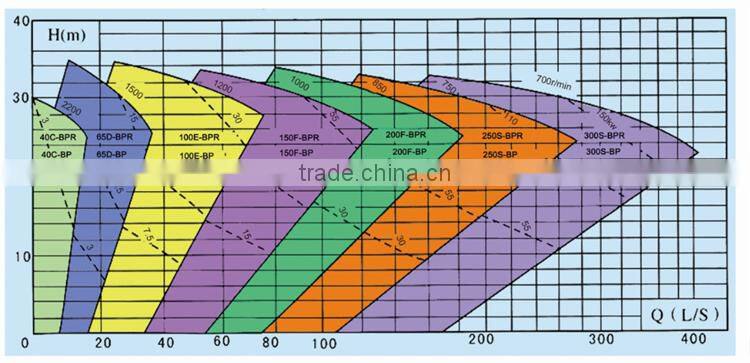

Energy Saving sludge sump pump curve
Energy Saving sludge sump pump structure
Energy Saving sludge sump pump application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.

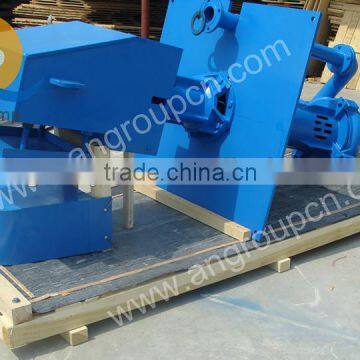

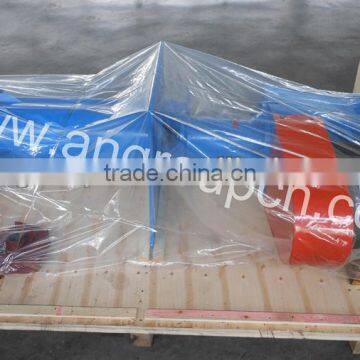

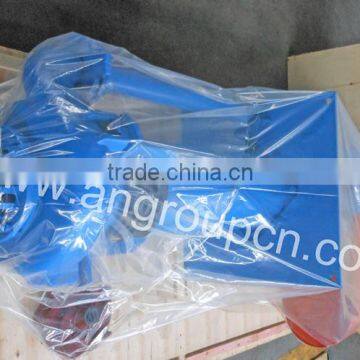

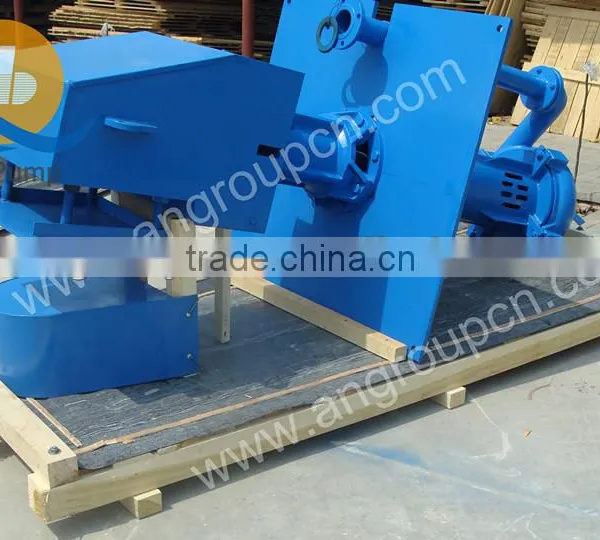

Energy Saving sludge sump pump Packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
