The BP series pump is single stage, vertical cantilever, single and double suction pump. Liquid ends construction is the same white iron as in the other models. Bearing are grease rrosion resistance Sump pump
The BPR is constructed similar to BP, except all the parts in contact with the pumpage are rubber coated, The rubber coating is used for corrosive applications.
Series BP(R) slurry pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry.
1.Widely used for electric power.
2.Widely used for building materials.
3.Widely used for metallurgy.
4.Widely used for mining.
5.Widely used for coal.

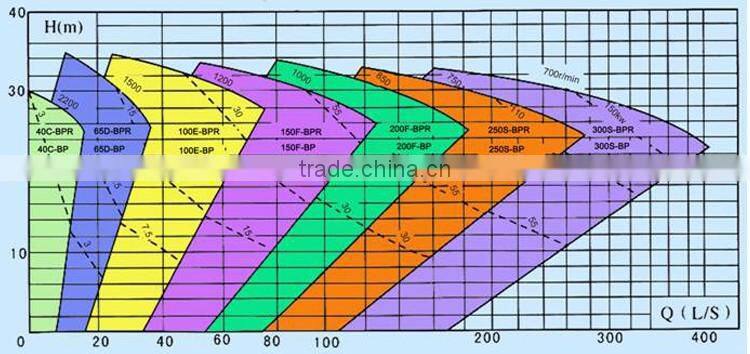

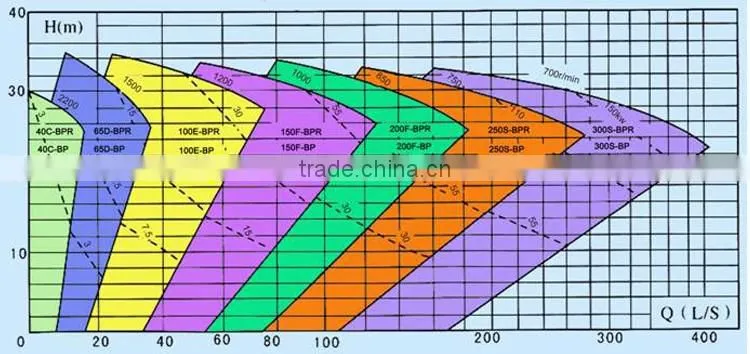

| Type | Material | Flow (m3/h) | Head (m) | Max Power (kw) | Speed (rpm) |
| 40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
| 65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
| 100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
| 150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
| 200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
| 250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
| 300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |

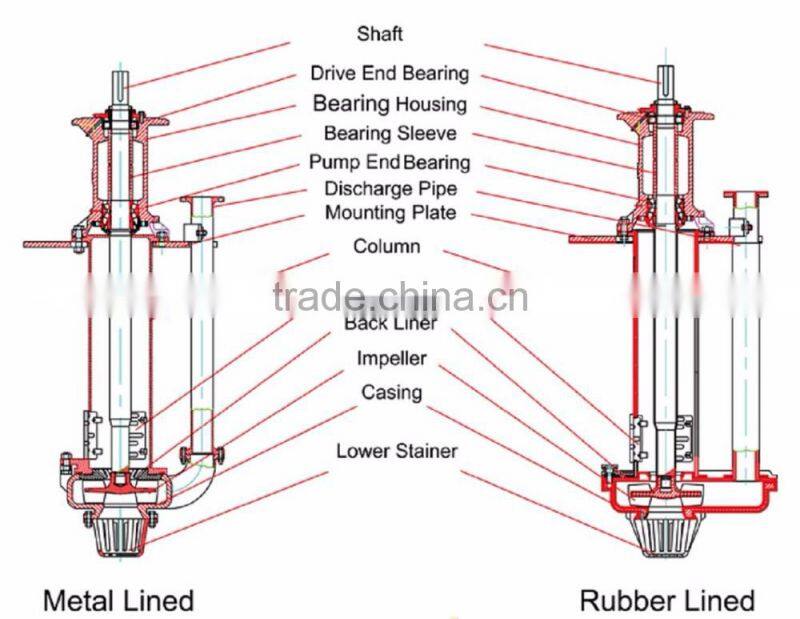

1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements
An Pump Machinery Company own main equipment introduction - Equipment advantages:
An Pump Machinery have sophisticated production equipment of slurry pump, sewage pump, water pump, chemical pump, fire pump, irrigation pump etc.
Casting workshop: Computer simulation molding and product application; precision casting aluminum mold; resin sand, coated sand casting technology. Three sets of casting medium frequency furnaces make a batch of clean, smooth casting products.
Casting technology advantages: 8 casting Engineers with more than 15 years experience, 28 operating technicians with more than 10 years experience.
Heat treatment workshop: 4 sets of fully automatic curve heat treatment furnace, controlled by computer, appropriately adjust heat treatment process.
Machining center: CNC vertical lathe, CNC wire-cut machine, CNC boring and milling machine, CNC grinding machines and other production line equipment constitute machining CNC centers, Processing precision of products fully meet the requirements.
Machining technology advantages: 15 Mechanical Engineers with more than 13 years experience, 32 operating technicians with more than 8 years working experience.
Assembly workshop: a variety of sophisticated assembly equipment and 4 operating technicians with 20 years working age and 11 operating technicians with more than 8 years working age,These experienced technicians assemble a batch of high precision and high stability of pump equipment.
Detection proofread: Using advanced detection equipment for the pump signal acquisition, digital filtering and calibration to ensure data accuracy and ensure highly consistent of three-dimensional animation simulation with the actual product.
Laboratory testing: bearing vibration analyzer, carbon and sulfur analyzer, universal testing machine, optical scales, spectrometers, liquid analyzers and other equipment constitute laboratory testing center, testing links control the material, material ratio, product hardness and processing precision practically and effectively.
These advanced manufacturing and testing equipment ensure the product quality with high precision and material stability of slurry pump, sewage pump, water pump, chemical pump, fire pump, irrigation pump. It is a powerful guarantee of quality and appearance of pumps and parts.
Quality Commitment: We pledge every order of An Pump Machinery with a detailed quality assurance, for your unworried, secure and relieved for using our products. We will do best to win your trust to An Pump!
| After Sale Service for Pump
Considering the importance of after sale services, An Pump Machinery offers a complete service as recommended spare parts list, maintenance catalogues, guarantee procedures, and other supports which customers need.
Regulations on the guarantee of pumps manufactured by An Pump Machinery An Pump Machinery Company emphasizes on basic standards and quality development of manufactured pumps, so all the manufactured pumps are guaranteed to be longest service life since the purchase. In order to facilitate the guarantee services for the pumps, An Pump Machinery will present the product’s identification containing the stamped guarantee card, together with regulations for the guarantee. To be aware of the conditions which cover the guarantee for the pumps, please refer to guarantee conditions page in the product’s identification. |
Manual to Install and Maintain
In order to support the products, An Pump Machinery has prepared the manual for installation and maintenance of different types of pumps.
Customers are recommended to study the manual carefully and consider all the points when installing, using and maintaining, in order to maximize the efficiency and the life of pumps.To see the content of the manuals, click on the respective group.
Pump Spare Parts
Standard spare parts of An Pump Machinery have been supplied in order to support the products with high quality parts. To see the technical number for pump parts, and the constituents of every category of pumps, plus the necessary spare parts for each pump. | |
