BP series electric submersible vertical sump pump
BP series electric submersible vertical sump pump detailed specification
1.Cantilevered shaft design
2.Double suction semi-open impeller
3.Agitator option keeps solids in suspension
4.models feature full rubber covering for corrosion resistance
5.Recessed impeller option passes oversized material
6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

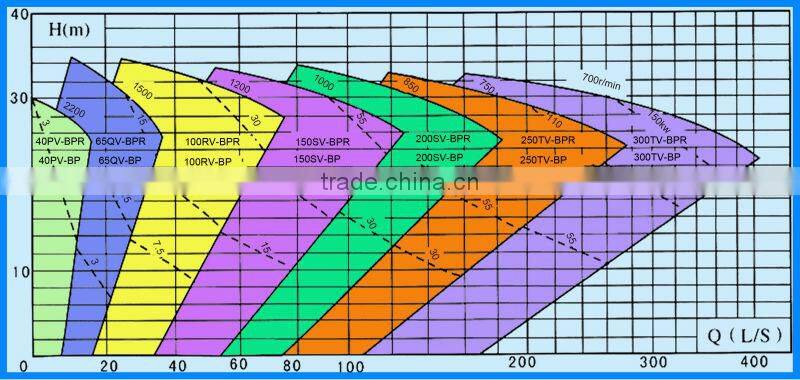

BP series electric submersible vertical sump pump Performance Chart
BP series electric submersible vertical sump pump parameter table
Type | Material | Flow | Head | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |
BP series electric submersible vertical sump pump structural drawing

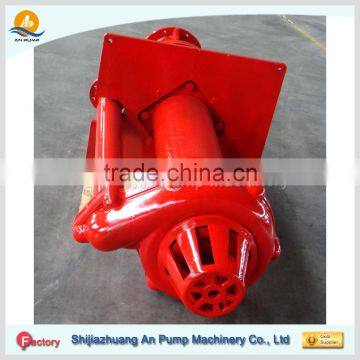

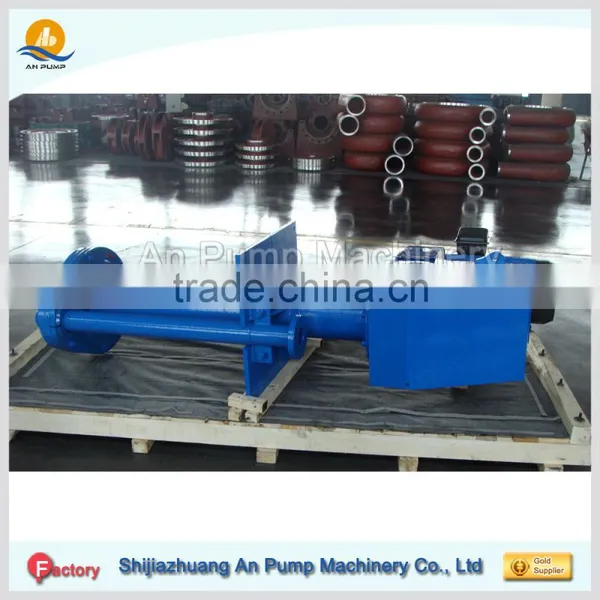

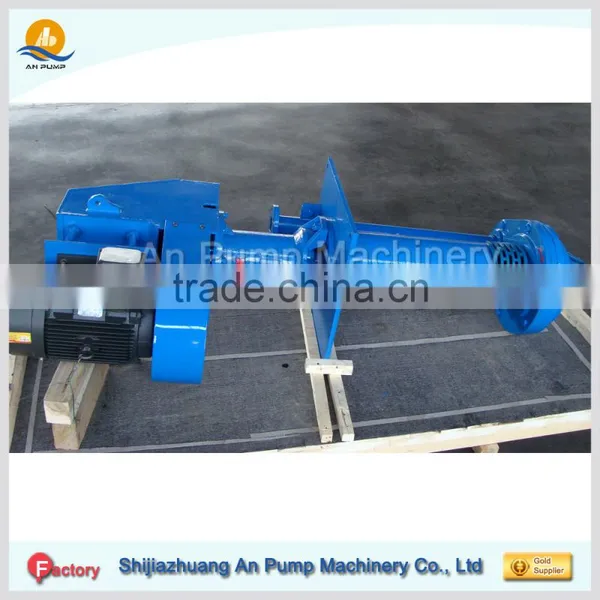

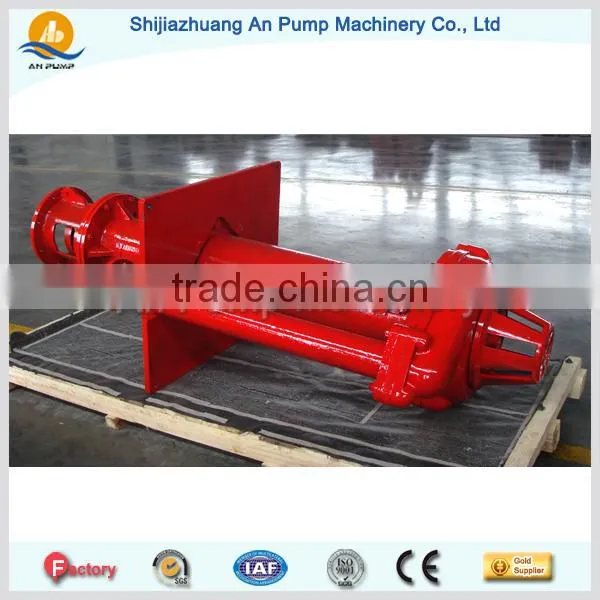

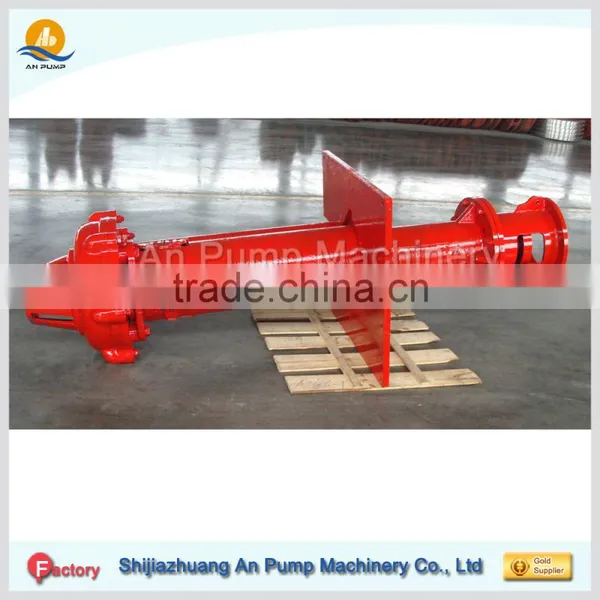

BP series electric submersible vertical sump pump show
BP series electric submersible vertical sump pump Spare Parts:
BP series electric submersible vertical sump pump application
This pump is suitable for metallurgy, mining, coal, power plants, building materials and general industrial applications that convey abrasive and high-concentration slurry.
This pump has been used very successfully for ash removal in power plants.
In the mine site pump station
Drainage slurry working condition
BP series electric submersible vertical sump pump packing
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is The material of your products?
A: The material is Cast Iron,SS,High Chrome or Rubber.
We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 15~20 QC.
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
some of our clients
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Learn more , please contact us directly.
