Vertical sump slurry pump for mining
Vertical sump slurry pump for mining application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Vertical sump slurry pump for mining introduction
BP(R) pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry.
Detailed specification
1.Cantilevered shaft design
2.Double suction semi-open impeller
3.Agitator option keeps solids in suspension
4.models feature full rubber covering for corrosion resistance
5.Recessed impeller option passes oversized material
6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Vertical sump slurry pump for mining parameter
Type | Material | Flow | Head | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |
Vertical sump slurry pump for mining curve
Vertical sump slurry pump for mining structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.

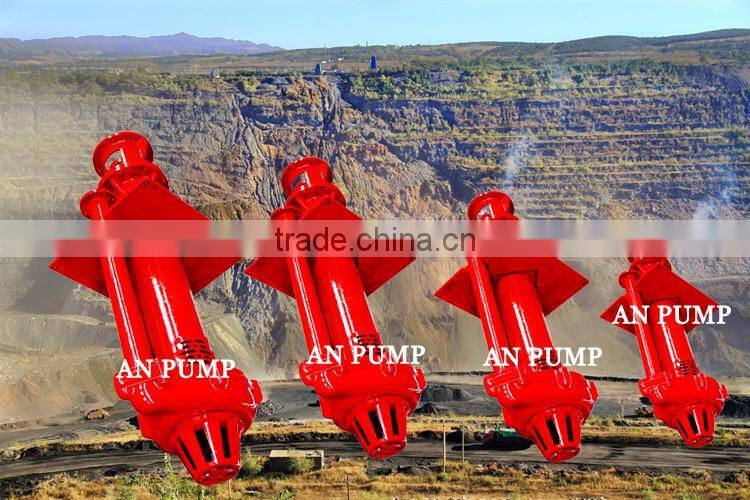

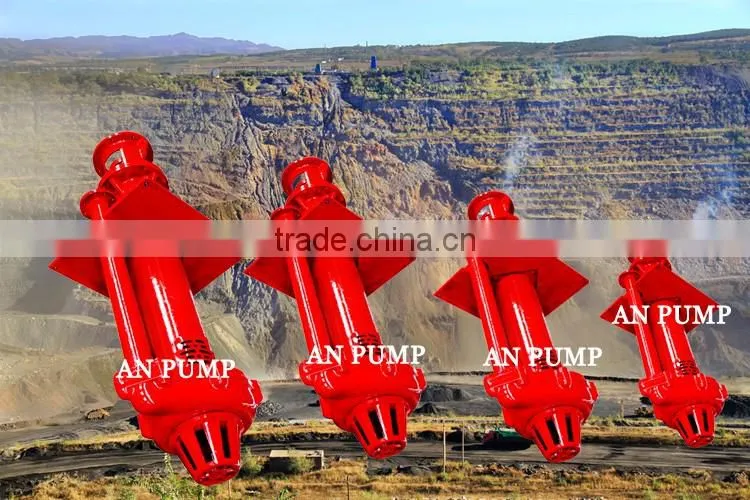

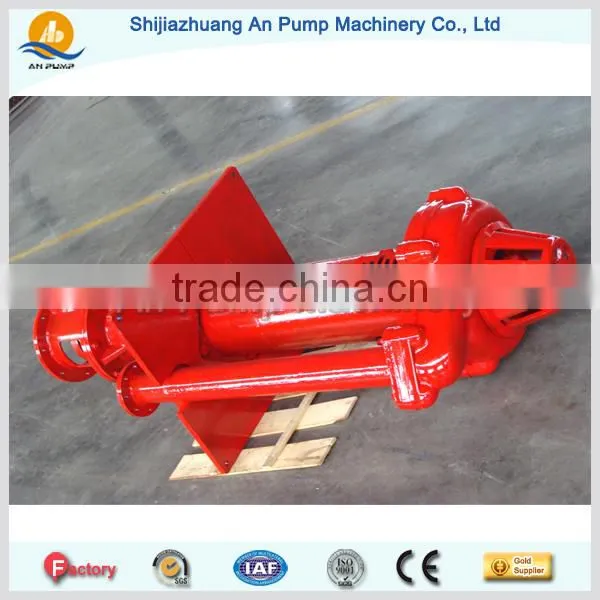

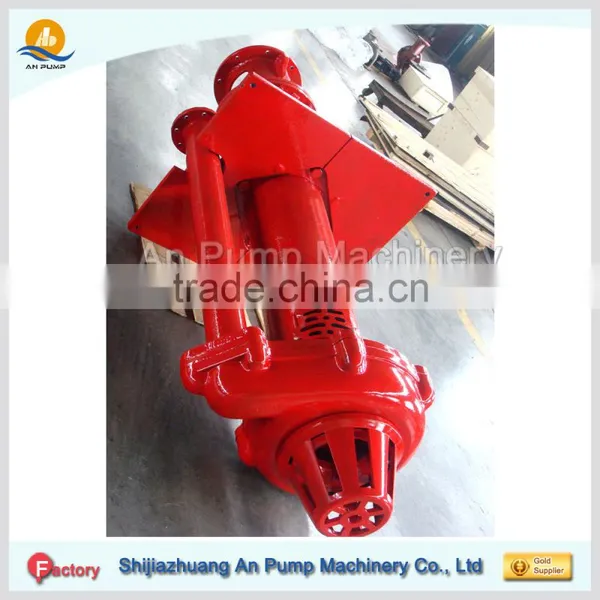

Vertical sump slurry pump for mining pictures
Vertical sump slurry pump for mining packing and shipping
