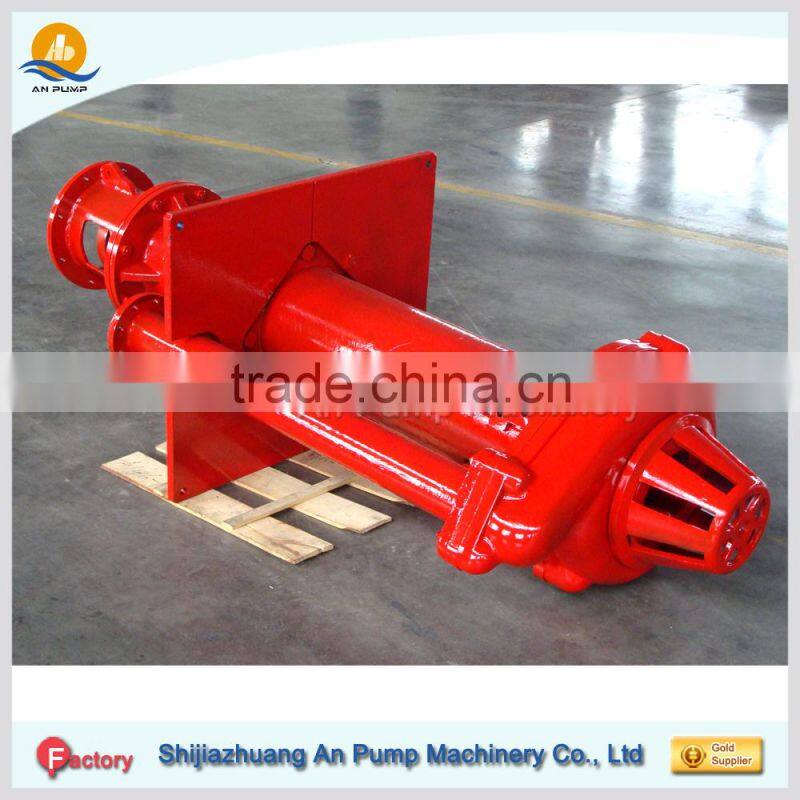

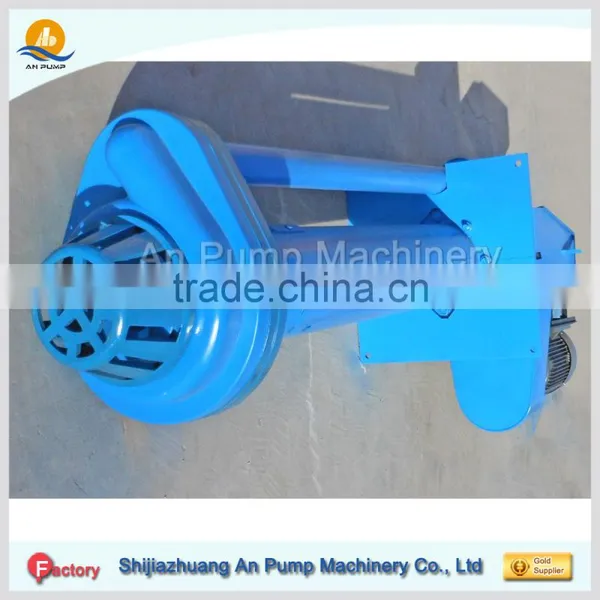

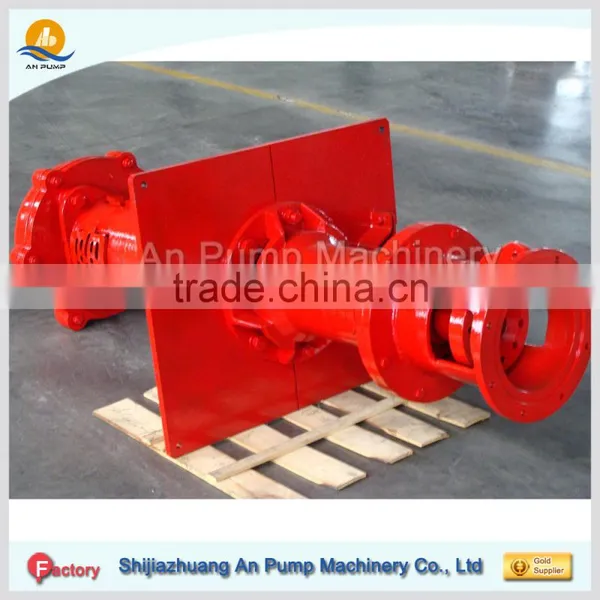

vertical submersible coal washing slurry pump

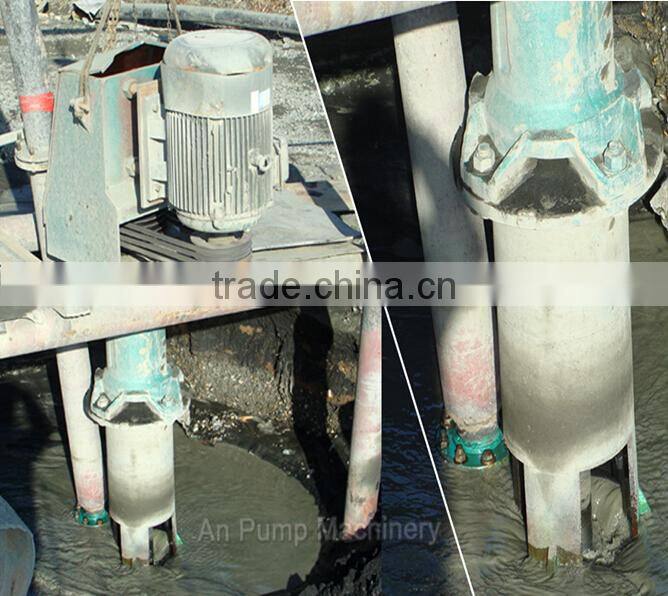

Applications of Submersible sump pump
The rugged BP,BPR Heavy Duty Sump Pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
• Minerals processing
• Coal preparation
• Chemical processing
• Effluent handling
• Sand and gravel and almost every other tank, pit or hole-in-the-ground slurry handling situation.
The BP/BPR design with either hard metal (BP) or elastomer covered (BPR) components makes it ideal for:
• Abrasive and/or corrosive slurries
• Large particle sizes
• High density slurries
• Continuous or “snore” operation
• Heavy duties demanding cantilever shafts
Feature of Submersible sump pump
Wetted components are available in a wide range of alloys and elastomers, from which An Pump Machinery selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application, including those demanding both abrasion and corrosion resistance and where larger particles or high density slurries are encountered.
• Abrasion resistant high Cr alloy.
• Abrasion/corrosion-resistant alloy.
• Corrosion-resistant stainless steels.
• Natural and synthetic elastomers.

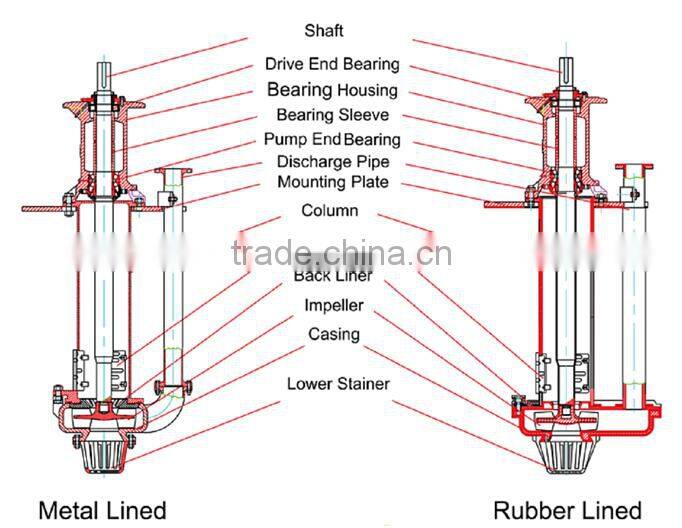

No submerged bearing failures
The robust cantilever shaft avoids the need for lower submerged bearings - which are often the source of premature bearing failure.
• Heavy duty roller bearings, above mountingplate.
• No submerged bearings.
• Labyrinth/flinger bearing protection.
• Rigid, large diameter shaft.
No shaft sealing problems
The vertical cantilever design requires no shaft seal.
No priming required
The top and bottom inlet design is ideally suited for “snore” conditions.
Less risk of blocking
The screened inlets and large impeller passages reduce the risk of blockages.
Zero ancillary water costs
The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.
Specifications of Submersible sump pump
Type | Material | Flow | Head (m) | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |

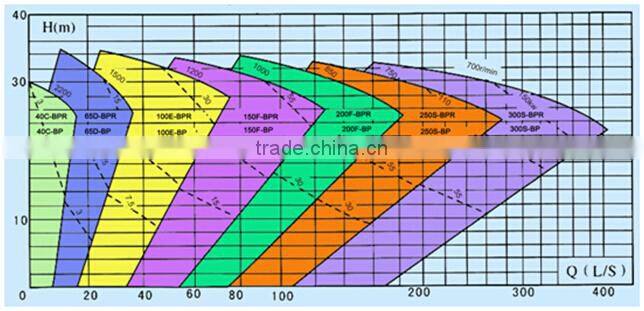

Performance curve of Submersible sump pump
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China,
produce with our own factory.

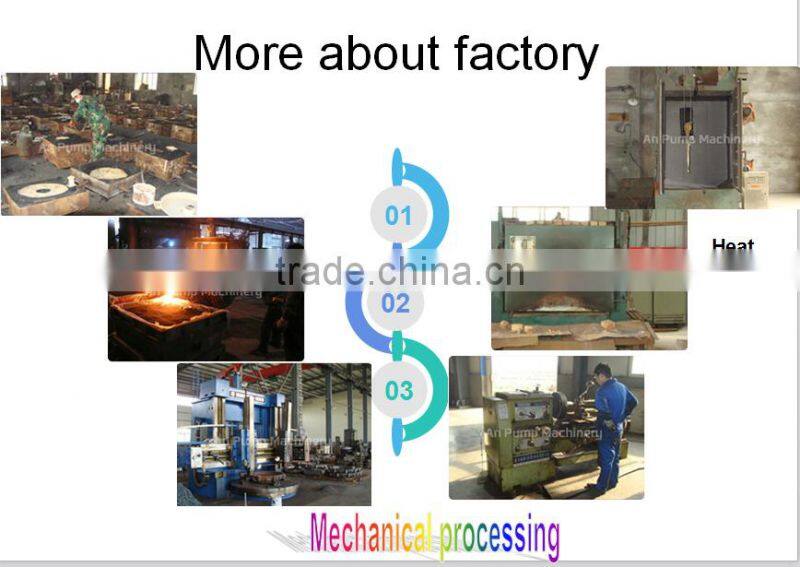

2. Q: What's your factory workshops ?
A: My factoryproduce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your vertical slurry pump price?
A: We are sure our price is factory price, and insist high quality for our long term cooperation.
4. Q: What is your vertical slurry pump material ?
A: For BP series vertical slurry pump, we produce high Cr Mo Ni alloy, rubber liner, cast iron, stainless steel, etc.
Produce as your requirements is ok.
5. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
6. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple,customers can change it very easily. We will also supply you maintenance tools for free.
7. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.
8. Q: Can you install the motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
9: Q: .We don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiil calculate & select most suitable pump model for you, offer pump solution for you.
10. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data,
performance curve, dimension etc.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive technology and reasonable staffing.
