Vertical noncorrosive sump submersible slurry pump
- 8000 Set / Sets per Month
- Xingang Port China
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | 100SP submersible slurry pump |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, mining, sewage, solid, slurry,sand |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Other, High Pressure centrifugal submerged pump | Application: | Other, Submersible, sewage, slurry, mining, dredging, mud, ash etc |
Product Description

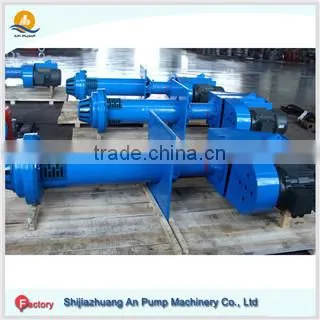

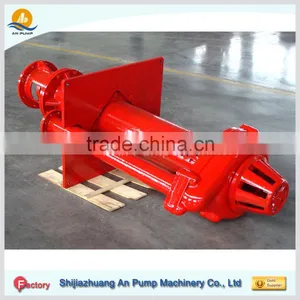

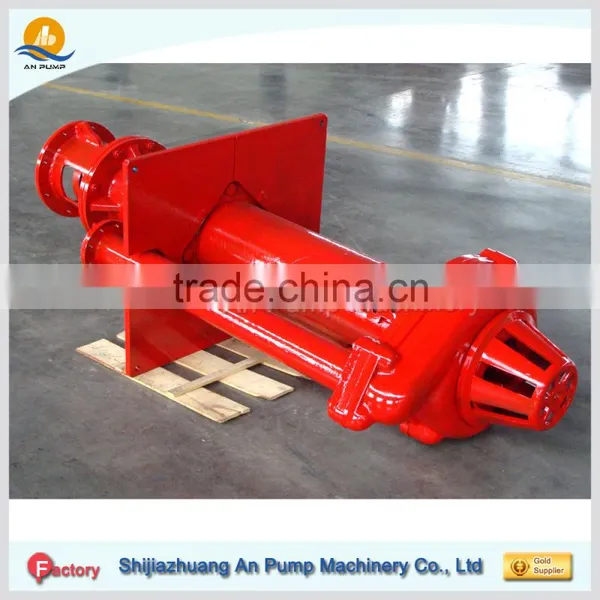

Vertical noncorrosive sump submersible slurry pump
Overview
Overview of Vertical noncorrosive sump submersible slurry pump
Submersible mining vertical sump cinder pump is cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.
Heavy duty cantilevered vertical slurry pump is designed for applications requiring vertical sump duties.
Fully elastomer lined or hard metal fitted.
No submerged bearings or packing.
Optional recessed impeller and suction agitator available.
This is the vertical instructure sump slurry pump, but same thoery with the horizontal pump.
Application
Application of Vertical noncorrosive sump submersible slurry pump:
Chinese heavy duty vertical sump cinder pump is mainly used for delivery the slurry which is strong corrosive with fine particles.
This kind of pump is widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
Typical Application:
1. Sewage water treatment
2. Farm irrigation
3. Flue gas desulfurization of thermal power plant.
4. Mine
5. Metallurgy
6. Municipal
7. Coal
8. Petroleum
9. Chemical
10. Building materials etc
Performance Data
Perfomance data for crude sludge pump :
Item | Data |
Capacity(Flow rate) (Q) | 17~1267m3/h 4.7~352L/S |
Head (H) | 4~40m |
Speed | 350~2200rpm |
Max Passed Particle Size | 65mm |
Slurry Density | 60% |
Slurry PH Rate: | 2~11 |
Performance Curve Chart
Operating performance curve chart can help the end user know much about all of the models of the vertical sump cinder pump.
Materials
Material of Vertical noncorrosive sump submersible slurry pump:
Vertical sump slurry pump wet end parts material list
Metal material | Rubber Material | ||
Item | Code | Item | Code |
Chrome alloy | Cr | Natural rubber | Ru |
Cast iron | - | Synthetic rubber
| Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
Grey iron | HT | ||
Ductile cast iron | QT | ||
Stainless Steel | SS304, SS306, SS316L | ||
Duplex stainless steel | CD-4MCu | ||
Bronze | - |
Construction:
Vertical noncorrosive sump submersible slurry pump
Feature
Key points of Vertical noncorrosive sump submersible slurry pump:
1. It do not need any Shaft seal and Shaft seal water,it is still workable without enough water.
2. It can be also work in working conditions of insufficient intake.
3. Long service life wearing parts
4. Large particle size to be delivered
5. Easy to maintain
6. Low cost operating
7. High reliability
Company
Shijiazhuang An Pump Machinery is the top manufacturer of the pump in China.
1. Offer vertical sump slurry pump solution design as working condition,
2. Offer Installation & ajustment in working condition,
3. Accept OEM
4. Select centrifugal vertical sump slurry pump & related equipement,
5. Sample available.
Slurry pump services details:
Service | Specification |
1. Slurry pump selection | Send us the slurry pump basic data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the slurry pump drawing |
3. Process design | Offer process design as slurry pump working condition. |

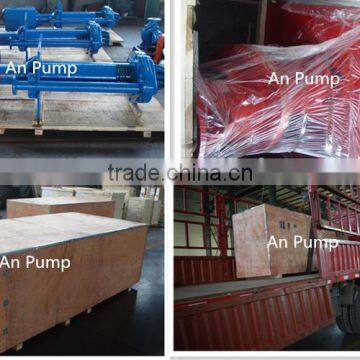

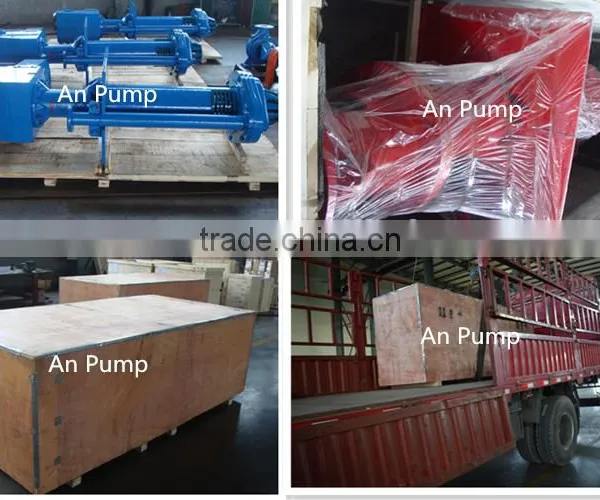

Packaging

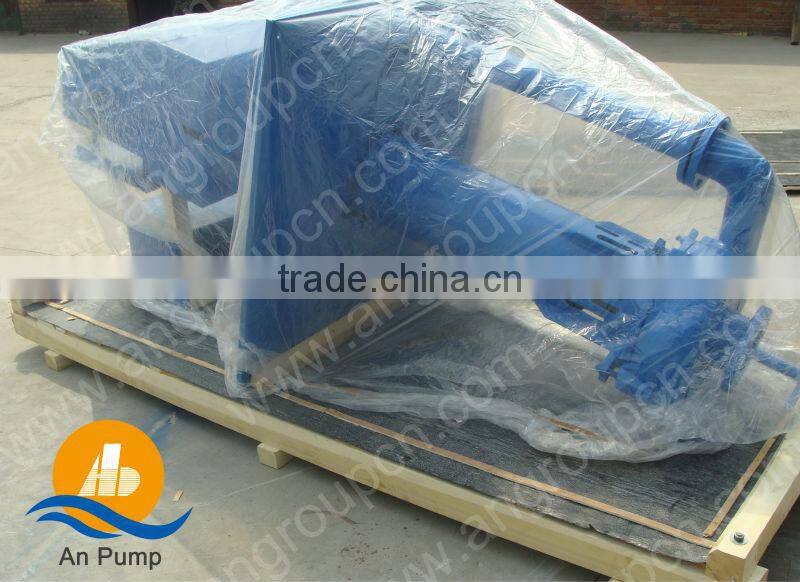

Fumigated wooden case packaging
Shipping
Verticals sump slurry pump shipping can arrange by sea, air or express.
1. How to get your price about the vertical sump slurry pump?
First, we must to make sure the model according your working condition, then the materials, shaft seal, painting and package specific need.
2. Is it avaliable to print our clients brand?
Totally accept as international rules.
3. How to connect you directly for the vertical sump cinder pump solutions?
Leave message below.
24x7 service for your Vertical noncorrosive sump submersible slurry pump:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
