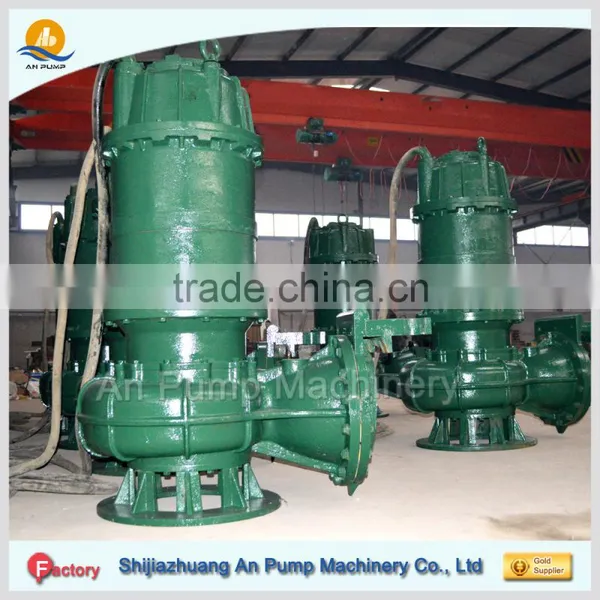

QSZ Single stage mining solid submersible centrifugal slurry pump
- 4000 Set / Sets per Month
- Tianjin shanghai shenzhen qingdao etc any port of China is ok
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | AM/R Single-stage centrifugal slurry pump |
Theory: | Other, Centrifugal Slurry Pump | Structure: | Other, Single Stage Submersible slurry Pump | Usage: | Other, transporting abrasive or / and corrosive slurry in mining, metallurgy, |
Power: | Other, Electric, 15 - 560 kw | Standard or Nonstandard: | Standard | Fuel: | Other, Electric submersible pump only not diesel and gasoline |
Pressure: | Other, slurry pump manufacturers sell | Application: | Other, slurry liquid, slage,sludge, sewage, solid liquid etc |
Product Description

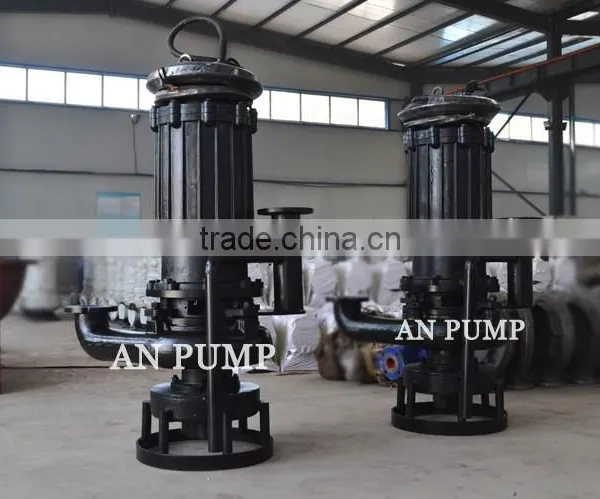

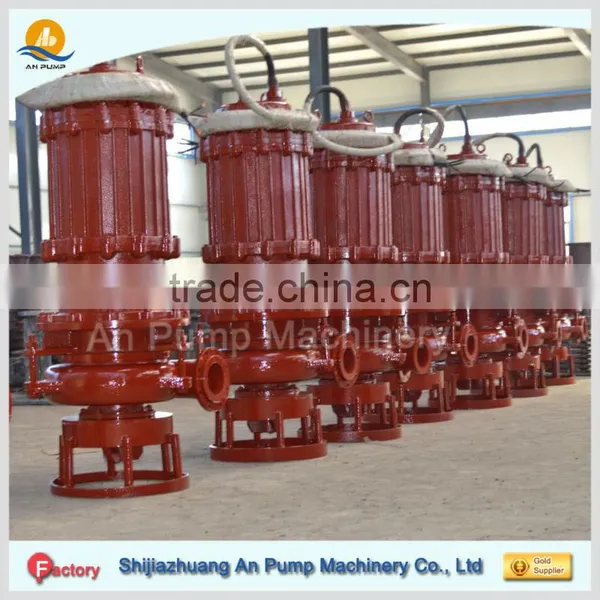

QSZ Single stage mining solid submersible centrifugal slurry pump
.
QSZ series submersible Slurry pump
1.QSZ series submersible sewage pump absorbs the advantages of the QSZ on the basis of similar products at home and abroad advanced technology and features , using the most excellent hydraulic model , special structures and materials , combined with sewage effluent most feature-complete "third generation " of new sewage pump , it s efficiency and performance are superior to similar products at home and abroad .
2.The pump has a high efficiency energy-saving , non-blocking , anti-winding , long life and other notable features can be installed with an automatic coupling device . And a common type , auto-mixing type , auto-shredding type , auto-mixing chopped-and anti-flushing-type five kinds of models .
3.According to market needs , the pump is divided into common type ( excluding the ultra-mild leakage protection device ) and full insurance-type two kinds . Full insurance-type submersible sewage pump must supporting the use of dedicated control cabinet to achieve the perfect results . <strong
QSZ series Submersible Slurry Pump Performance Parameters
No. | Model | Flow ( m3/h) | Head (m) | Power (KW) | Speed (r/min) | Max Particle size (mm) |
1 | QSZ30-30-7.5 | 30 | 30 | 7.5 | 1460 | 7 |
2 | QSZ50-26-11 | 50 | 26 | 11 | 1460 | 21 |
3 | QSZ100-18-11 | 100 | 18 | 11 | 1460 | 21 |
4 | QSZ150-15-15 | 150 | 15 | 15 | 1460 | 21 |
5 | QSZ150-22-22 | 150 | 22 | 22 | 980 | 44 |
6 | QSZ200-15-22 | 200 | 15 | 22 | 980 | 44 |
7 | QSZ240-20-30 | 240 | 20 | 30 | 980 | 25 |
8 | QSZ100-35-30 | 100 | 35 | 30 | 980 | 25 |
9 | QSZ150-30-30 | 150 | 30 | 30 | 980 | 28 |
10 | QSZ300-20-37 | 300 | 20 | 37 | 980 | 28 |
11 | QSZ100-50-37 | 100 | 50 | 37 | 980 | 25 |
12 | QSZ200-30-45 | 200 | 30 | 45 | 980 | 25 |
13 | QSZ150-45-55 | 150 | 45 | 55 | 980 | 21 |
14 | QSZ250-35-55 | 250 | 35 | 55 | 980 | 35 |
15 | QSZ600-15-55 | 600 | 15 | 55 | 980 | 45 |
16 | QSZ350-35-75 | 350 | 35 | 75 | 980 | 28 |
17 | QSZ200-55-75 | 200 | 55 | 75 | 980 | 45 |
18 | QSZ450-30-90 | 450 | 30 | 90 | 980 | 28 |
19 | QSZ480-37-110 | 480 | 37 | 110 | 980 | 31 |
20 | QSZ1000-18-110 | 1000 | 18 | 110 | 980 | 45 |
21 | QSZ500-50-132 | 500 | 50 | 132 | 980 | 28 |
22 | QSZ1000-22-132 | 1000 | 22 | 132 | 980 | 45 |

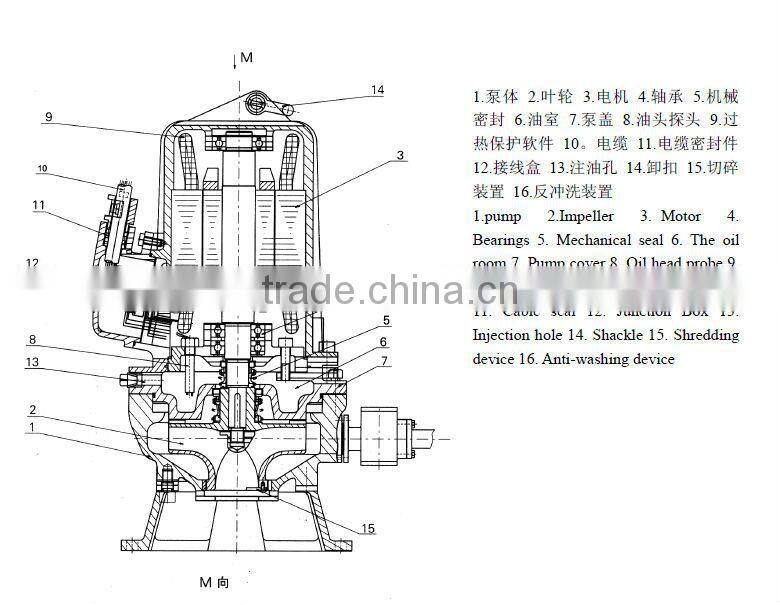

QSZ Submersible Slurry Pump Constructure

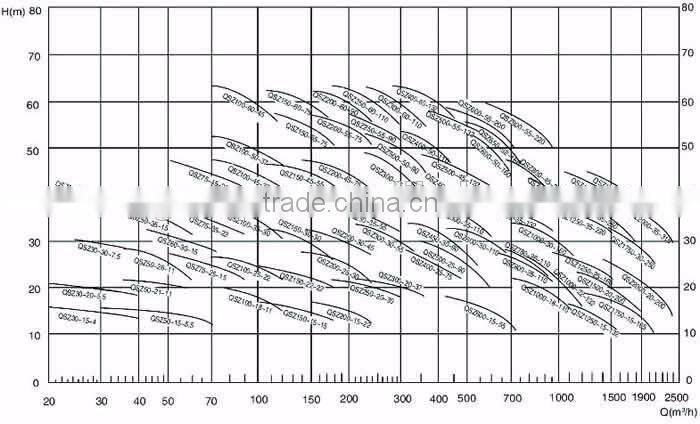

QSZ Submersible Slurry Pump Performance Curve

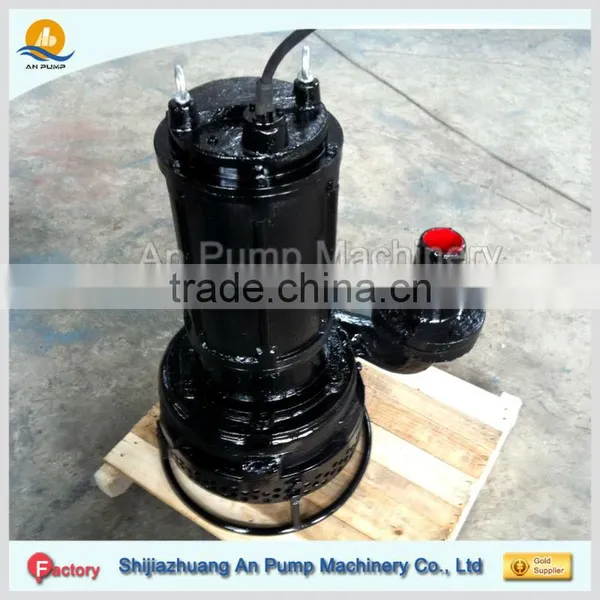

Standard wooden case packing of submersible slurry pump
Your 24x7 manufacturer team and service for Single stage mining solid submersible centrifugal slurry pump:
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
An Pump Machinery is your Best Submersible Slurry Pump Manufacturer
An Pump Machinery Co. ,Ltd is the centrifugal slurry pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Single stage slurry pump Manufacturer
An Pump Machinery is also CE cerficated Submersible slurry pump Manufacturer
24x7 service for your Single stage mining solid submersible centrifugal slurry pump:
