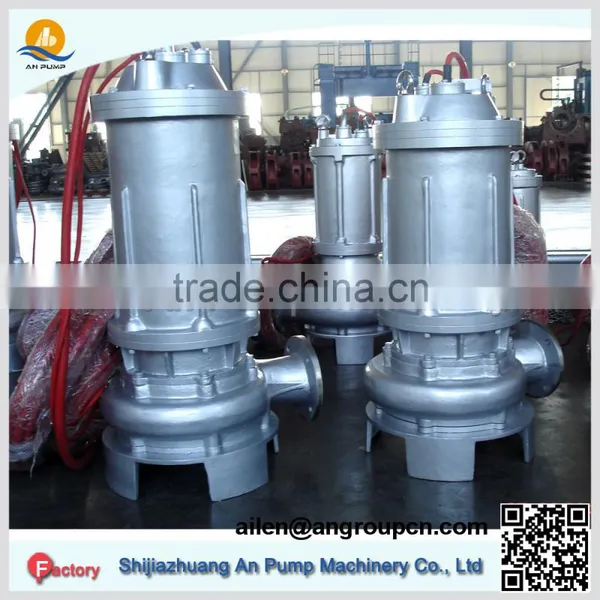

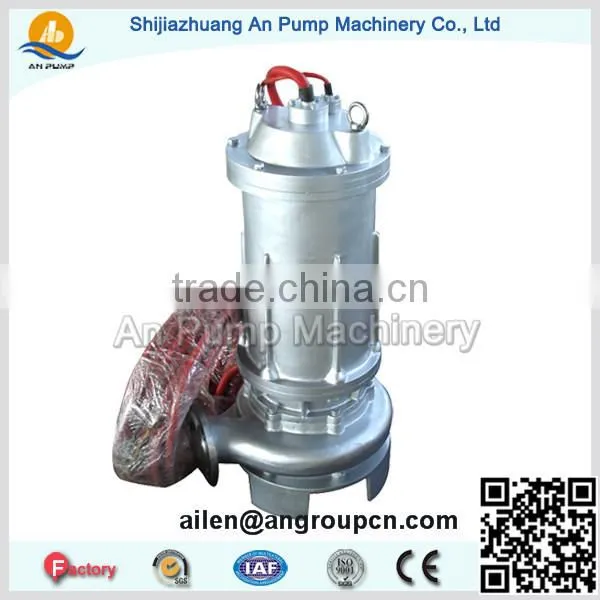

Submersible Slurry Pump Exporter Supplier
vertical slurry pump Application
Submersible Slurry Pump Application :
Chinese heavy duty Submersible Slurry Pump is mainly used for delivery the slurry which is strong corrosive with fine particles.
This kind of pump is widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
vertical slurry pump Overview
General Overview for Submersible Slurry Pump

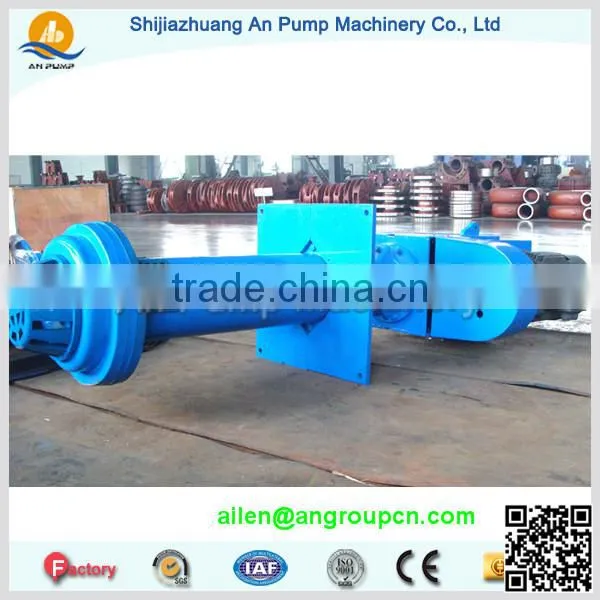

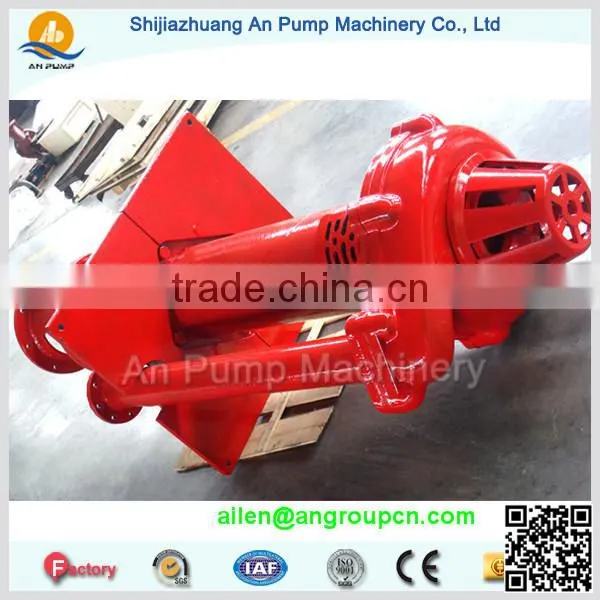

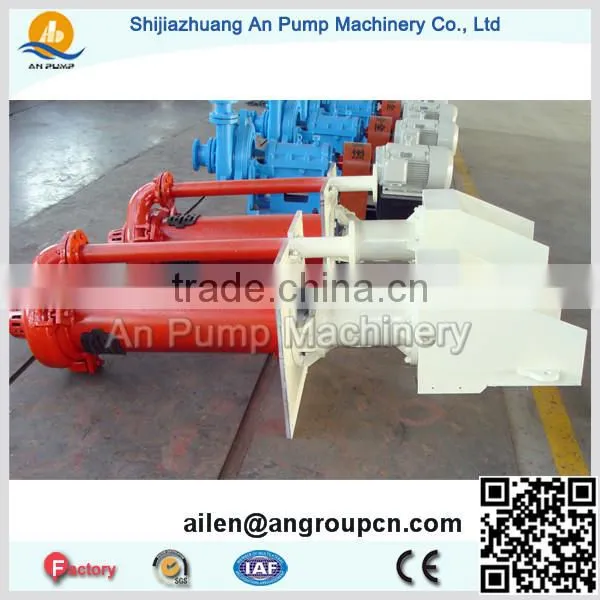

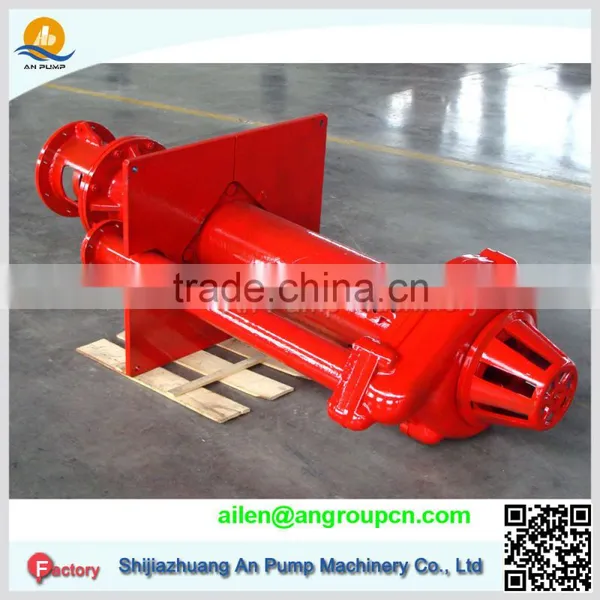

Submersible mineral Submersible mineral vertical slurry pump, vertical sump slurry pump is cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.
Heavy duty cantilevered vertical Submersible Slurry Pump is designed for applications requiring vertical sump duties.
Fully elastomer lined or hard metal fitted.
No submerged bearings or packing.
Optional recessed impeller and suction agitator available.
This is the vertical instructure vertical Submersible Slurry Pump, but same thoery with the horizontal pump.
vertical slurry pump Performance Data
Performance Data sheet for Submersible Slurry Pump
| Item | Data |
| Capacity(Flow rate) (Q) | 17~1267m3/h 4.7~352L/S |
| Head (H) | 4~40m |
| Speed | 350~2200rpm |
| Max Passed Particle Size | 65mm |
| Slurry Density | 60% |
| Slurry PH Rate: | 2~11 |
vertical slurry pump Performance Curve Chart
Performance curve chart for Submersible Slurry Pump
Operating performance curve chart can help the end user know much about all of the models of Submersible mineral vertical slurry pump vertical sump slurry pump
vertical slurry pump Materials
Submersible Slurry Pum wet end parts material list
Metal material | Rubber Material | ||
Item | Code | Item | Code |
Chrome alloy | Cr | Natural rubber | Ru |
Cast iron | - | Synthetic rubber
| Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |
Grey iron | HT | ||
Ductile cast iron | QT | ||
Stainless Steel | SS304, SS306, SS316L | ||
Duplex stainless steel | CD-4MCu | ||
Bronze | - | ||
vertical slurry pump Construction
Construction of Submersible Slurry Pump
vertical slurry pump Feature
Key points of Submersible Slurry Pump
It do not need any Shaft seal and Shaft seal water,it is still workable without enough water.
Company
Shijiazhuang An Pump Machinery is the top manufacturer of the pump in China.
1. Offer Submersible mineral vertical slurry pump vertical sump slurry pump solution design as working condition,
2. Offer Installation & ajustment in working condition,
3. Accept OEM
4. Select centrifugal vertical Submersible Slurry Pump & related equipement,
5. Sample available.
Slurry pump services details:
Service | Specification |
1. Slurry pump selection | Send us the vertical Submersible Slurry Pump basic data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the slurry pump drawing |
3. Process design | Offer process design as slurry pump working condition. |
vertical slurry pump packaging
Furmigated wooden case packaging for Submersible Slurry Pump
Shipping
Submersible Slurry Pum shipping can arrange by sea, air or express.
1. Other suggested products except Submersible Slurry Pump?
| Sand gravel pump | Horizontal slurry pump | Submersible slurry pump |
| | |
2. How to get your price about the vertical slurry pump?
First, we must to make sure the model according your working condition, then the materials, shaft seal, painting and package specific need.
3. Is it avaliable to print our clients brand?
Totally accept as international rules.
4. How to connect you directly for the vertical Submersible Slurry Pumpsolutions?
Leave message below.
