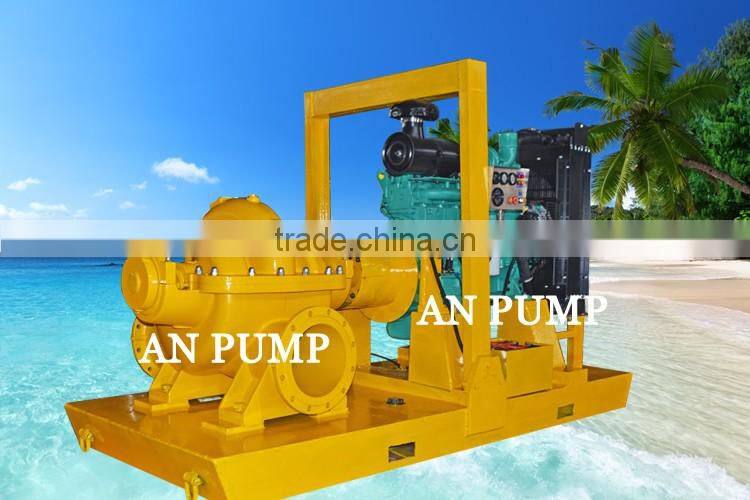

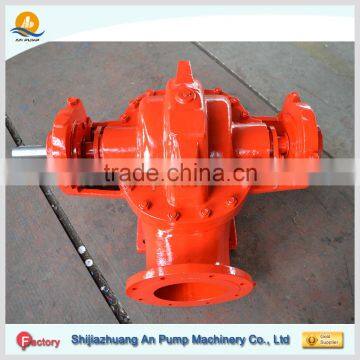

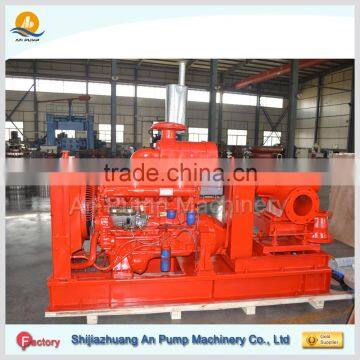

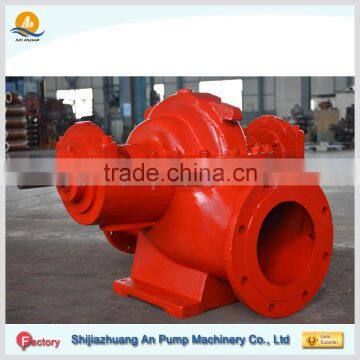

Diesel horizontal centrifugal split case water pump
Diesel horizontal centrifugal split case water pump introduction
Model QS pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 125 , suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects. This series pump comply with the standards of GB/T3 216 and GB/T5657.
Specification
Capacity: 5280~84000m3/h, |
Head: 12~120m |
Industrial pump |
clean water pump |
Diesel horizontal centrifugal split case water pump material
1.Pump casing made of gray cast iron, ductile iron or cast steel. |
2.Impeller made of gray cast iron, silicon brass or stainless steel. |
3.Spindle in stainless steel or high carbon steel. |
4.Other materials can be used upon requirement. |
Technological Advantages
1. Bearing spacing between both ends is short, pump running stable, low vibration noise, and can increases the speed of running properly, to adapt to a wider range of performance.
2. Inlet and outlet at the same line, so that the pipeline layout is simple and convenient, beautiful.
3. The rotation of the same rotor can be reversed, reducing the risk of damage caused by the water hammer.
4. Unique design of high temperature, use of intermediate support, thick body, sealed cooling, bearing lubrication, so that the pump can run up to 200 ºC occasions, especially for heating network requirements.
5. Pump can be vertical or horizontal installed according to using conditions, seal can be mechanical seal or packing seal.
Diesel horizontal centrifugal split case water pump parameter
Diesel horizontal centrifugal split case water pump curve
Diesel horizontal centrifugal split case water pump structure
Diesel horizontal centrifugal split case water pump application
Diesel horizontal centrifugal split case water pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
