Abrasion Resistant Double Suction Pump
Specifications:
1,Capacity: 65 - 11600 m3/h,
2,Head: 7~200m
3,Industrial pump
4,clean water pump
Product Overview:
QSH, QS Single-stage double suction centrifugal pumps for distribution of water and chemical substances with characteristicssimilar to that of liquid water. A medium temperature of 120 ° C. Ability to Change the seal ring, bushings and the impeller if the material contains sediment as in the case of “muddy” water.
Pump seals most commonly used are soft filler seal. However, in cases of special requirements
can be modified to mechanical seals, from the point of view of the electrical pump,
Split Casing Pump Structure:
Split case pump performance parameters
Split Casing Pump Function:
Split Casing Pump Material:
1. Pump Casing and Cover : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , gland packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
7. Wearing Ring: Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu

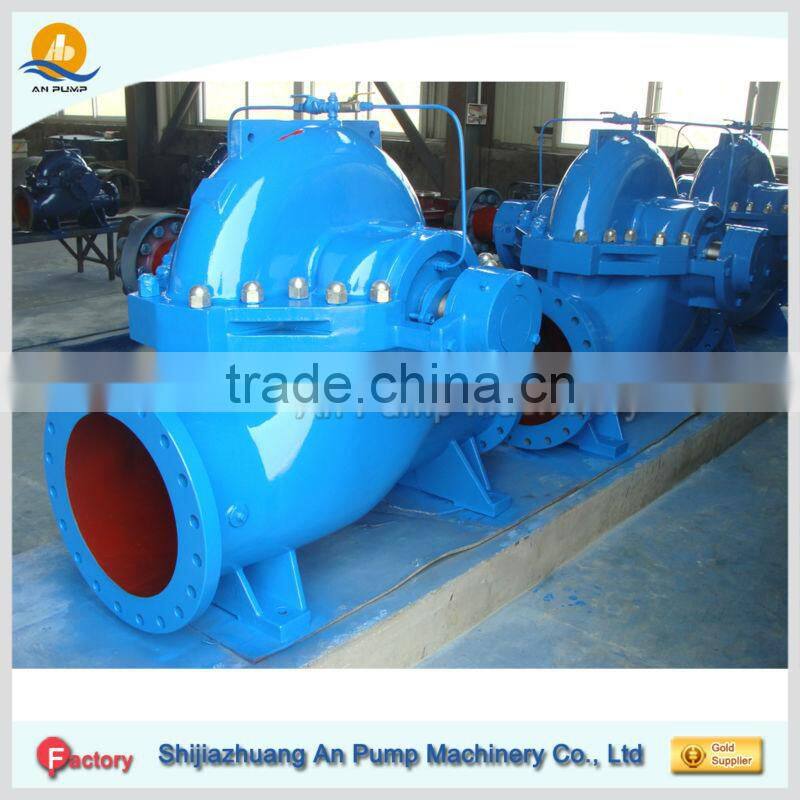

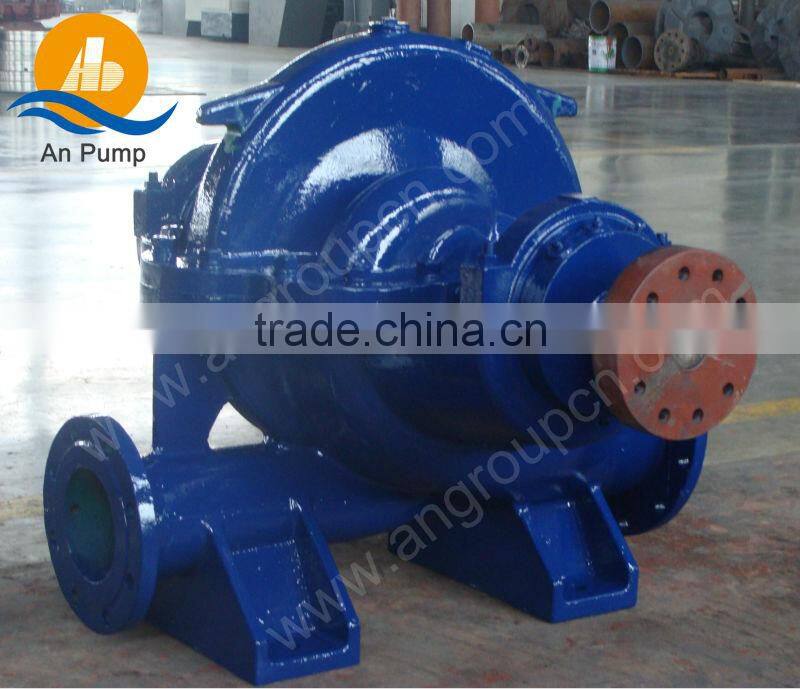

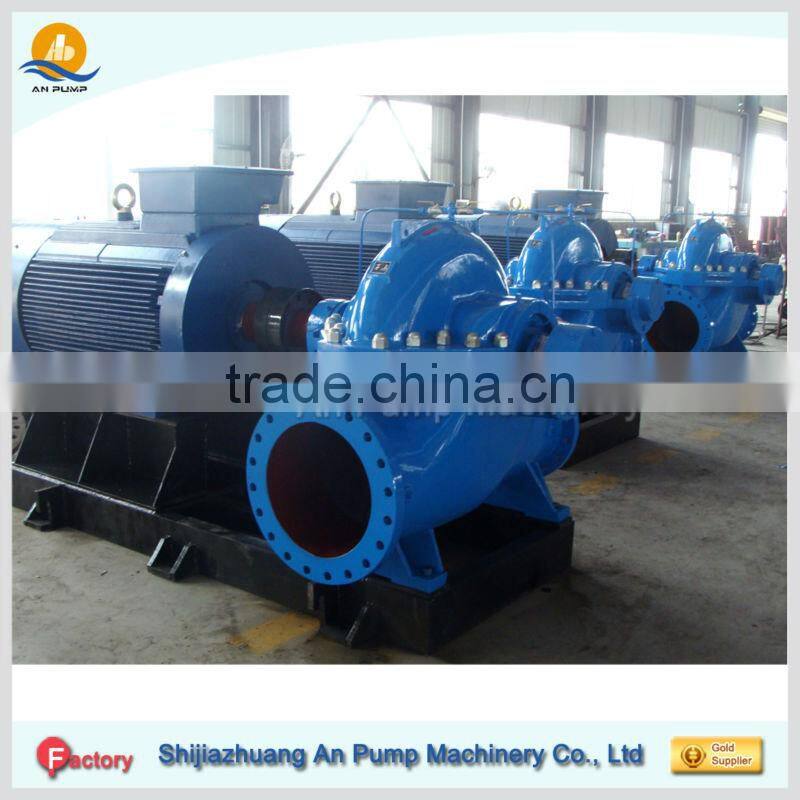

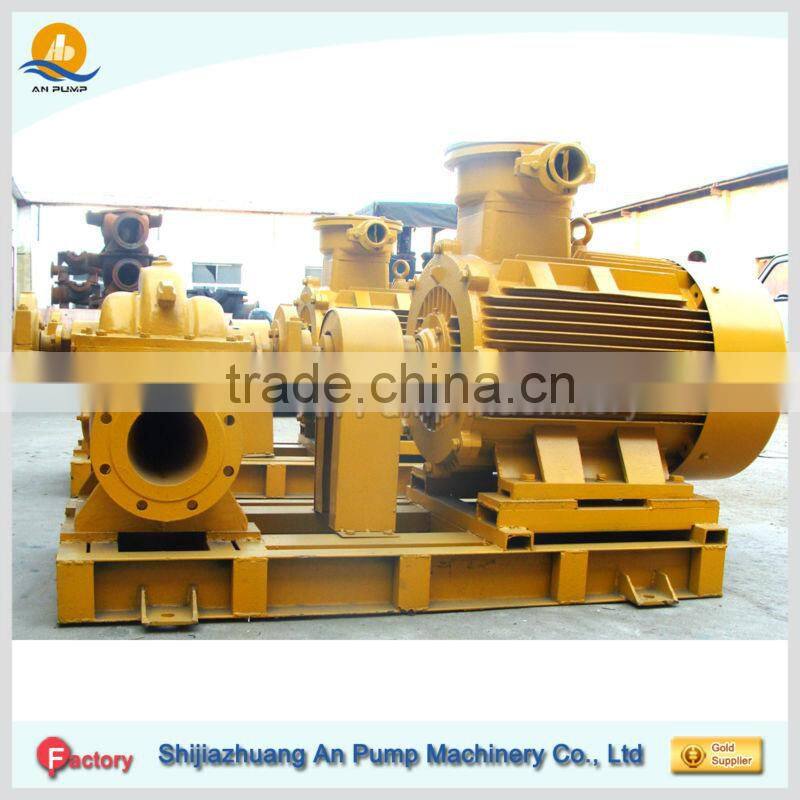

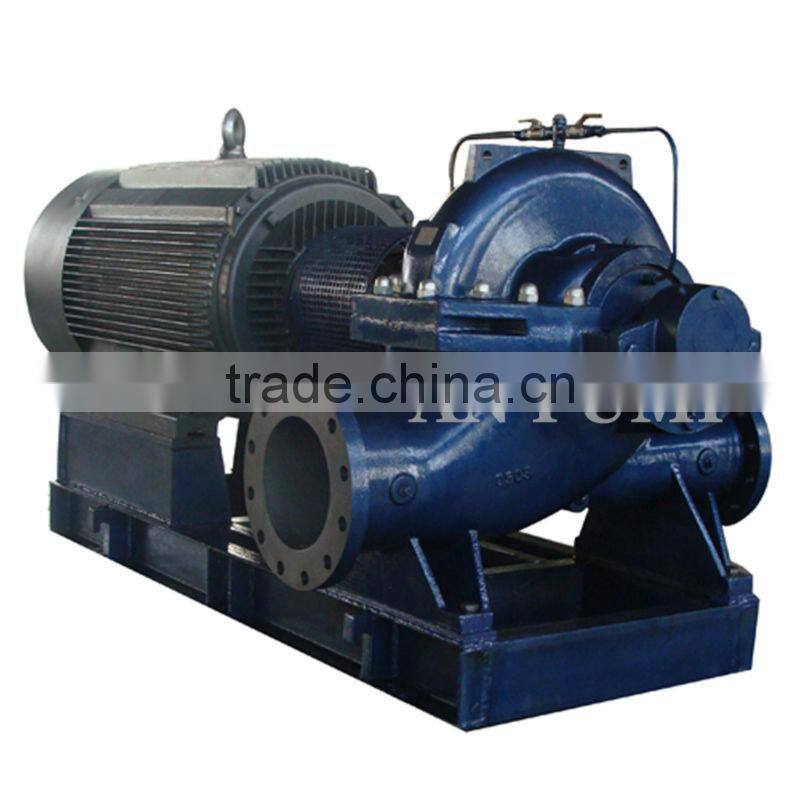

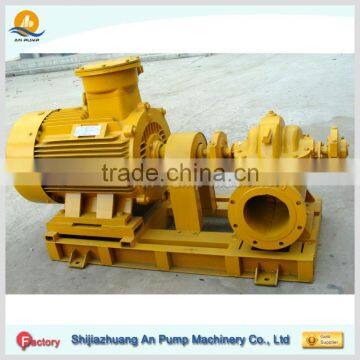

Split Case Pump Product Show:
