Agriculture Irrigation Centrifugal Water Pump

Shijiazhuang An Pump Machinery Co., Ltd.
Agriculture Irrigation Centrifugal Water Pump thumbnail-1
Agriculture Irrigation Centrifugal Water Pump photo-1
US$ 200 - 6,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
QS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin or other seaports in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name An Pump
Model Number QS
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Other, slurry,sand and gravel,mine,river
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, mine,coal,metallurgy,sewage etc



Product Description



Shijiazhuang An Pump Machinery Co., Ltd



The main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers



Split Casing Pump Description --   large water pumps



Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .



The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .



Split casing pump features



1. Large flow rate
2. Operation stability
3. Double-volute structure
4. Resonable price
5. OEM available





Split casing pump performance parameters



TypeFlow(m3/h)Head(m)Speed(rpm)Power(KW)
QS150112--22035--84290030--55
QS200160--35131--100290037--110
QS250324--6128.6--65.1145022--132
QS300504--16638.7--1401450--147022--680
QS350745--157010--1251450--147055--630
QS400900--162032--85.5980--1480440--500
QS5001150--380010.6--108740--970110--800
QS6002300--400013--80730--970145--730
QS7002111--489639.5--99.5742--980397--1252
QS8003960--687823--84600--750450--1600
QS10006600--990032--526001250
QS12005832--144006--95.7500--745710--3450





Split casing pump performcance curve





Split casing pump constructure



Large flow water pump show

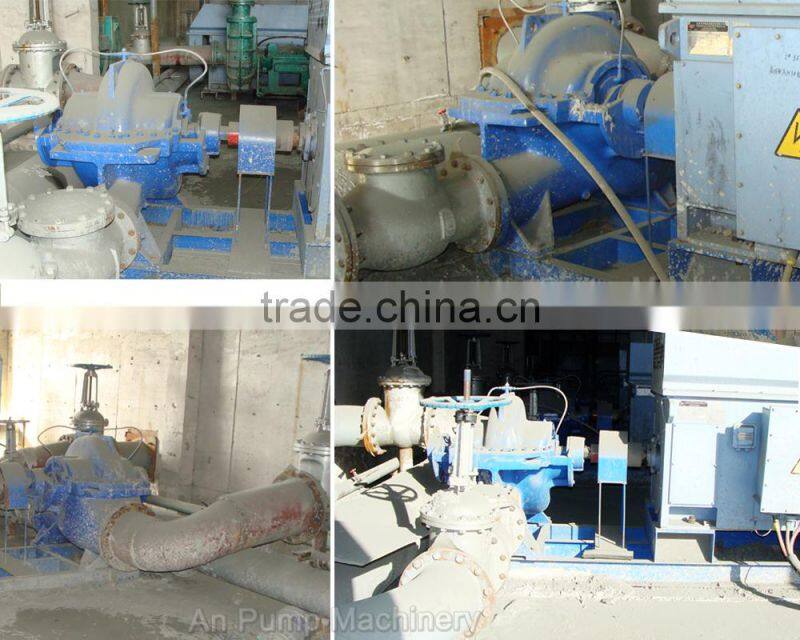

Split casing pumps on site application





Industry

Plumbing Applications

General water supply

Circulation of HVAC building systems , water booster service ,

boiler feed , general circulation service and more .

Agriculture / Food / Beverage

Irrigation , water supply , food processing , beverage processing

 , fertilizers .

Manufacturing

Pulp and paper fans , plastic & rubber , metal & steel ,

pharmaceutical , paper mills , air wash , marine ballast service .

Fire / Disaster Relief

Fire pumps , fire protection , flood control , disaster relief ,

federal / military .

Utilities : Water / Wastewater

Power Generation stations , dewatering , desalination ,

energy recovery turbines

Chemical / Mining

Chemical plants , refineries , petroleum distribution , coal sites ,

ethylene glycol pumping .



FAQ



 QS PUMP IN GOOD OPERATION



Agriculture Irrigation centrifugal Water Pump
