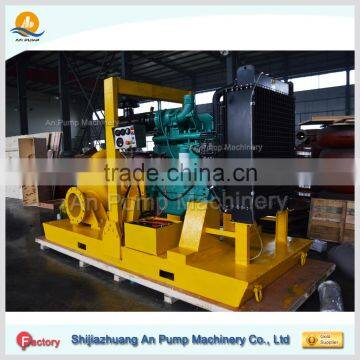

Centrifugal diesel agricultural irrigation water pump
QS, QSH QS Type high flow Centrifugal Irrigation Water Pump (double-suction pump)
Description: QS, QSH series pump one of the main characters is large flow rate. It can reach 110m3/h—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physico-chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
What is the Centrifugal diesel agricultural irrigation water pump Performance ?
Type | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (Nm) | Efficiency η(%) |
QS150 | 112-220 | 35-84 | 2900 | 30-55 | 68-80 |
QS200 | 160-351 | 31-100 | 2900 | 37-110 | 61-85 |
QS250 | 324-612 | 8.6-65.1 | 1450 | 22-132 | 72-86 |
QS300 | 504-1663 | 8.7-140 | 1450-1470 | 22-680 | 70-87 |
QS350 | 745-1570 | 10-125 | 1450-1470 | 55-630 | 70-88 |
QS400 | 900-1620 | 32-85.5 | 980-1480 | 440-500 | 71.5-84 |
QS500 | 1150-3800 | 10.6-108 | 740-970 | 110-800 | 70-89 |
QS600 | 2300-4000 | 13-80 | 730-970 | 145-730 | 70-91 |
QS700 | 2111-4896 | 39.5-99.5 | 742-980 | 397-1252 | 52-92 |
QS800 | 3960-688 | 23-84 | 600-750 | 450-1600 | 77-92 |
QS1000 | 6600-9900 | 32-52 | 600 | 1250 | 79-88 |
QS1200 | 5832-14400 | 6-95.7 | 500-745 | 710-3450 | 80-90 |
Detail performance and technical information please send email below for more!
What is the Centrifugal diesel agricultural irrigation water pump Applications?
- Agriculture water supply
- Agriculture irrigation water feed
- Circulating Water Systems
- Fire Fighting
- Irrigation
- Paper Mills
- Pharmaceuticals
- Ports & Docks
- Sugar Mills
- Vegetable Oil Mills
- Water / Effluent Treatment
- Sea/river Water delivery

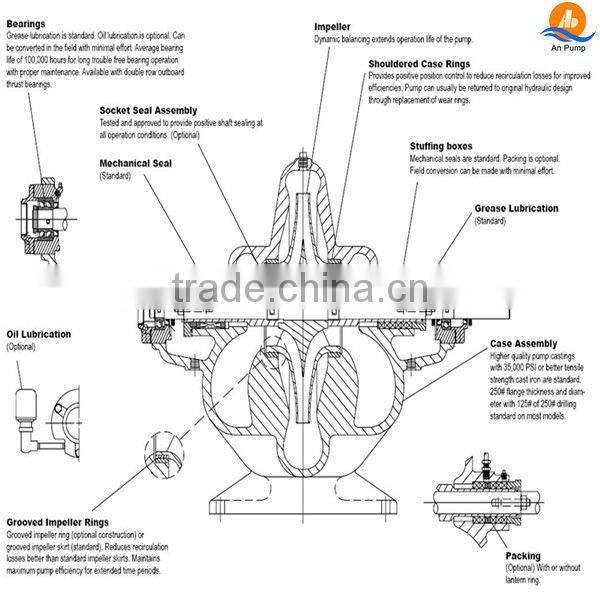

What is the Centrifugal diesel agricultural irrigation water pump Structure?
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
