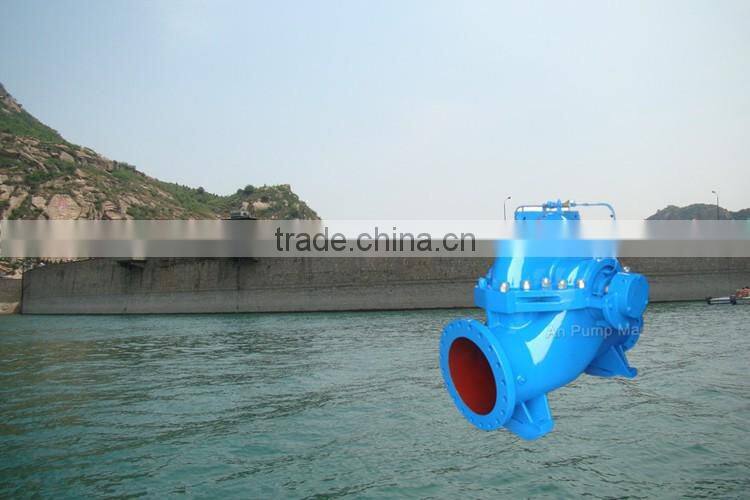

Horizontal Split Case Centrifugal Pump with foot valve
Horizontal Split Case Centrifugal Pump
Type QS Horizontal Split Case Centrifugal Pump/Split Case Pump/Split Casing Pump is single-stage double-suction horizontal centrifugal pump with horizontal split casing.It is provided for delivering clear water without solid particles or other liquid which is physically and chemically similar to clear water.The temperature of the liquid is 0°c~80°c.It is widely used in fields of factories,mines,municipal water supply,power stations,agriculture irrigation and water conservancy.Permissible maximum inlet pressure is 0.6MPa.
Performance range
Capacity Q:112~10800m3/h
Head H:8.5~140m
Horizontal Split Case Centrifugal Pump Description
For example 300QS--19A
300--Inlet diameter is 300mm.
QS--Single-stage double-suction centrifugal pump with horizontal split casing.
19--Head at design point(m)
A-- outer diameter of impeller cut time.
Horizontal Split Case Centrifugal Pump direction of rotation
The rotation of the pump rotor is clockwise looking from the driver to the pump,i.e.the inlet is on the right and the outlet is on the left.It is also counter clockwise according to customers' requirement.
Horizontal Split Case Centrifugal Pump material of main parts
The medium-contacting parts are made of cast iron or changable stainless steel, bronze, duplex stainless steel etc.
Horizontal Split Case Centrifugal Pump Complete provision range
Pump,motor,bedplate,coupling,inlet short pipe and outlet short pipe.Common bedplate will be supplied when inlet diameter is less than 200mm.
What is the Horizontal Split Case Centrifugal Pump Performance ?
Type | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (Nm) | Efficiency η(%) |
QS150 | 112-220 | 35-84 | 2900 | 30-55 | 68-80 |
QS200 | 160-351 | 31-100 | 2900 | 37-110 | 61-85 |
QS250 | 324-612 | 8.6-65.1 | 1450 | 22-132 | 72-86 |
QS300 | 504-1663 | 8.7-140 | 1450-1470 | 22-680 | 70-87 |
QS350 | 745-1570 | 10-125 | 1450-1470 | 55-630 | 70-88 |
QS400 | 900-1620 | 32-85.5 | 980-1480 | 440-500 | 71.5-84 |
QS500 | 1150-3800 | 10.6-108 | 740-970 | 110-800 | 70-89 |
QS600 | 2300-4000 | 13-80 | 730-970 | 145-730 | 70-91 |
QS700 | 2111-4896 | 39.5-99.5 | 742-980 | 397-1252 | 52-92 |
QS800 | 3960-688 | 23-84 | 600-750 | 450-1600 | 77-92 |
QS1000 | 6600-9900 | 32-52 | 600 | 1250 | 79-88 |
QS1200 | 5832-14400 | 6-95.7 | 500-745 | 710-3450 | 80-90 |
Detail performance and technical information please send email below for more!

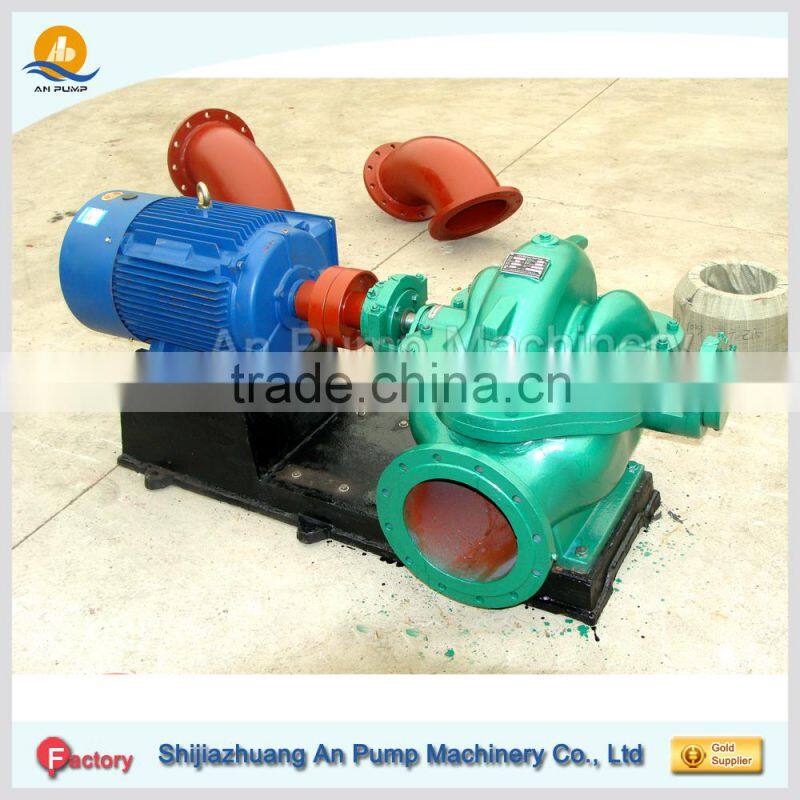

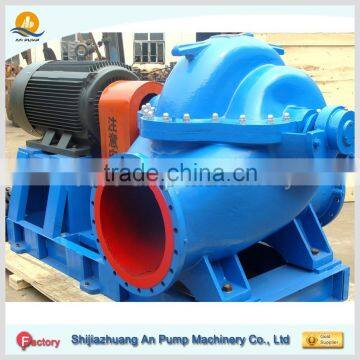

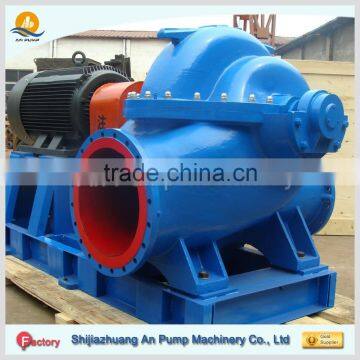

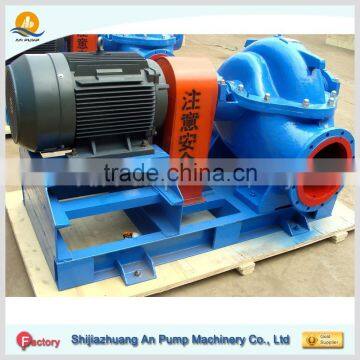

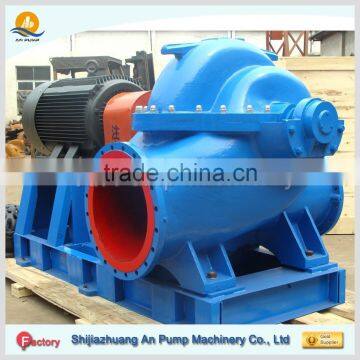

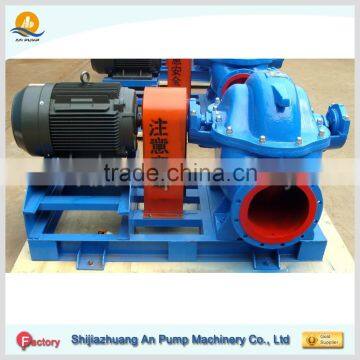

Horizontal Split Case Centrifugal Pump Pictures
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
An pump products slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Send your inquiry details in the below, click "send" now! Send is to earn!
