Centrifugal Bare shaft Split casing pump for sea water
QS, QSH series double-suction pump
Description: QS, QSH series pump one of the main characters is large flow rate. It can reach 110m3/h—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physico-chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
What is the Centrifugal Bare shaft Split casing pump Performance ?
Type | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (Nm) | Efficiency η(%) |
QS150 | 112-220 | 35-84 | 2900 | 30-55 | 68-80 |
QS200 | 160-351 | 31-100 | 2900 | 37-110 | 61-85 |
QS250 | 324-612 | 8.6-65.1 | 1450 | 22-132 | 72-86 |
QS300 | 504-1663 | 8.7-140 | 1450-1470 | 22-680 | 70-87 |
QS350 | 745-1570 | 10-125 | 1450-1470 | 55-630 | 70-88 |
QS400 | 900-1620 | 32-85.5 | 980-1480 | 440-500 | 71.5-84 |
QS500 | 1150-3800 | 10.6-108 | 740-970 | 110-800 | 70-89 |
QS600 | 2300-4000 | 13-80 | 730-970 | 145-730 | 70-91 |
QS700 | 2111-4896 | 39.5-99.5 | 742-980 | 397-1252 | 52-92 |
QS800 | 3960-688 | 23-84 | 600-750 | 450-1600 | 77-92 |
QS1000 | 6600-9900 | 32-52 | 600 | 1250 | 79-88 |
QS1200 | 5832-14400 | 6-95.7 | 500-745 | 710-3450 | 80-90 |
Detail performance and technical information please send email below for more!
What is the Centrifugal Bare shaft Split casing pump Applications?
- Agriculture water supply
- Agriculture irrigation water feed
- Circulating Water Systems
- Fire Fighting
- Irrigation
- Paper Mills
- Pharmaceuticals
- Ports & Docks
- Sugar Mills
- Vegetable Oil Mills
- Water / Effluent Treatment
- Sea/river Water delivery

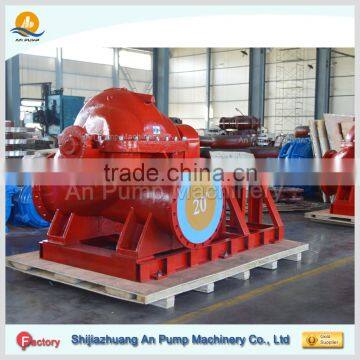

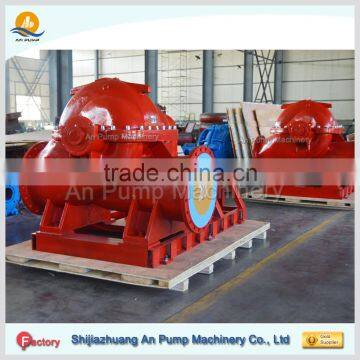

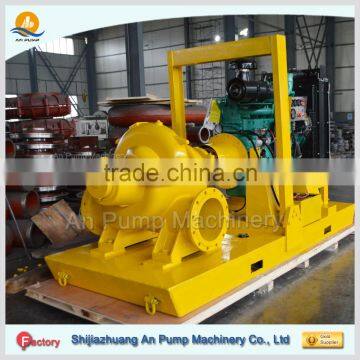

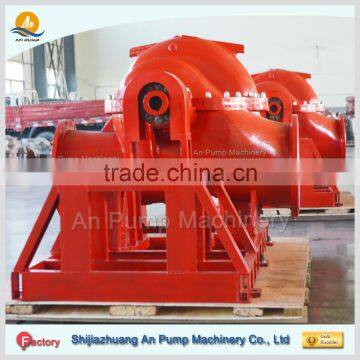

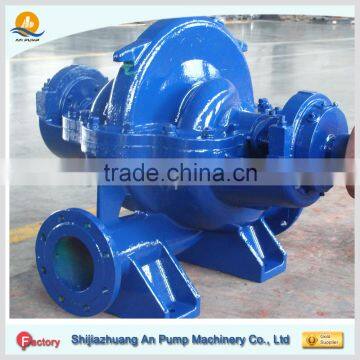

Centrifugal Bare shaft Split casing pump Pictures
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
An pump products slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
