Mining Coal Washery Slurry Pump

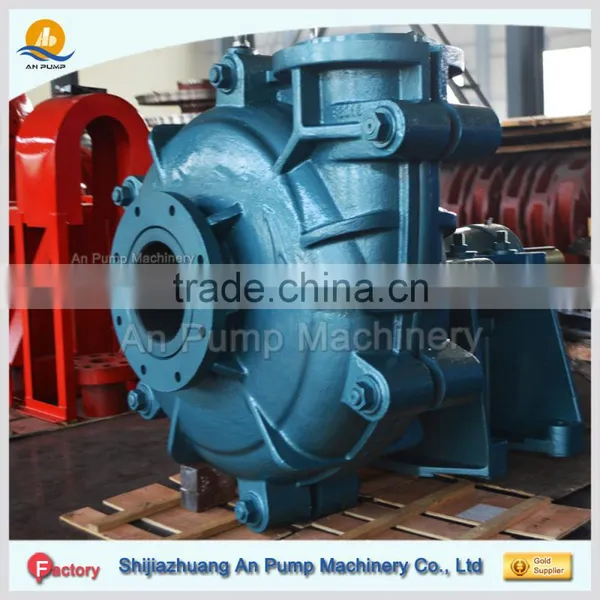

AM(R) main pump station heavy duty solid slurry pump
When or where you need Slurry Pump?
• To pump a medium where abrasive particles are present
• To transport the productions required or as much solids as possible hydraulically
The medium with few particles or not abrasive, which means the medium similar clear water that you could use clear water pumps, dirty water pumps or mud /sludge pumps is good enough
The Feature For AMmain pump station heavy duty solid slurry pump
The Extra-Thick Wet End Components make the AM(R) main pump station heavy duty solid slurry pump could handle the liquid with abrasive solid particles and extend the wear life Max, increase the mean time between failures with lowest maintenance by reasonable component arrangement!!!
The Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and lowest maintenance
The Large, open internal passages designed to reduce internal velocities, maximize wear life and lowest maintenance
Heavy duty construction with through-bolt design provides ease of maintenance and Min downtime
The Replaceable and Interchangeable Wet End Parts are lower the stocking cost, easy to repair and Min downtime
The Ductile iron fully lined casing provides durability,strength, safety, and long service life recommended while the Grey iron liner is the economic solution could satisfied most customers required especially when you dont need the pumps work at 24x7
Minimal shaft/impeller overhang reduces shaft deflection and increases packing life and the mean time between failures
Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life, which is another way to increase the mean time between failures
Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime
Lower NPSH requirements results in enhanced hydraulic performance and extended the wear life
The metal or rubber parts are available for different work conditions Max the wear life and lowest the maintenance cost

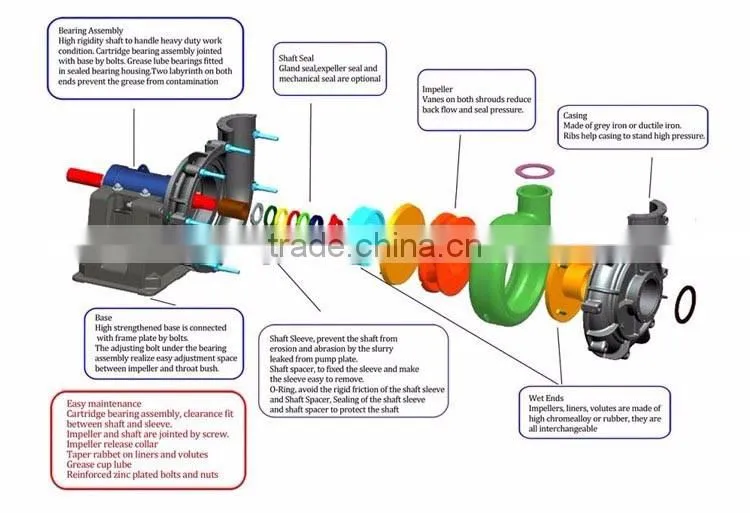

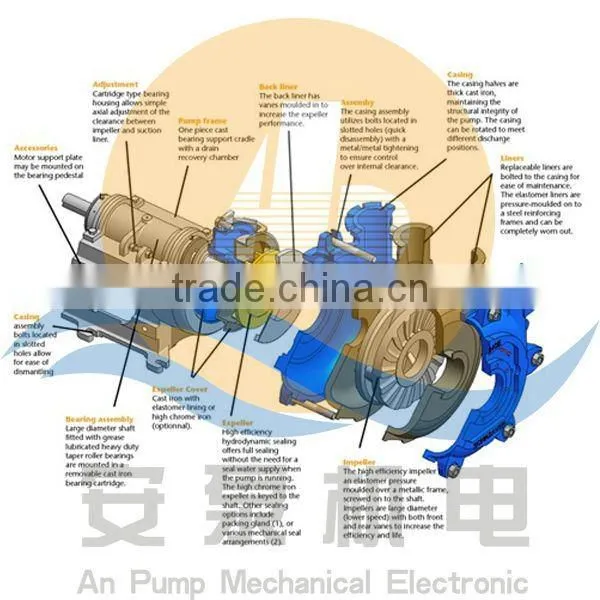

Structure
Performance parameters
Pump Type | Inlet/Outlet | Wet Part Material | Capacity | Head | Speed | NPSH |
inch | Chrome/Rubber | m3/h | m | rpm | m | |
25AMB | 1.5/1 | Chrome/Rubber | 10.8-28.8 | 6-68 | 1200-3800 | 2-4 |
25AMC | 1.5/1 | Chrome | 16.2-34.2 | 25-92 | 1400-2200 | 2-5.5 |
40AMB | 2/1.5 | Chrome/Rubber | 25.2-72 | 5.5-58 | 1000-3200 | 2.5-8 |
50AMC | 3/2 | Chrome/Rubber | 36-136.8 | 13-87 | 850-2700 | 2-7.5 |
75AMC | 4/3 | Chrome/Rubber | 79.2-198 | 5-53 | 800-2200 | 3-6 |
75AME | 4/3 | Chrome | 126-252 | 12-97 | 600-1400 | 2-5 |
100AMD/E | 6/4 | Chrome/Rubber | 126-396 | 10-64 | 600-1600 | 2-9 |
100AMD | 6/4 | Chrome | 324-720 | 30-118 | 600-1000 | 3-8 |
100AMD | 6/4 | Chrome | 468-1008 | 20-94 | 500-1000 | 4-12 |
150AME | 8/6 | Chrome/Rubber | 288-828 | 5-70 | 400-1140 | 2-10 |
150AMT | 8/6 | Chrome | 576-1152 | 32-95 | 450-725 | 6-10 |
200AMF | 10/8 | Chrome/Rubber | 540-1188 | 12-61 | 400-900 | 2-10 |
200AME/F | 10/8 | Chrome/Rubber | 504-1440 | 10-66 | 500-1100 | 4-8 |
250AMST | 12/10 | Chrome/Rubber | 720-1980 | 7-68 | 300-800 | 2.5-7.5 |
300AMST | 14/12 | Chrome/Rubber | 1152-2772 | 13-63 | 300-600 | 3-8 |
350AMST/TU | 16/14 | Chrome | 1368-3798 | 11-75 | 250-550 | 5-8 |
400 AMST/TU | 18/16 | Chrome | 2160-5040 | 8-66 | 200-500 | 5 |
450 AMTU | 20/18 | Chrome | 2520-5400 | 13-57 | 200-400 | 5-10 |

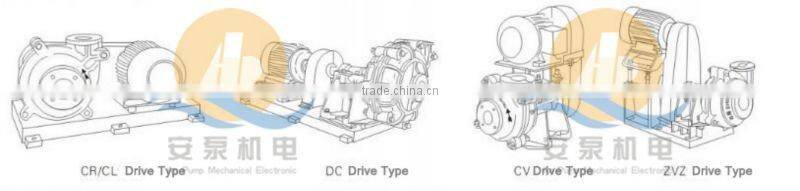

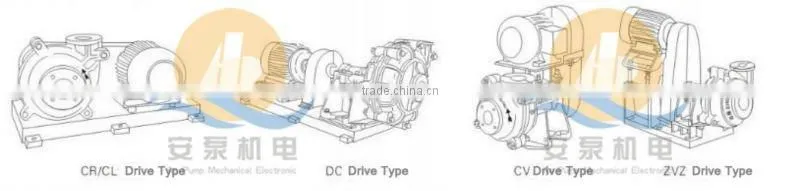

Pump drive types

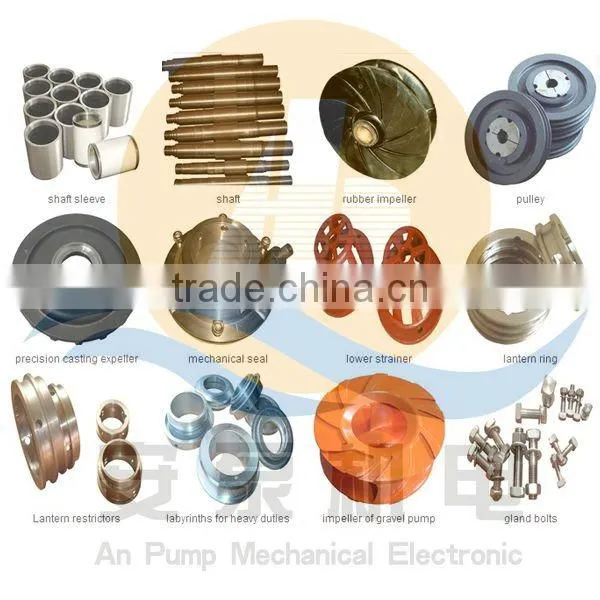

Spare parts

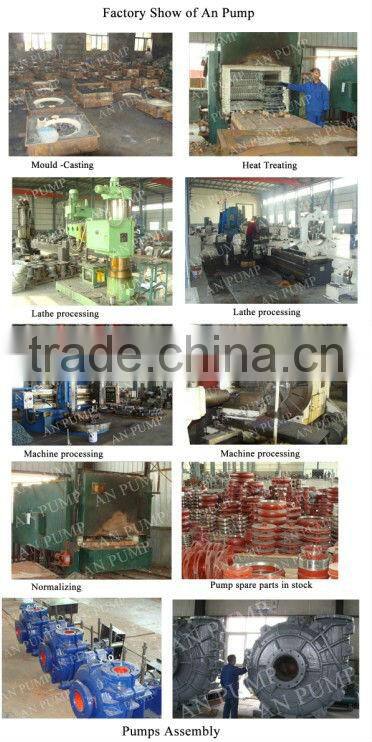

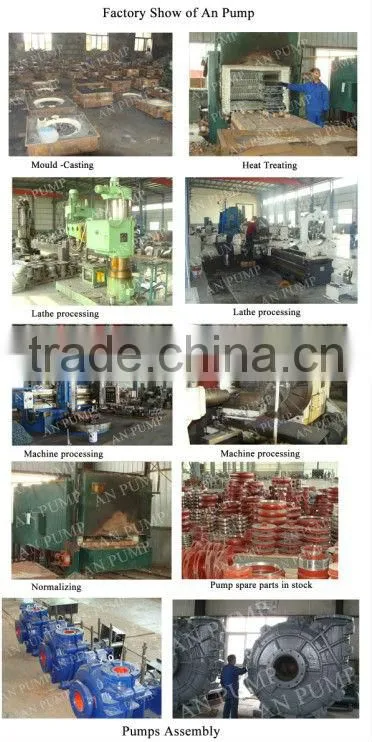

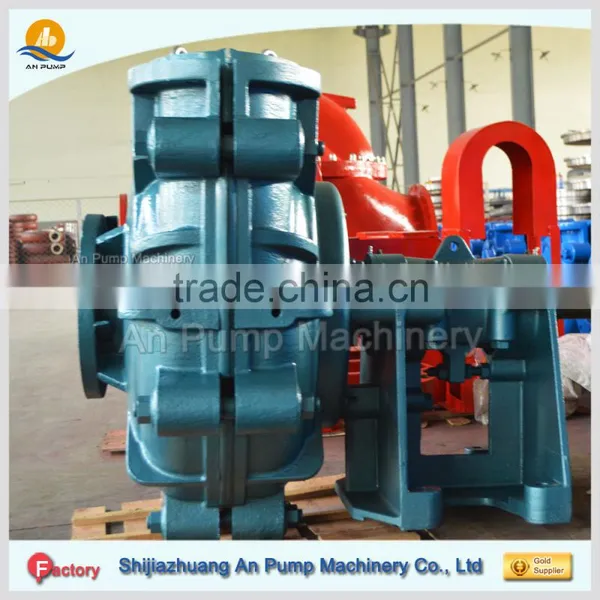

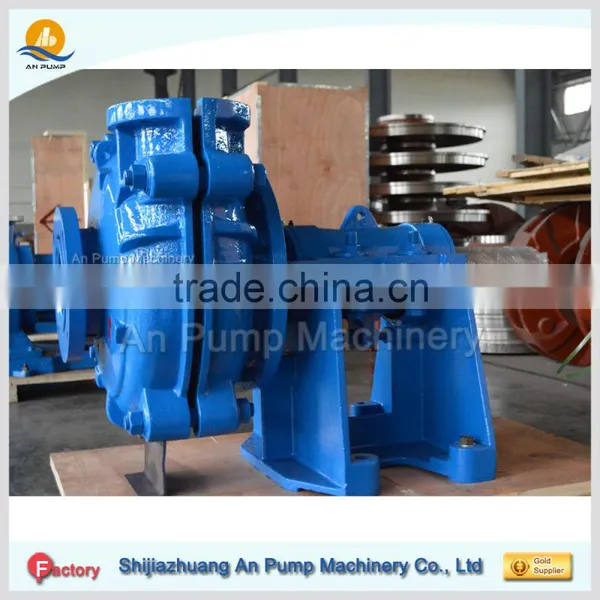

Factory
