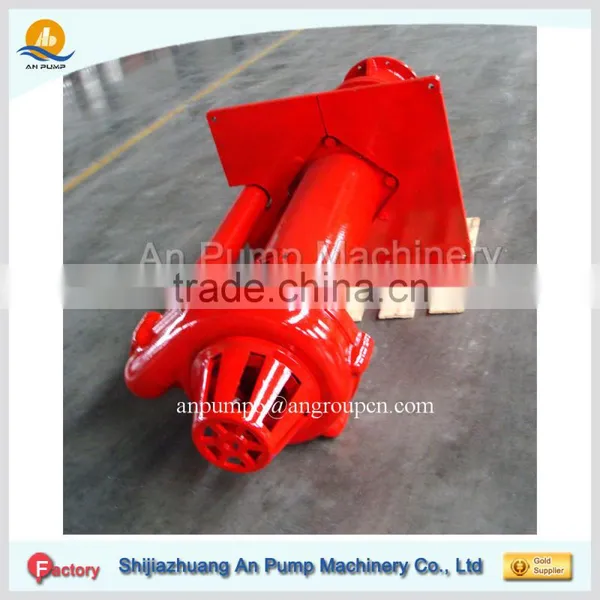

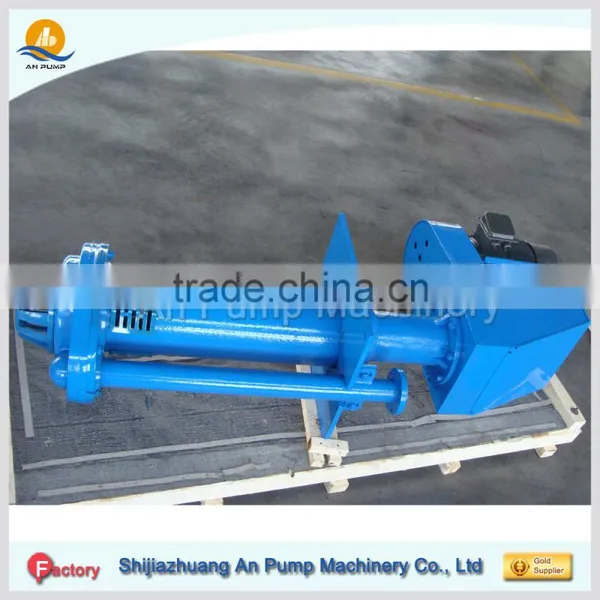

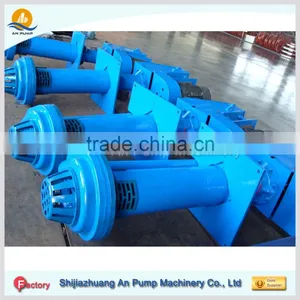

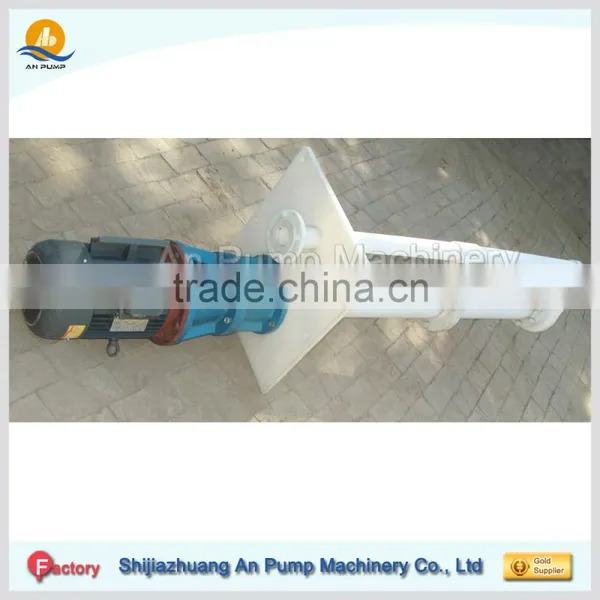

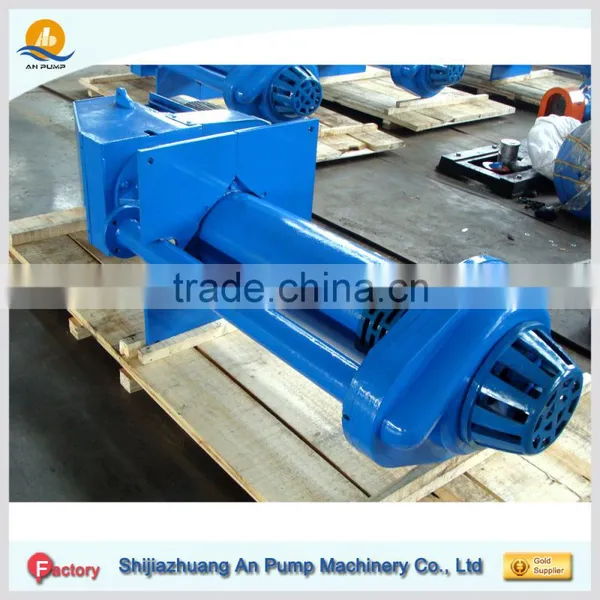

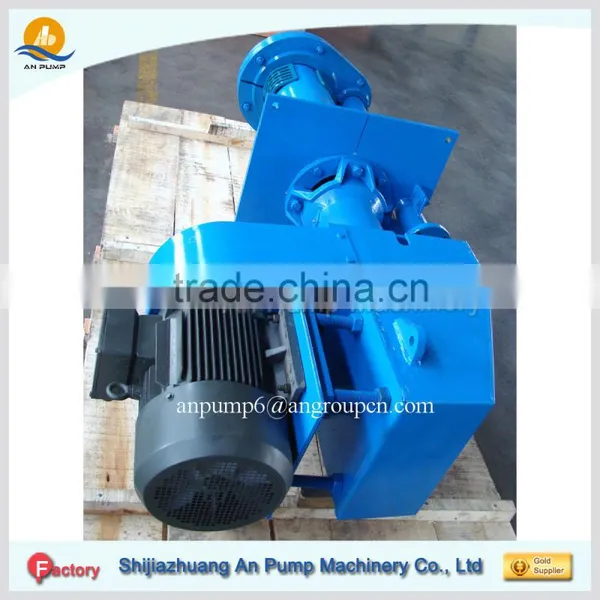

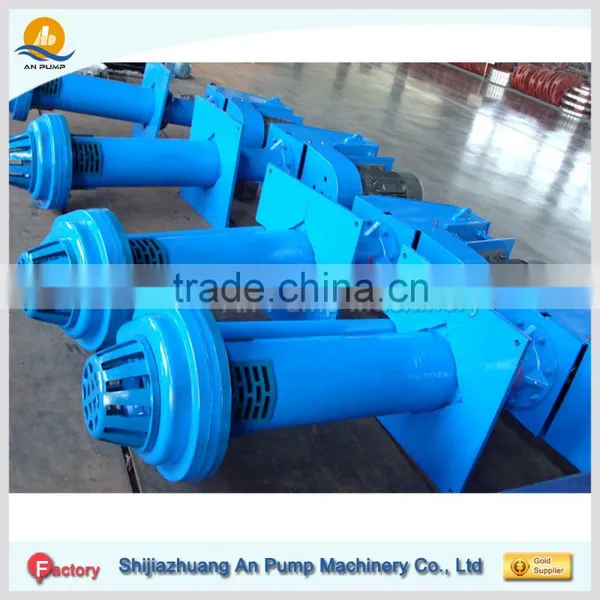

Mineral Sump Submersible Vertical Slurry Pump

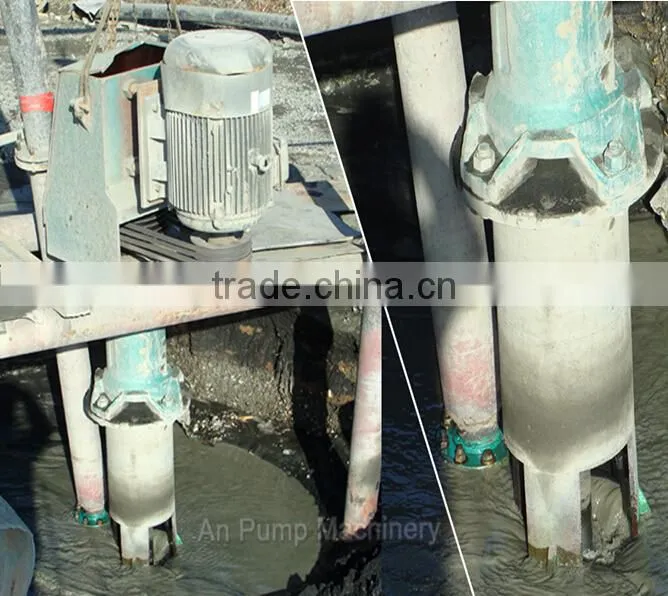

The Rubber Liner BP,BPR Heavy Duty Sump Slurry Pump pit
are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
• Minerals processing
• Coal preparation
• Chemical processing
• Effluent handling
• Sand and gravel and almost every other tank, pit or hole-in-the-ground slurry handling situation.

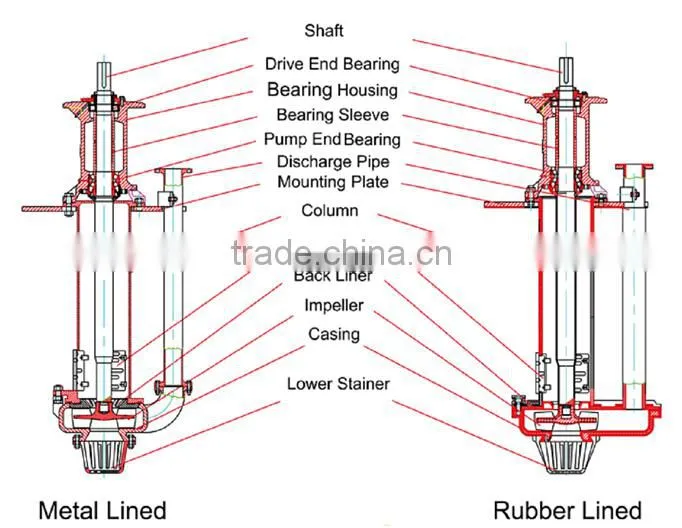

The BP/BPR rubber liner slurry pump design with either hard metal (BP) or elastomer covered (BPR) components makes it ideal for:
• Abrasive and/or corrosive slurries
• Large particle sizes
• High density slurries
• Continuous or “snore” operation
• Heavy duties demanding cantilever shafts
Wetted components are available in a wide range of alloys and elastomers, from which An Pump Machinery selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application, including those demanding both abrasion and corrosion resistance and where larger particles or high density slurries are encountered.
• Abrasion resistant high Cr alloy.
• Abrasion/corrosion-resistant alloy.
• Corrosion-resistant stainless steels.
• Natural and synthetic elastomers.
No submerged bearing failures
The robust cantilever shaft avoids the need for lower submerged bearings - which are often the source of premature bearing failure.
• Heavy duty roller bearings, above mountingplate.
• No submerged bearings.
• Labyrinth/flinger bearing protection.
• Rigid, large diameter shaft.
No shaft sealing problems
The vertical cantilever design requires no shaft seal.
No priming required
The top and bottom inlet design is ideally suited for “snore” conditions.
Less risk of blocking
The screened inlets and large impeller passages reduce the risk of blockages.
Zero ancillary water costs
The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.
Type | Material | Flow | Head (m) | Max Power (kw) | Speed (rpm) |
40C-BP/R | Metal/Rubber | 7.2-39.6 | 3.9-27.4 | 15 | 1000-2200 |
65D-BP/R | Metal/Rubber | 19.08-102.6 | 5-31.1 | 30 | 700-1500 |
100E-BP/R | Metal/Rubber | 41.5-259.2 | 5.1-37.2 | 70 | 500-1200 |
150F-BP/R | Metal/Rubber | 115.2-576 | 6.7-35.7 | 110 | 500-1000 |
200F-BP/R | Metal/Rubber | 180-734.4 | 7.1-28.2 | 110 | 400-850 |
250S-BP/R | Metal/Rubber | 363-1188 | 7-36 | 200 | 400-750 |
300S-BP/R | Metal/Rubber | 385-1492 | 7.8-55 | 250 | 400-700 |

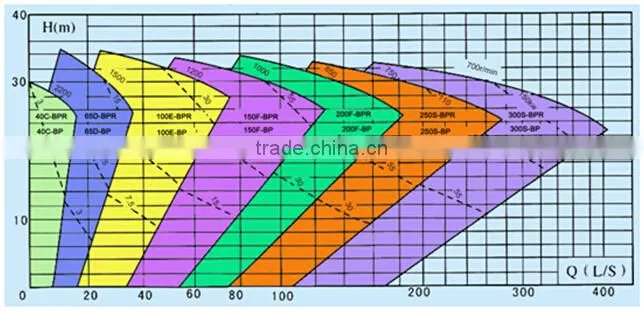

Performance curve of Submersible sump pump pit
