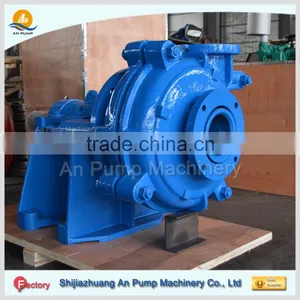

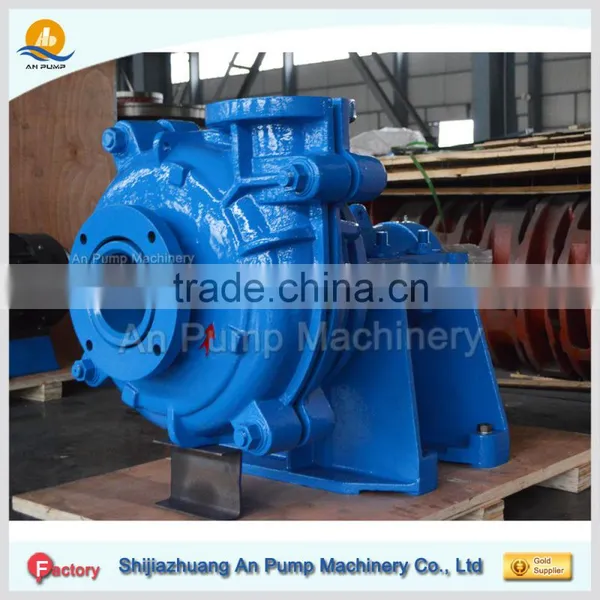

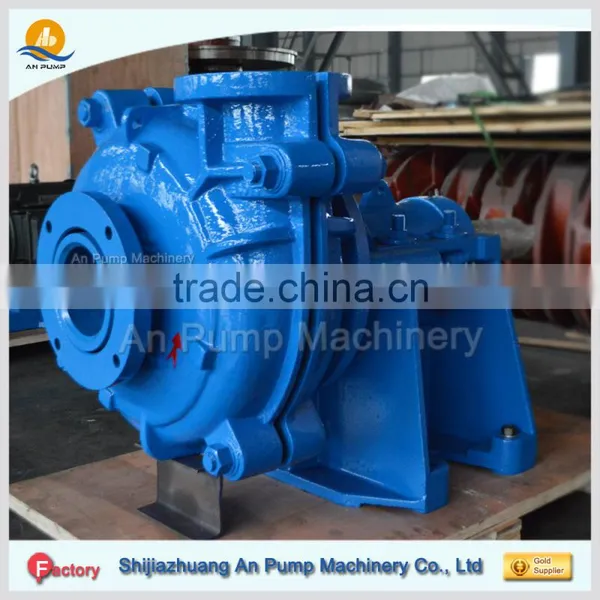

Portable horizontal regrind cyclone feed slurry
General introduction of slurry pump
AM/AMR series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.
Design Features of slurry pump
• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for
easy adjustment of impeller clearance.

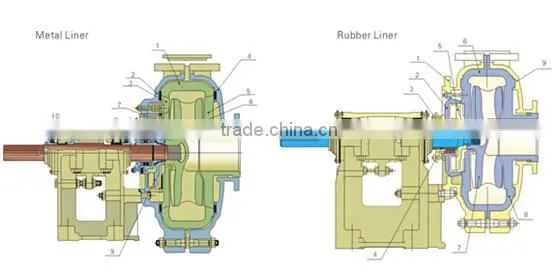

AM/AMR slurry pump Structure
Metal liner | Rubber liner | ||
1 | Volute liner | 1 | Frame plate |
2 | Frame plate | 2 | Expeller ring |
3 | Frame plate liner insert | 3 | Gland assembly |
4 | Cover plate | 4 | Shaft sleeve |
5 | Throat bush | 5 | Expeller |
6 | Impeller | 6 | Frame plate liner |
7 | Expeller ring | 7 | Impeller |
8 | Shaft sleeve | 8 | Cover plate liner |
9 | Expeller | 9 | Cover plate |
10 | Bearing assembly | Note: Slurry pumps have Throat Bush from 4"
| |
AM, AMR slurry pump Performance Curve
24x7 service for your AM Heavy duty Mining dewatering dirty water circulating centrifugal slurry pumps:
