Centrifugal Mining Vertical Sump Slurry Pump
Vertical Slurry Pump Berif introduction:
BP(R) pump is centrifugal vertical sump pump, work under fluid. It widely used for delivery abrasive, high density slurry with large particle in the metallurgy, mine, power plant, chemical, and other industry
Vertical Slurry Pump Detailed specification:
1.Cantilevered shaft design
2.Double suction semi-open impeller
3.Agitator option keeps solids in suspension
4.models feature full rubber covering for corrosion resistance
5.Recessed impeller option passes oversized material
6.Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
7.No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

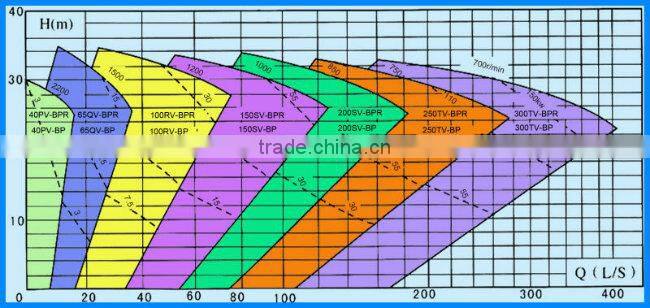

Vertical Slurry Pump Performance Parameter Table
| P(KW) | Q(m³/h) | H(m) | n(r/min) | η% | (mm) | (mm) | (kg) | |
| 40PV-BP(R) | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65QV-SP(R) | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| 100RV-SP(R) | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150SV-SP(R) | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200SV-SP(R) | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250TV-SP(R) | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
| 300TV-SP(R) | 22--200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |

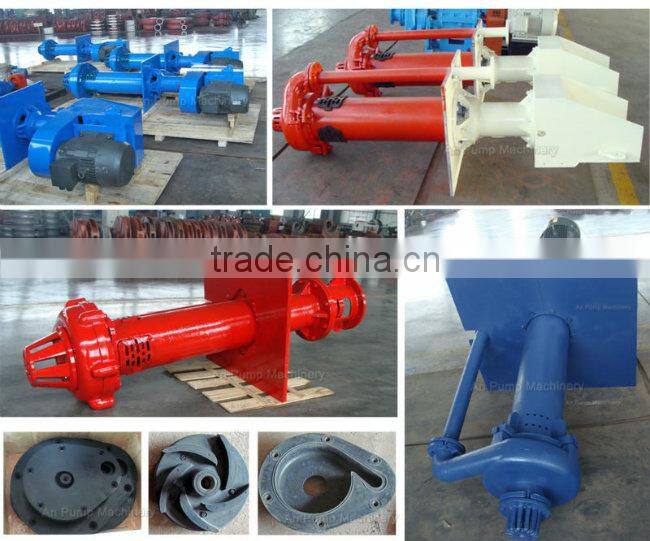

BP(R) Vertical Slurry Pump Show
