Am Series Heavy Duty Mining Slurry Pump
>>AM(R) Centrifugal slurry pump Performance Data
>>AM(R) Slurry pump information
The details of our AM(R) centrifugal slurry pump:

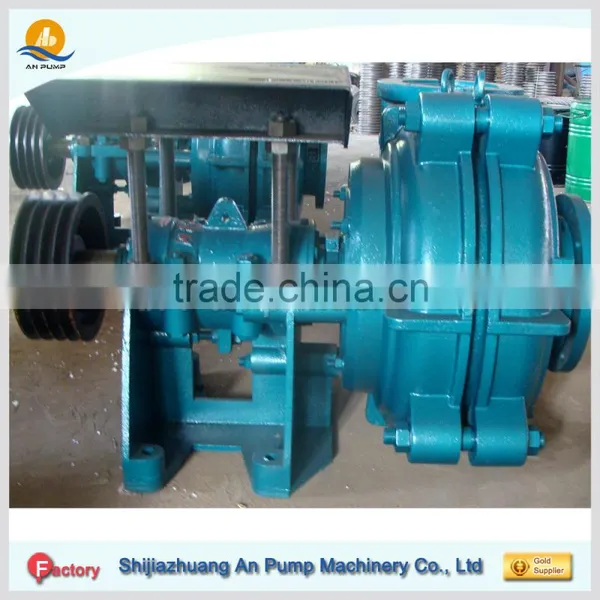

AM/AMR series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.
Slurry Pump Curve
Design Features of centrifugal slurry pump
• Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to
long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease
of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer
seal rings back all liner joints.
• Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure
capabilities and an extra measure of safety.
• Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require
no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow
positive accurate alignment during assembly and simple removal.
• One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of
impeller clearance.
Chinese pump manufacturers Slurry Pump Price Standard wooden case packing
An Pump Machinery is your Best Slurry Pump Manufacturer
