1.Brief
Shijiazhuang An Pump Co., Ltd, the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
2.Technical Specifications
Type | AM Slurry pump |
Flow (m3/h) | 3-6700 |
Head (m) | 5-68 |
Power (kw) | 15-1200 |
Eff. (%) | 85+ |
Pass Particle Size (mm) | 19-135 |
Material | High Cr Alloy, Rubber |
3.a.Materials Of Construction
| Liners | Impellers | Casing | Base | Expeller | Expeller ring | Shaft sleeve |
Standard | Chrome Alloy Natural Rubber | Chrome Alloy Natural Rubber | SG Iron | SG Iron | Chrome Alloy Or SG Iron | Chrome Alloy Or SG Iron | SG Iron Stainless Steel |
b. Features
Single-stage, single-suction, cantilevered, horizontal | Grease lubrication |
High efficiency, wear resistant, stable performance, interchangeability of parts | wear resistant layer and bearing layer can be separated, double casing structure. |
Series AM Slurry Pump , the lining and impeller can be made of wear metal or rubber. | thicker wear -parts,large-duty frame |

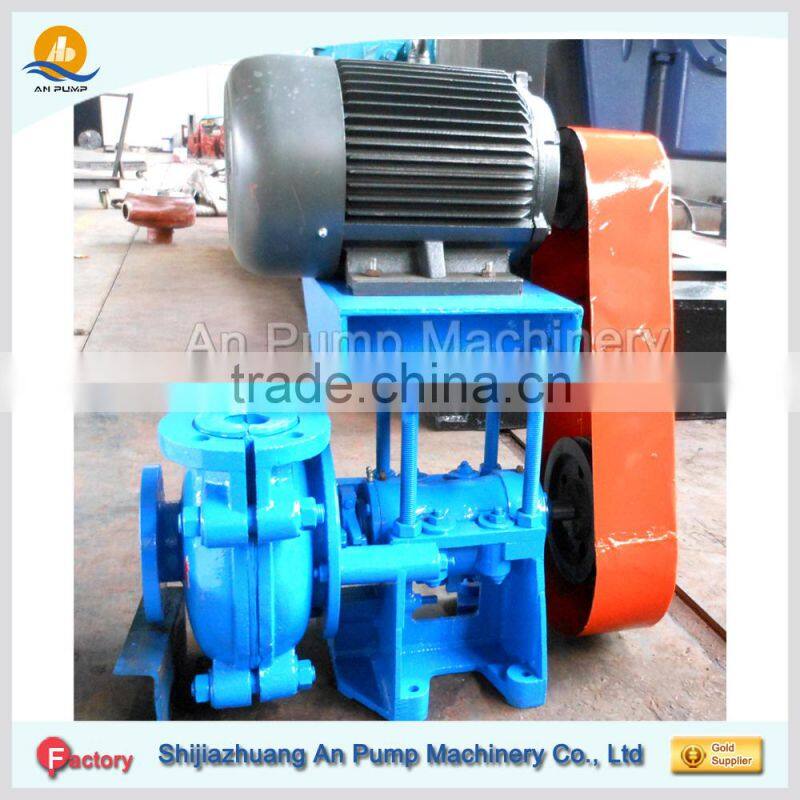

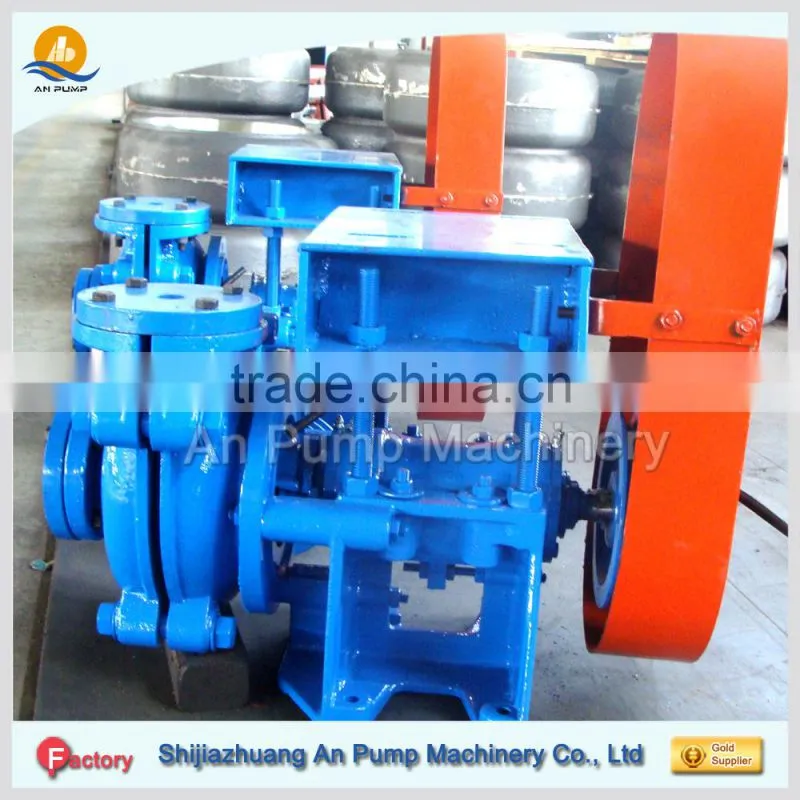

The discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degrees; the pumps can be operated in series and driven with belt. | |
4. Applications
harbour, bridge construction drain off water
sand graduated field
cement depot
kiln industry sewage
sedimentation pool
organic sewage
dirt mud discharges
underground construction/spring discharges

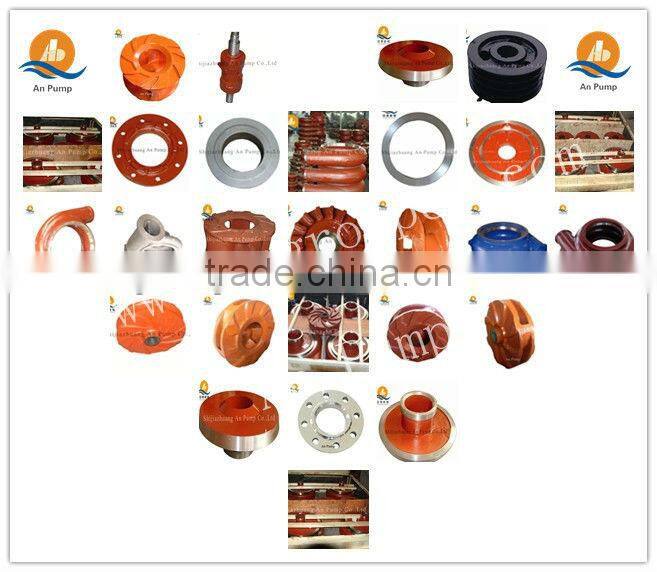

5.PUMP PARTS
1. All of the metal wet parts can are made of high chromium alloy which has superior wear and erosion resistance or grey iron which has a high rigidity.
2. As the expeller ring is assembled together with the expeller, much pressure can be reduced effectively for the impeller. Meanwhile, it can still maintain a reliable sealing performance.
3. The parts such as labyrinth, labyrinth locknut, end cover and shaft sleeve are used for bearing assembly; these parts can be changed easily and have high accuracy and longer service life.
4. Some fastening parts such as studs and bolts can be used for fixing the other parts securely. All the fastening parts can be attached easily, ensuring the safety.
5. All of the rubber parts have superior erosion resisting performance which can be used for a long life.
6.Advantage
Over 20 years experience in pumps
Wear resistant material
Specialized Test Equipment
Anti-rust treatment casting

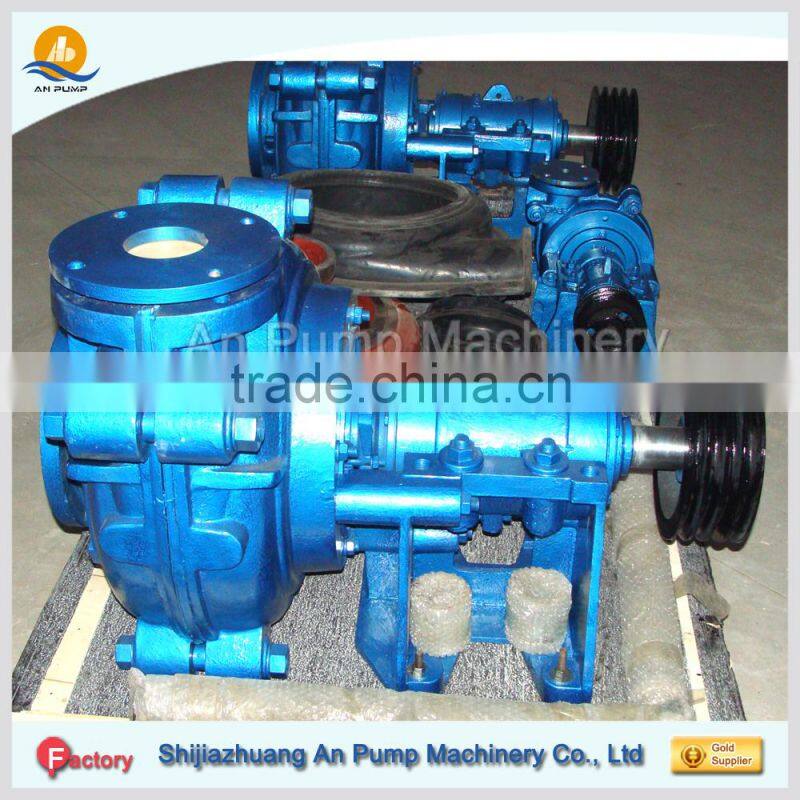

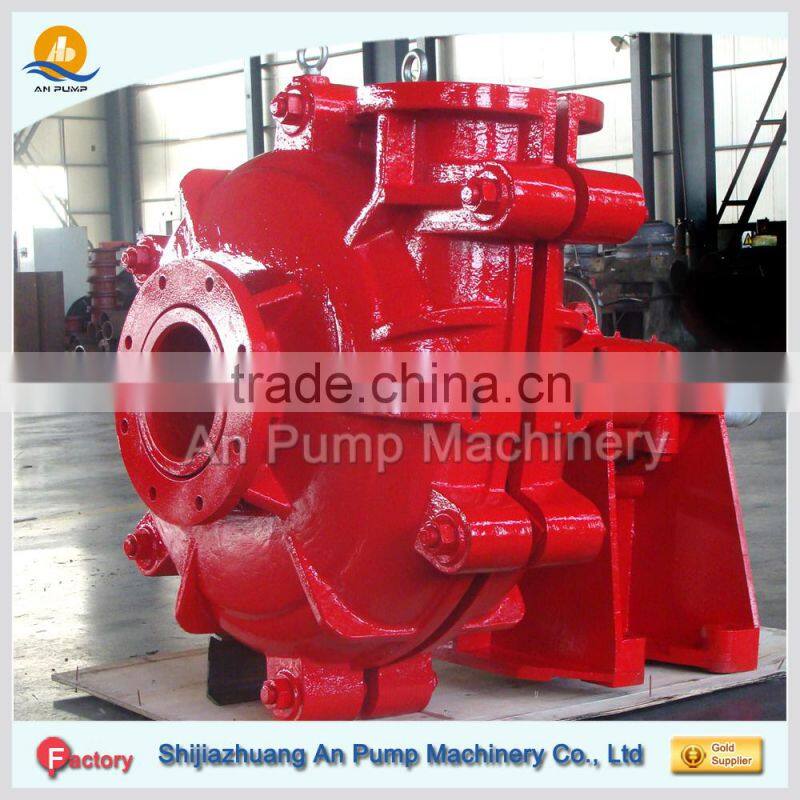

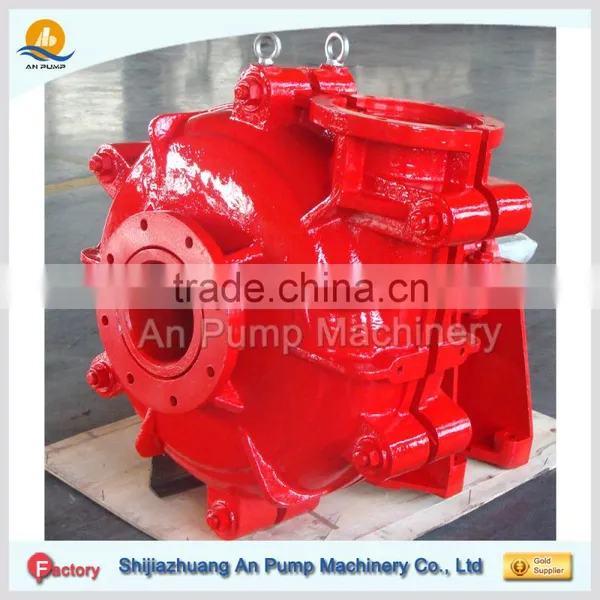

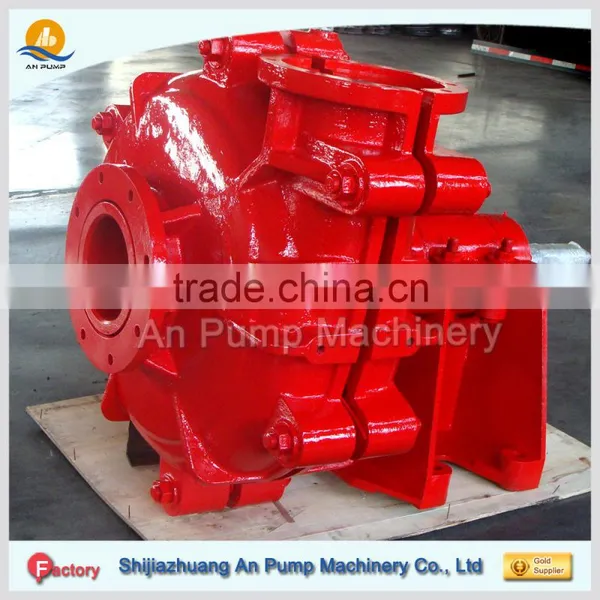

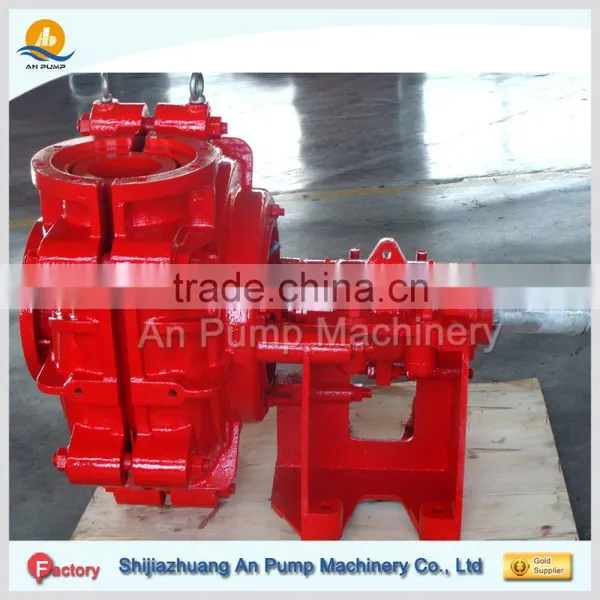

7.Slurry Pump show
