electric submersible transfer pump explosion proof
electric submersible transfer pump explosion proof specifications
1.Max. temperature: 40C
2.Max. solids: 70mm
3.Double Shaft Seal
4.Certificate: ISO.CE

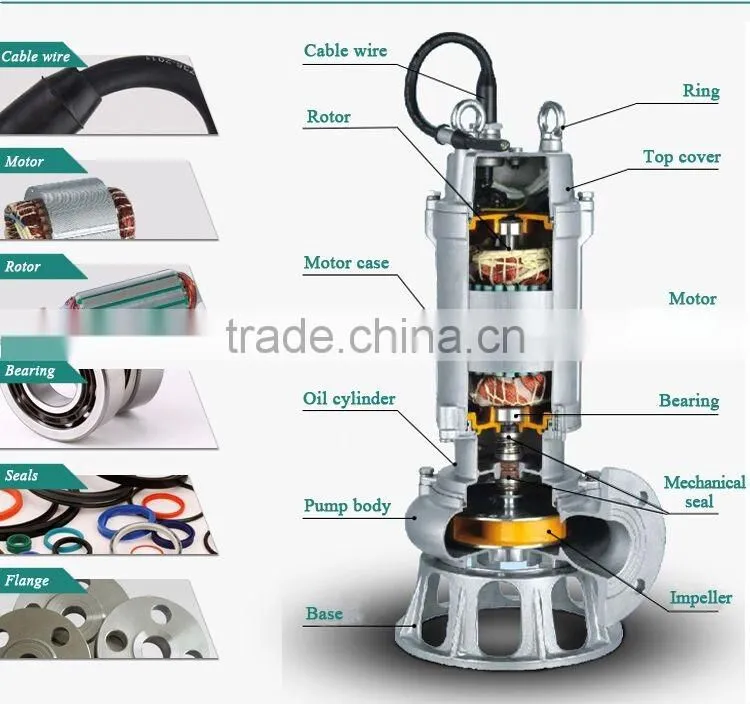

electric submersible transfer pump explosion proof structure
1. ) Impeller: With single-channel or double-channel impeller, which is similar to an elbow of the same section, the pump is particularly suitable for the medium containing solid particles( particle size: 50% pump flange size).
2. ) Mechanical seal: Double-channel mechanical seal in series(doule seal type), with durable wear and corrosion resisting seal material.
Motor side: Ceramic/Ceramic
Pump side: Silicon carbide/Hard Alloy
3. ) Bearing. Three sets. One at the motor side and two at the pump side. SKF and NTN type bearing available if request.
4. ) Oil and water probe: Once the mechanical seal damages and water comes insides, the probe will send out signal to make the protection action.
5. ) Float switch: If request, with pump control cabinet, the float switch can automatically control the pump stop/start according to the water level
6). Movable and fixed installation optional, and double guide automatic rail available.
7. ) Motor: Insulation class: Class F, and protection class 58
electric submersible transfer pump explosion proof performance
Type |
Discharge |
Capacity Q |
Head H |
Speed n |
Power N |
Efficiency η |
Weight |
Pump electrical |
diameter |
(m3/h) |
(m) |
(r/min) |
(kW) |
(%) |
(kg) |
control cabinet |
|
(mm) |
|
|||||||
40ASW12-15-1.5 |
40 |
12 |
15 |
2900 |
1.5 |
48 |
55 |
QZD-1.5 |
50ASW20-7-0.75 |
50 |
20 |
7 |
1450 |
0.75 |
62 |
50 |
QZD-0.75 |
50ASW10-10-0.75 |
50 |
10 |
10 |
2900 |
0.75 |
54 |
45 |
QZD-0.75 |
50ASW15-15-1.5 |
50 |
15 |
15 |
2900 |
1.5 |
51 |
55 |
QZD-1.5 |
50ASW15-20-2.2 |
50 |
15 |
20 |
2900 |
2.2 |
51 |
60 |
QZD-2.2 |
50ASW17-25-3 |
50 |
17 |
25 |
2900 |
3 |
53 |
70 |
QZD-3 |
50ASW25-32-5.5 |
50 |
25 |
32 |
2900 |
5.5 |
49 |
105 |
QZD-5.5 |
65ASW25-15-2.2 |
65 |
25 |
15 |
2900 |
2.2 |
52 |
65 |
QZD-2.2 |
electric submersible transfer pump explosion proof curve
electric submersible transfer pump explosion proof feature
1 Widely Used: suitable for conveying liquid with solid particles of gravel, cinders, tailings,slurry etc. It’s mainly used in river/mining dredging,
2 High Efficiency: pumps are not limited by suction, and thus have high efficiency in slag suction, and clear silt more thoroughly.
3 Powerful Impellers: In addition to the main pump impeller, agitation impeller is equipped at the bottom to help break and mix the sludge.
4 Long Wear Life: The pump is constructed with abrasion resistant materials - chromium alloy.
electric submersible transfer pump explosion proof application
1. Civil engineering
2. Mines,quarries,coal ore & slurries
3. Sewage treatment plants
4. General pumping purposes
5. Pumping fluid: sludge, sludge or bentonite
electric submersible transfer pump explosion proof packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
