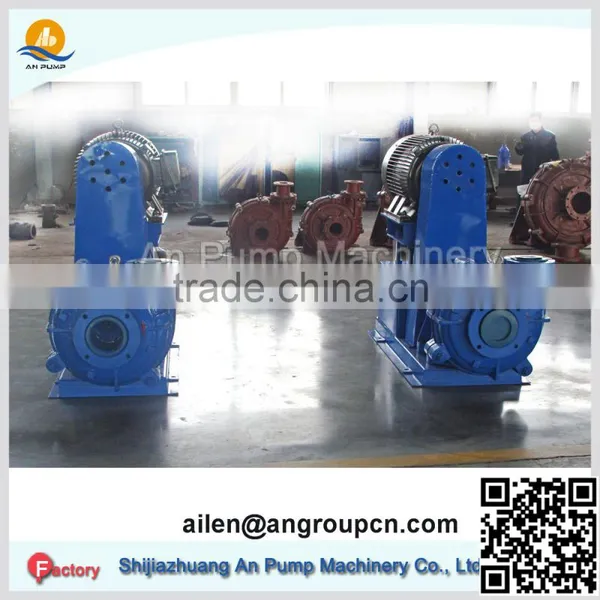

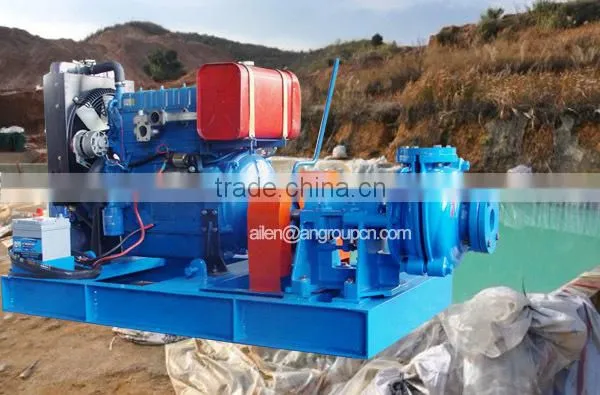

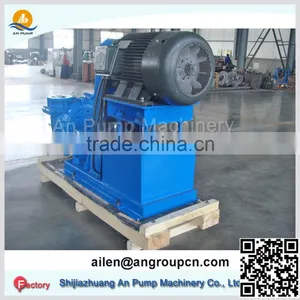

Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
¢¢¢ OVERVIEW ¢¢¢
Overview of Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
AM series heavy duty slurry pumps are end-suction, split-case, centrifugal slurry pumps provide excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
¢¢¢ APPLICATION ¢¢¢
Application for Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
Heavy duty mud sewage slurry pump mainly used for delivery the slurry which is strong corrosive with fine particles. Slurry pump are widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
¢¢¢ FEATURES ¢¢¢
Features of Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
IMPELLERS:
Wide variety of metallurgic and elastomeric options (metal and elastomer interchangeable);
Pump out vanes on rear and front (on closed impellers) reduce recirculation within pump, and aid in preventing seal contamination;
Optional castings of straight or semi-Francis vanes offer wider hydraulic options in single sizes.
¢¢¢ PERFORMANCE DATA ¢¢¢
Perfomance data of Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
| Model | Max Power (kw) |
Clean Water Performance | ||
| Flow | Head | Eff | ||
| m3/h | H(m) | η% | ||
| 1.5x1B | 15 | 10.8-25.2 | 7-52 | 35 |
| 2x1.5B | 15 | 25.2-54 | 5.5-41 | 50 |
| 3x2C | 30 | 36-75.6 | 13-46 | 60 |
| 4x3C | 30 | 79.2-180 | 5-34.5 | 59 |
| 4x3D | 60 | 39.6-129.6 | 15.2-35.3 | 65 |
| 6x4D | 60 | 144-324 | 12-45 | 65 |
| 6x4E | 120 | 144-324 | 12-45 | 73 |
| 8x6E | 120 | 97.2-684 | 5.9-50.9 | 70 |
| 8x6R | 300 | 324-720 | 7-49 | 65 |
| 10x8ST | 560 | 540-1188 | 12-50 | 75 |
| 12x10ST | 560 | 720-1620 | 7-45 | 80 |
| 14x12ST | 560 | 1152-2520 | 13-44 | 79 |
¢¢¢ CURVE CHART ¢¢¢
Performance curve for Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
¢¢¢ MATERIAL LIST ¢¢¢
Material of Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
Metal material:
| Item | Code |
| Chrome alloy | Cr |
| Cast iron | - |
| Grey iron | HT |
| Ductile cast iron | QT |
| Staniless Steel | SS304, SS306, SS316L |
| Duplex stainless steel | CD-4MCu |
| Bronze | - |
Rubber material:
Category |
Specification |
Natural rubber |
Ru |
Synthetic rubber |
Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |

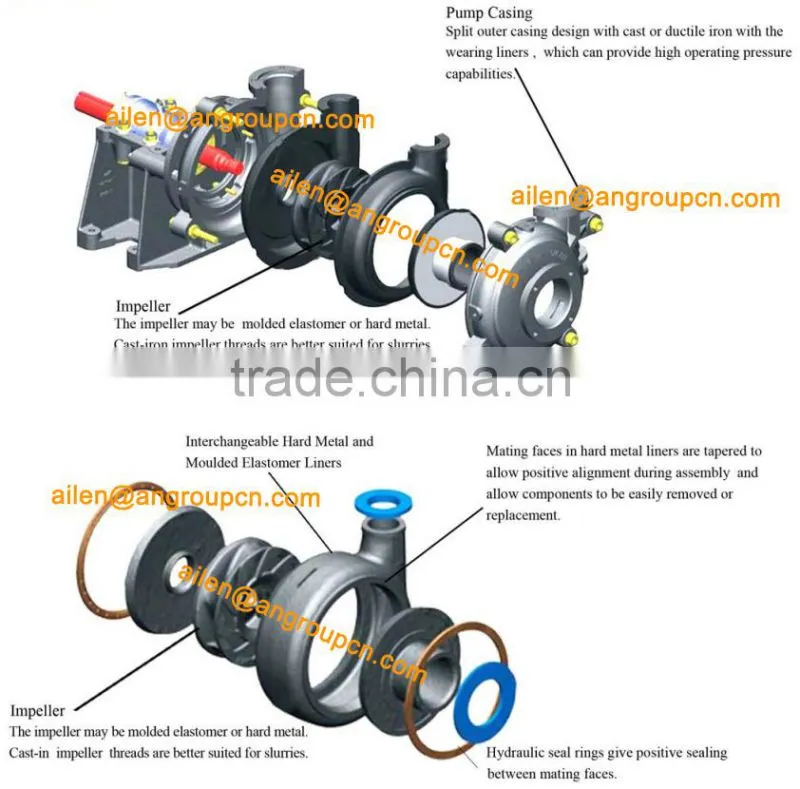

¢¢¢ CONSTRUCTION DRAWING ¢¢¢
Construction for Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump

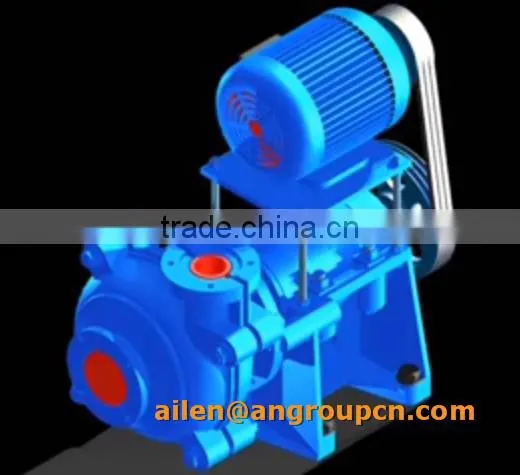

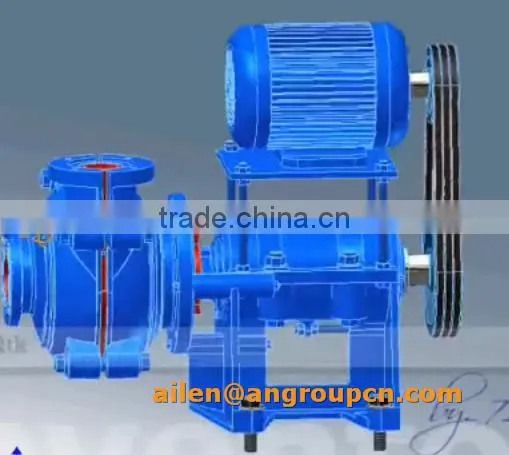

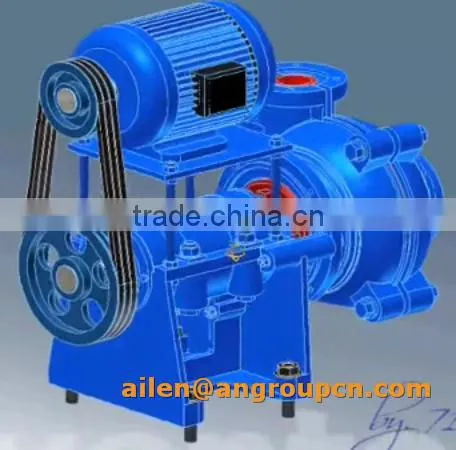

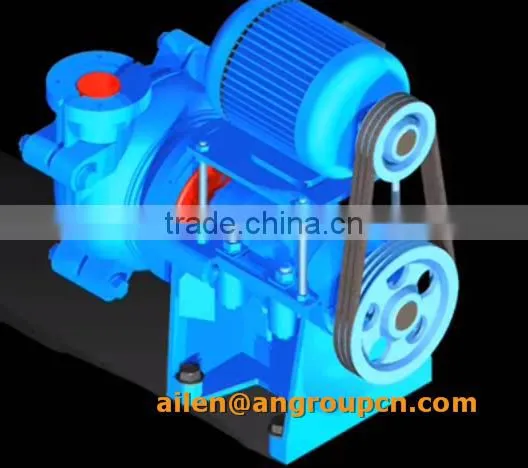

¢¢¢ 3D DRAWING ¢¢¢
|
|
|
|
¢¢¢ PACKAGING & SHIPPING ¢¢¢

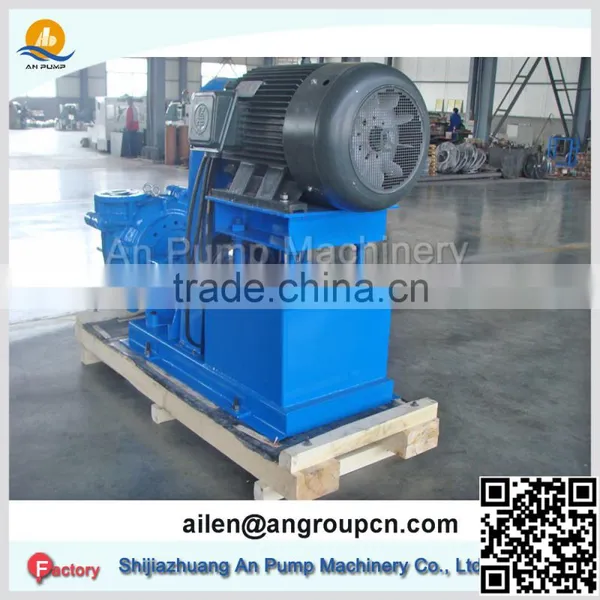

Packaging and shipping for Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump
¢¢¢ FAQ ¢¢¢
Heavy Duty Centrifugal Mining Sump Mud Slurry Sewage Pump basic parameter
The basic parameters of pump main performance are as follows:
1. Flow rate (Q):
Flow rate is meaning the liquid amount (volume or weight) delivered in unit time(volume or weight);
2. Head (H):
Head is the increased energy from the pump inlet to the pump outlet when pumping one unit liquid.
That is to say one Newtonian liquid get the effective energy through the pump.
The unit is n. m/N = m, mamely pumping water column height, in short of meter.
3.speed (n): Speed is numbers of revolutions of the pump shaft in unit time, Code is n, unit is r/min;
