stainless steel impeller submersible pump
stainless steel impeller submersible pump introduction
ASW series submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defence, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
ASW pump is high efficiency, energy saving, non-blocking, anti-winding, long life and other notable features can be installed with automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped and anti-flushing type five kinds of models.
stainless steel impeller submersible pump specification
1.vertical submersible sewage pump for waste water
2.AQW series pump is a kind of submersible sewage motor pump,and the pump and the motor are coaxial.
3.AQW series submersible sewage motor pump mainly used in municipal engineering, industry, hospital, hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible sewage motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%..Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
stainless steel impeller submersible pump parameter
Vertical Submersible Sewage Pump Performance | |||||
Type |
Flow (m3/h) |
Head (m) |
Speed (r/min) |
Motor Power (KW) |
Efficiency (%) |
40ASW |
8.4-14.4 |
14-16 |
2900 |
1.5 |
42-70 |
50ASW |
7-50.4 |
8-36 |
1450-2900 |
0.75-7.5 |
46-62 |
65ASW |
17.5-44.4 |
11-30.2 |
2900 |
2.2-4 |
39-72 |
80ASW |
20.3-72 |
5.7-27.5 |
2900 |
2.2-7.5 |
51-75 |
100ASW |
35-120 |
5.6-38.5 |
1450 |
4-15 |
46-80 |
150ASW |
49-300 |
5.5-44.5 |
1450 |
5.5-37 |
58-82 |
200ASW |
110-480 |
5.7-44.5 |
1450 |
11-75 |
63-83 |
250ASW |
420-840 |
7-35 |
980-1450 |
30-90 |
63-84.5 |
300ASW |
280-1140 |
6.7-27 |
980-1450 |
45-110 |
68-84.5 |
350ASW |
700-1800 |
8-40 |
980 |
45-160 |
68-85 |
400ASW |
1050-2640 |
12-33 |
980 |
132-160 |
71-85 |
500ASW |
1400-3600 |
9-22.5 |
980 |
110-200 |
72-85 |
stainless steel impeller submersible pump curve

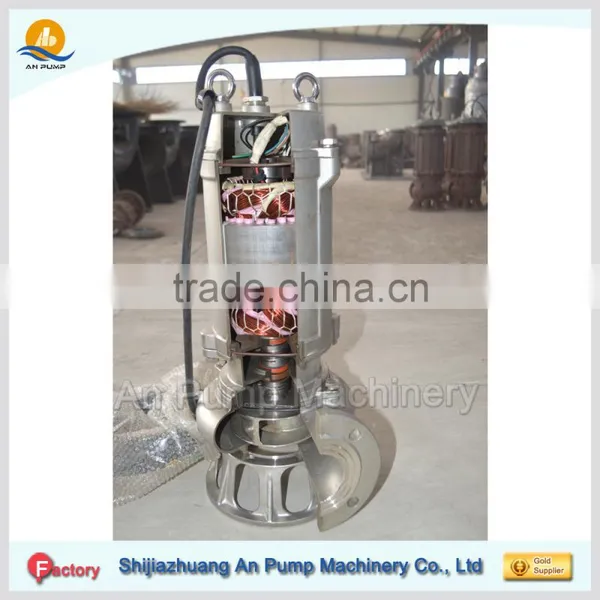

stainless steel impeller submersible pump structure
stainless steel impeller submersible pump application
1. Civil engineering
2. Mines,quarries,coal ore & slurries
3. Sewage treatment plants
4. General pumping purposes
5. Pumping fluid: sludge, sludge or bentonite
stainless steel impeller submersible pump packing and shipping
