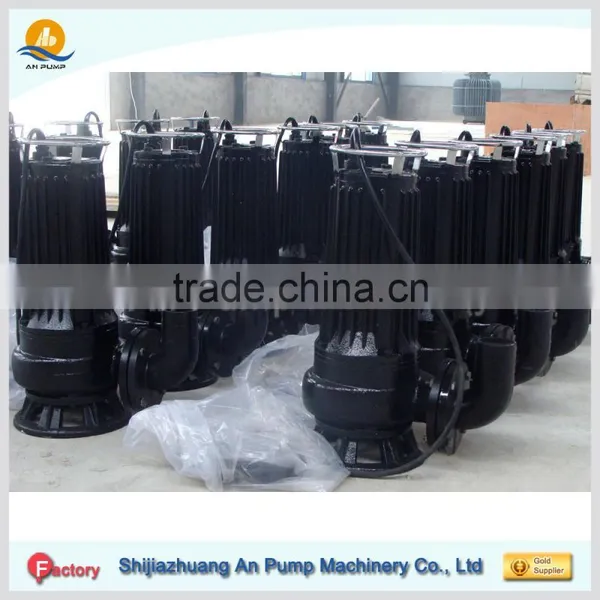

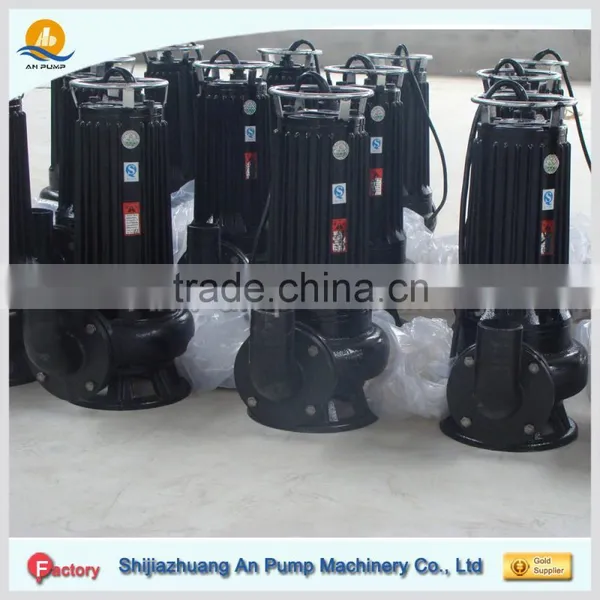

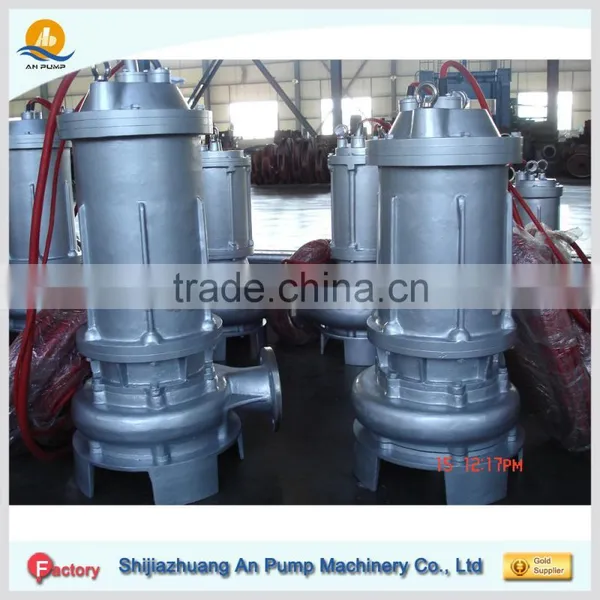

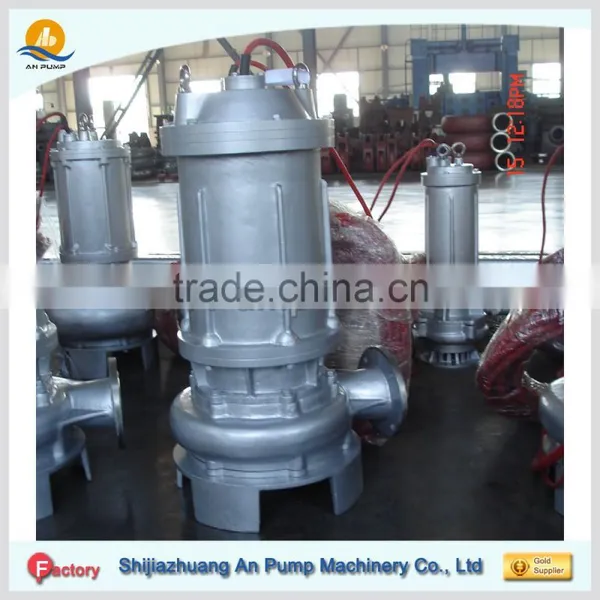

ASW series submersible sewage pump

Description: our company produced ASW series submersible sewage pump has the features of high efficiency,energy saving, anti-winding, non-clogging, automatic installation and automatic control.

In the aspect of discharge solids and macro-fiber, it has unique effect.

The passing particle size can reach to 50% of the outlet, with the advantages of high efficiency, low vibration and good energy saving. The pump capacity range 2-2000m3/h, head 3-60m, speed 580-3500rpm, diameter φ25-400mm, temperature -20-80℃. It can be widely used in pond, transportation of sea water, fish and shrimp farming, water conservancy facilities, sewage treatment, mining, construction fields etc.

The advantages of Submersible liquid-solids handing centrifugal drainage pump are as follows:

1)Using large flow-channel anti-clogging hydraulic component design, greatly improve the ability of sewage passing through, can effectively through fiber material five times of the pump diameter and the particle diameter up to 50% of outlet;

2)Mechanical seal adopt double tandem seal, material is hard corrosion tungsten carbide, with characters durable, wear-resisting etc;

3)Structure compact, small volume, easy to move and installation, no need to build pump room;

4)The pump can work when submerged into water, pump oil chamber equipped with oil-water probe, when mechanical seal damaged, the probe will make signal after water entered into oil chamber;

5) According to user’s requirements for pump protection can be equipped with automatic security control cabinet, monitoring the pump leakage, creepage, overload and over-temperature, ensure the pump running reliable and safe;

6)Can use fixed coupling installation, double guide rail automatic coupling installation system, it brought great convenience for installation and maintenance, serviceman do not need to go into the sewage pool;

7) We can change the float switch position according to the required level, automatic control the pump start-stop, no need person to supervise;

8)The motor can adopt water jacket type outside circulating cooling system to ensure the electric pump running safety in condition of no water(dry).

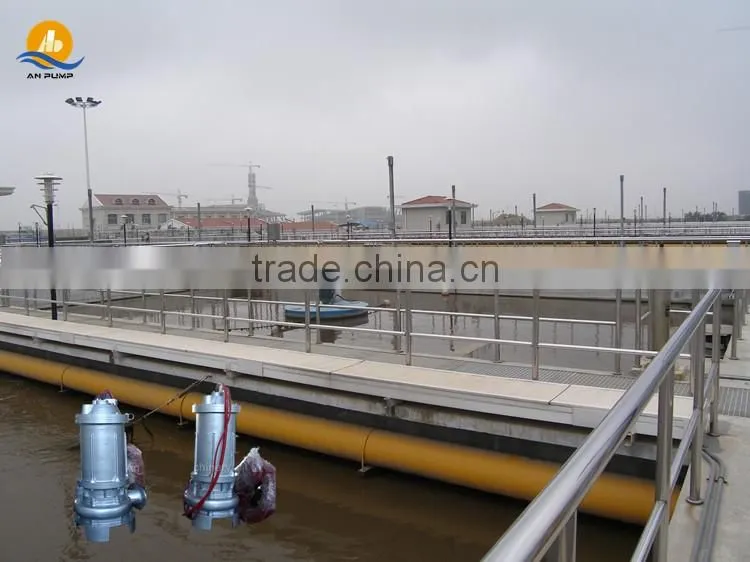

Submersible liquid-solids handing centrifugal drainage pump Applications&Usages

harbour construction
ash transfer
silt removal
sand and gravel pumping
barge and tank clean out
lime slurry
coal runoff sumps
food waste

Submersible liquid-solids handing centrifugal drainage pump Technical Specifications

Main Benefits&Advantages

(1)More than 20 years in pumps line.
(2)Long-term reliability.
(3)Excellent rag handling.
(4)Sustainable in manufacturing and operations.
(5)Reduced risk of pollution from overflows.
(6)Reduced risk of interruption to services to customers.
(7)Reduced breakdown costs.

Submersible liquid-solids handing centrifugal drainage pump structure
