End Suction Water Pump, Water Pumping Machine
- 8000 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | IS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Other, standard | |
| Application | Other, Centrifugal portable suction pump |
Product Description

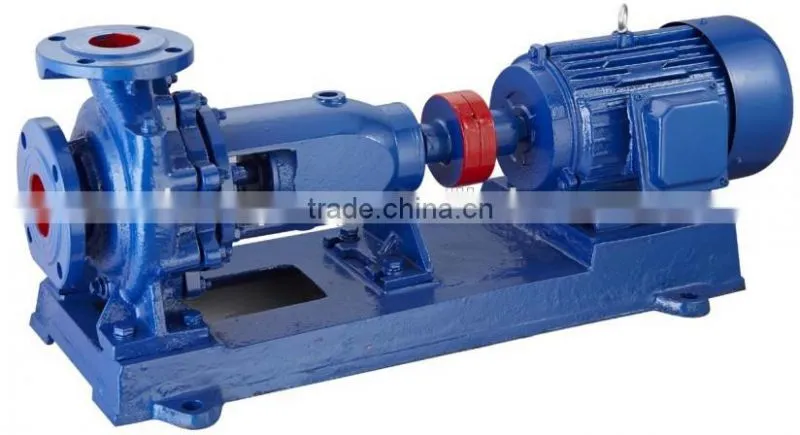

End Suction Water Pump, Water Pumping Machine
Product Introduction
Our end suction centrifugal water pump is specialized in pumping water , liquid, chemical substances, etc. With compact structure , its working diameter ranges from 50mm to 300 mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This circulation for air conditioner, sewage treatment and other fields.
DA is used for handing clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air -conditioning, extinguishing and irrigation.
In spite of the same specification, the pump’s performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.)
The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.
QI series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.
Technical Data of end suction pump
Type | QI |
Capacity (m3/h) | 3.5-1200 |
Head (m) | 3.7-128 |
Speed (r/min) | 1450-2900 |
NPSHr (%) | 2.0-7.5 |
Eff. (%) | 86-95 |
Weight (kg) | 33-1720 |
Dia Inlet (mm) | 50-300 |
Dia Outlet (mm) | 32-250 |
Model Description
end suction pump curve
