Horizontal end suction centrifugal water pump
QI End Suction Water Pump
QI(R) Centrifugal end suction pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.
2.QI End Suction Water pump Feature
(1) The temperature of liquid shall not be over 80 oC for type QI. And QIR can be to 150 oC.
(2) The major components are casing, casing cover, impeller, shaft, wear ring, shaft sleeve, bearing bracket etc.
(3) QI pump is divided into the casing and the casing cover from the back face of the impeller i.e. back pull-out design. QI pump has the advantages for ease of inspection and maintenance. When inspection, only dismantle the intermediate connector between pump coupling and motor coupling. The rotating element can be completely removed without disturbing the casing, suction and discharge pipeline and motor.
| Industry | Plumbing Applications |
| General water supply |
Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
| Agriculture / Food / Beverage |
Irrigation , water supply , food processing , beverage processing , fertilizers . |
| Manufacturing |
Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
| Fire / Disaster Relief |
Fire pumps , fire protection , flood control , disaster relief , federal / military . |
| Utilities : Water / Wastewater |
Power Generation stations , dewatering , desalination , energy recovery turbines |
| Chemical / Mining |
Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
| No. | Country | Cast iron | Ductile Iron | Stainless Steel 304 | Stainless Steel 316 |
| 1 | China | HT250 | QT500-7 | 0Cr18Ni9 | 0Cr17Ni12Mo2 |
| 2 | US | NO.35 | 70-50-05 | SS304 | SS316 |
| 3 | Japan | FC250 | FCD500 | SUS304 | SUS316 |
| 4 | Germany | GG25 | GGG50 | X5CrNi18.9 | X5CrNiMo18.10 |
| 5 | Italy | G25 | GS500-7 | ||
| 6 | France | FGL250 | FGS500-7 | Z6CN18.09 | Z6CND17.12 |
| 7 | ISO | 250 | 500-7 | 11 | 20,20a |

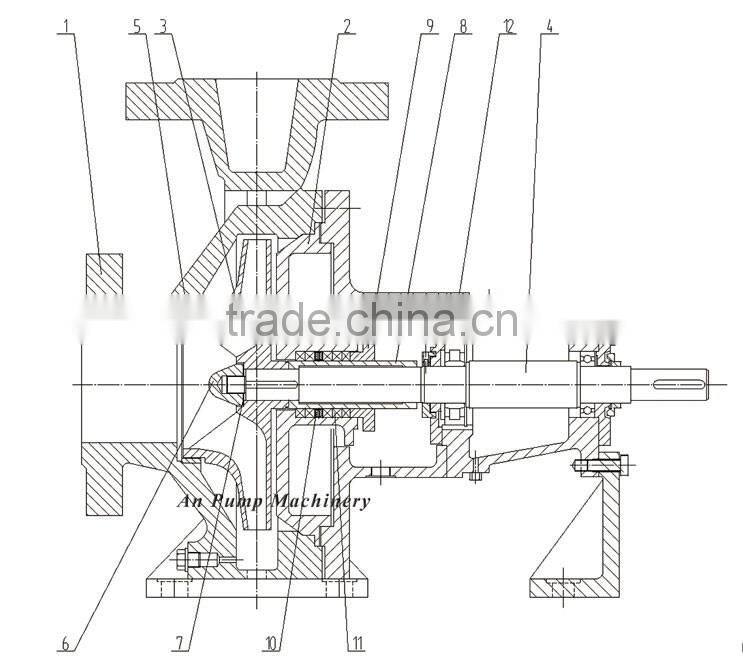

| 1. Casing | 2. Casing cover |
| 3. Impeller | 4. Shaft |
| 5. Wear ring | 6. Impeller nut |
| 7. Brake gasket | 8. Shaft sleeve |
| 9. Gland | 10. Water seal ring |
| 11. Packing | 12. Bearing bracket |

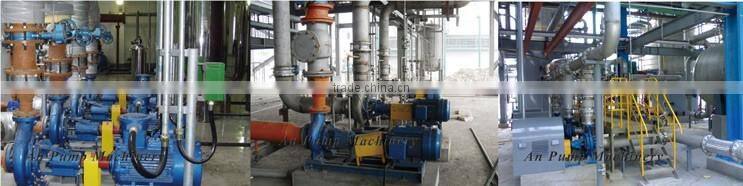

♦ urban water supply and drainage |
♦ central heating system water supply and sewerage |
♦ iron and steel metallurgy enterprises |
♦ paper mills |
♦ petrochemical refineries |
♦ oil fields |
♦ construction of thermal power plants and power stations |
♦ airports, chemical factories |
♦ textile mills, sugar factories |
♦ chemical plants, power stations |
♦ mines |
♦ farmland drainage irrigation and hydraulic engineering. |
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
