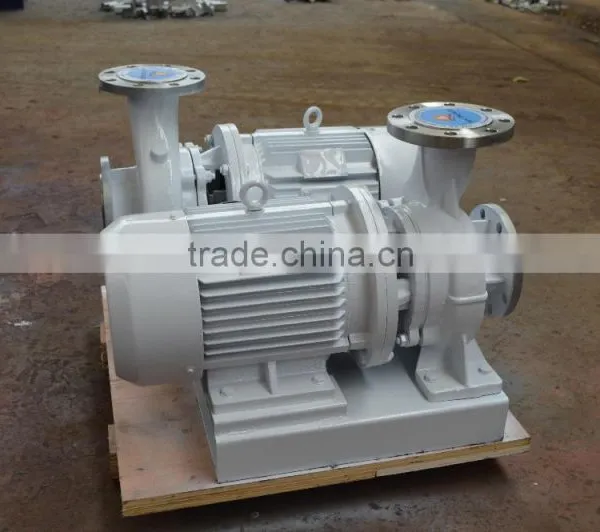

End Suction Clean Water Centrifugal Electric Pump
Type IS horizontal end suction pump is single stage end suction (axial suction) centrifugal pump, It transports the clean water or other liquid which chemical & physical feature is similar with clean water, and the temperature should not be higher than 80º C, and applicable for industrial and city water supply and drainage as well as for the agricultural irrigation and drainage
Technical Data
1) Max. flow: 400m3/h
2) Ma. head: 125m
3) Max. temperature: IS≤80ºC, IR≤120ºC
4) Allowed suction pipeline pressure is 0.3Mpa, the highest using pressure: 1.06Mpa
Detailed specification:
Item |
Centrifugal water pump |
Pump type |
End Suction Pump |
Model |
MS |
Materials |
Cast iron,SS 304,SS316L,Bronze etc |
Driven Type |
Electric motor or Diesel engine |
Structure |
Horizontal end suction pump |
Seal |
Packing seal or Mechanical seal |
Drive |
Coupling |
Rotate |
Clockwise |
Theory |
Centrifugal Pump |
Structure |
Single-stage Pump |
Usage |
water |
Standard or Nonstandard |
Standard |
Application |
Irrigation,Water supply,Fire fighting |
Outlet Diameter |
25-450mm |
Capacity |
3.4-1200 m3/h |
Head |
3.7-135m |
Rotation Speed |
980-2950r/min |
Power |
7.5-185kW |
Certificate |
ISO9001 |
Feature |
High efficiency,Easy maintenance |
An Pump Machinery is your Best QI End Suction Water Pump Manufacturer
