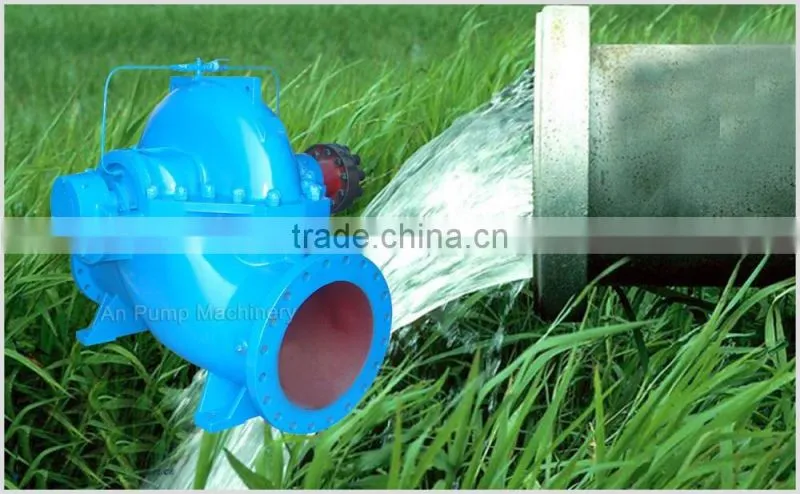

Single stage Farm irrigation direct drive split case water pumps
The pump of type QSis a single stage, double suction centrifugal for pumping clean water and the other liquids physically and chemically similar to the clean water. The temperature of liquid shall not be over 80℃. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.
General Description of Single stage Farm irrigation direct drive split case water pumps :
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.
Structural Features of Single stage Farm irrigation direct drive split case water pumps:
1. Compact structure, space effective and much shorter axial dimensions.
2. Small vibration and low noise, achieved mainly by means of the follow:
A. The pump casing adopts the double-volute structure.
B. The rotor part has short axial dimensions and a good rigidity.
C. The pump shaft adopts the imported high-precision bearing for the support.
Farm irrigation water pump Working Conditions:
The maximum working pressure of volute double-suction pump system is 2.5Mpa, namely pump inlet pressure plus pump lift head≤ 2.5Mpa, and the test pressure of pump static pressure is 3.75Mpa.
According to the maximum pressure that the pump body can bear, the materials for body and bonnet adopt the grey cast iron(1.6Mpa), spheroidal graphite cast iron(2.0Mpa)and cast steel (2.5Mpa).
Please note the pump's bearing pressure or materials in the order.
This series of pump can transport the clear water or other liquids with similar physical and chemical properties as clear water with temperture T≤ 105 deg C.

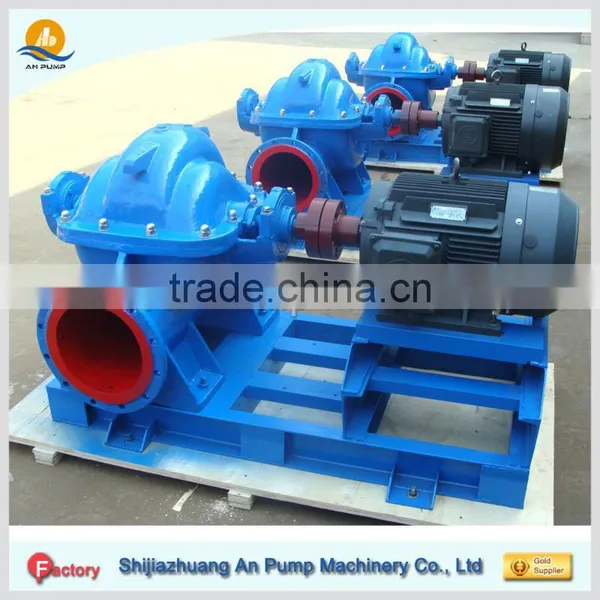

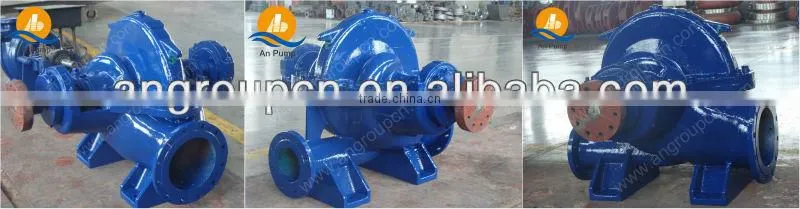

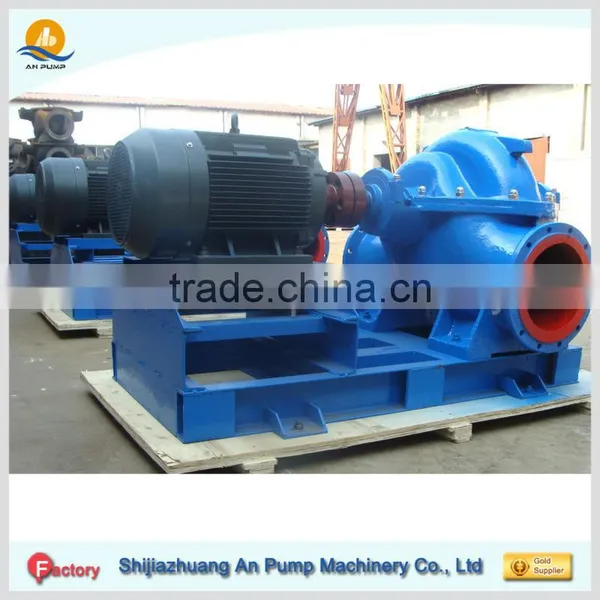

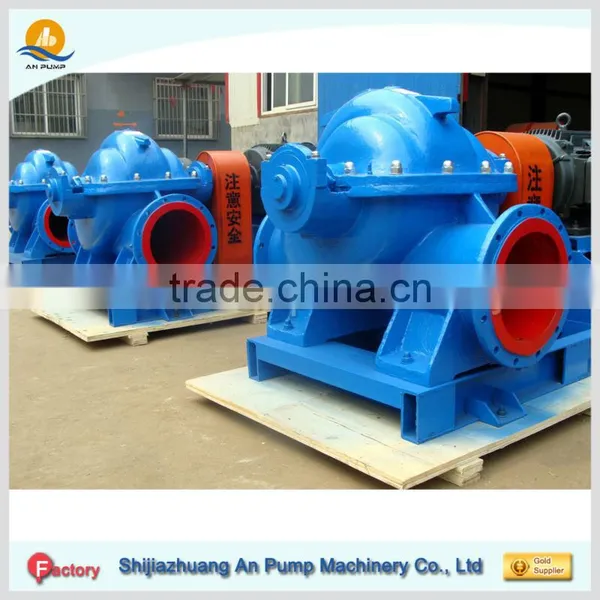

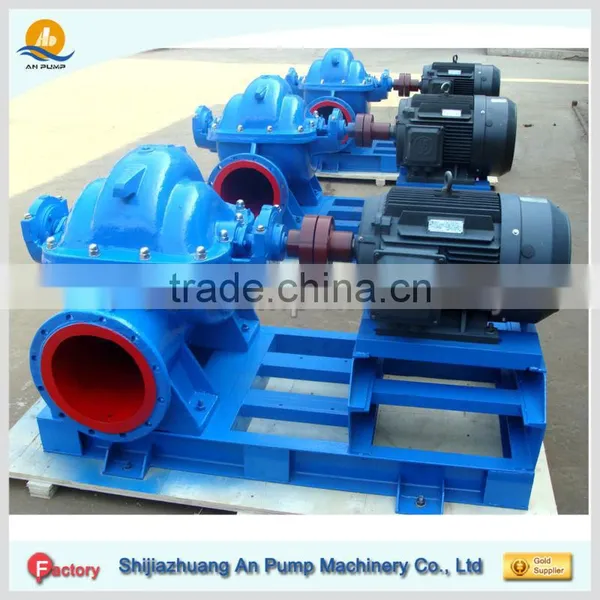

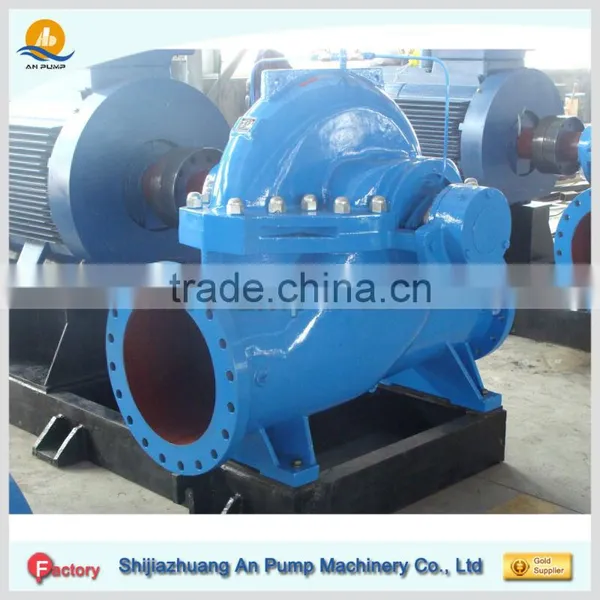

Split casing pumps show
Standard wooden case packing of Single stage Farm irrigation direct drive split case water pumps
Your 24x7 manufacturer team and service for Single stage Farm irrigation direct drive split case water pumps:
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
An Pump Machinery is your Best Farm Irrigation Pump Manufacturer
An Pump Machinery Co. ,Ltd is the water pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Pump Manufacturer
An Pump Machinery is also CE cerficated and ISO certificated Split casing water Pump Manufacturer
24x7 service for your Single stage Farm irrigation direct drive split case water pumps:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
