Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QS split case water Pump |
Theory: | Other, Centrifugal Water Pump | Structure: | Other, Single Stage Water Pump | Usage: | Other, Irrigation, Fire Fight, Civiel Engine Split case water Pump |
Power: | Other, Electric Water Pump | Standard or Nonstandard: | Other, Stand Water Pump | Fuel: | Other, Split Case Pump Diesel Engine diesel or electric optional |
Pressure: | Other, High Pressure Split Case Pump | Application: | Other, water,sewage |
Product Description

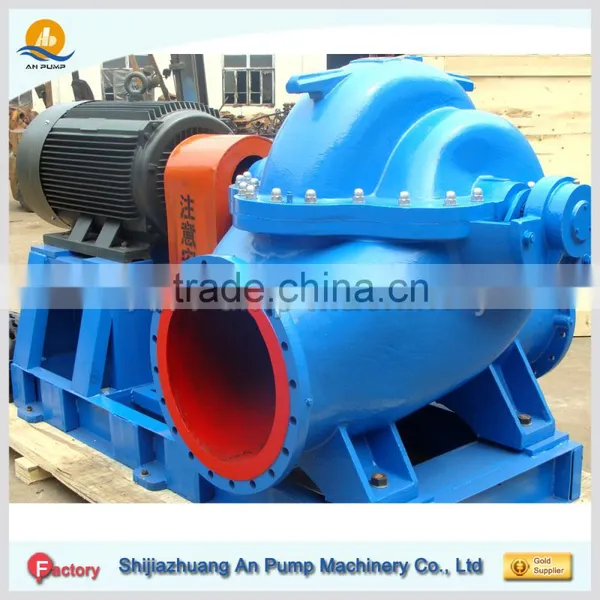

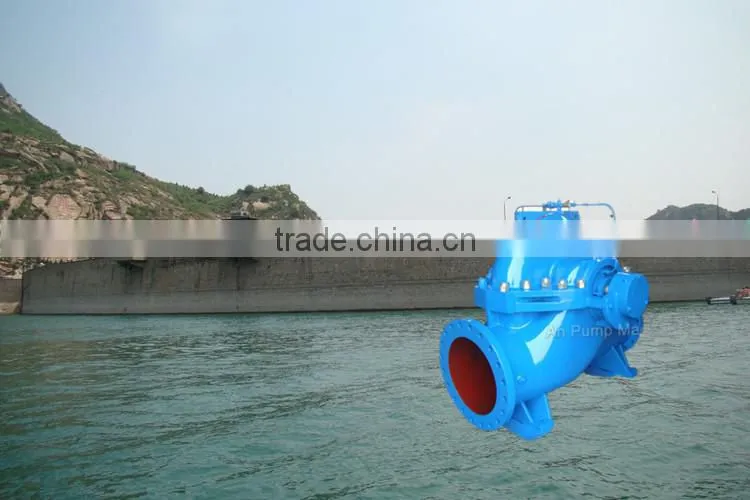

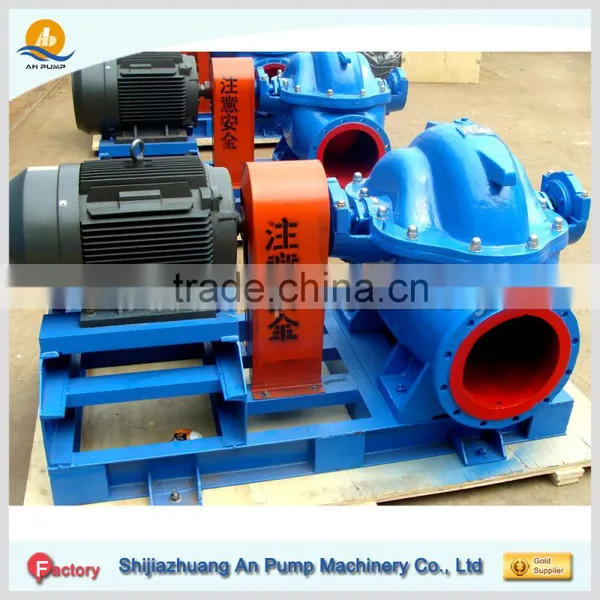

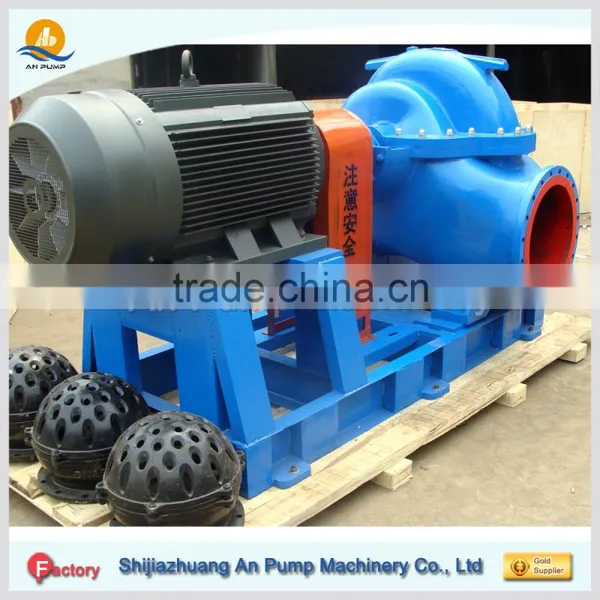

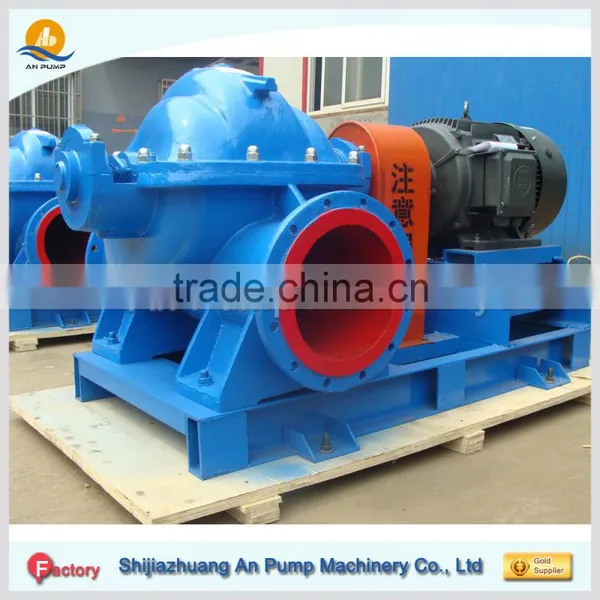

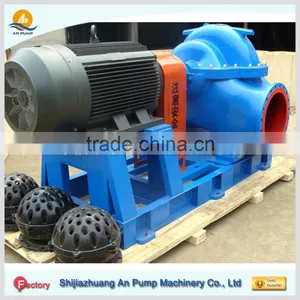

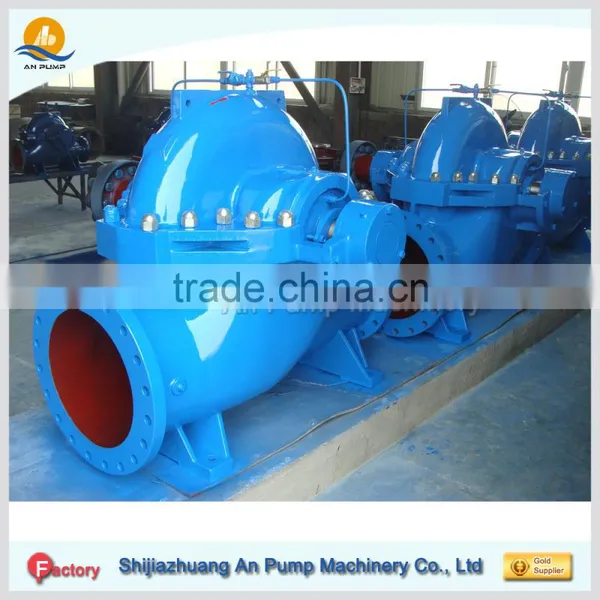

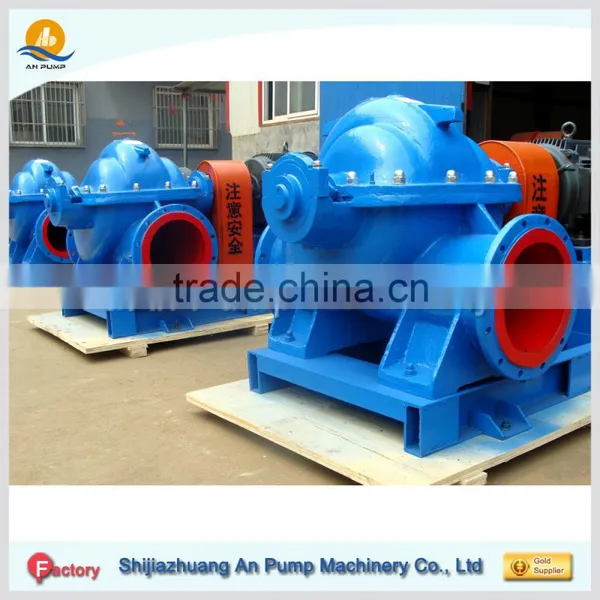

Single stage double suction split case water Pump
General Description of double-suction split case water Pump
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.

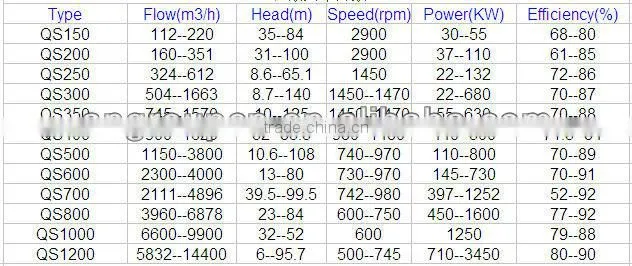

double-suction split case water Pump Performance parameters
split case water Pump Structural Features
A. Compact structure, space effective and much shorter axial dimensions.
B. Small vibration and low noise, achieved mainly by means of the follow:
1) The pump casing adopts the double-volute structure
2)The rotor part has short axial dimensions and a good rigidity.
3)The pump shaft adopts the imported high-precision bearing for the support.
Split case water Pump Working Conditions
The maximum working pressure of volute double-suction pump system is 2.5Mpa, namely pump inlet pressure plus pump lift head≤ 2.5Mpa, and the test pressure of pump static pressure is 3.75Mpa.
According to the maximum pressure that the pump body can bear, the materials for body and bonnet adopt the grey cast iron(1.6Mpa), spheroidal graphite cast iron(2.0Mpa)and cast steel (2.5Mpa).
Please note the pump's bearing pressure or materials in the order.
This series of pump can transport the clear water or other liquids with similar physical and chemical properties as clear water with temperture T≤ 105 deg C.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing
, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water
pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump,
submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,
end suction pump, self priming pump, pump parts and ancillary equipment). which can satisfy different kinds of demands.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
24x7 service for your single stage double suction split case water Pump:
