Large Capacity Horizontal Split Casing Water Pump

Large Capacity Horizontal Split Casing Water Pump

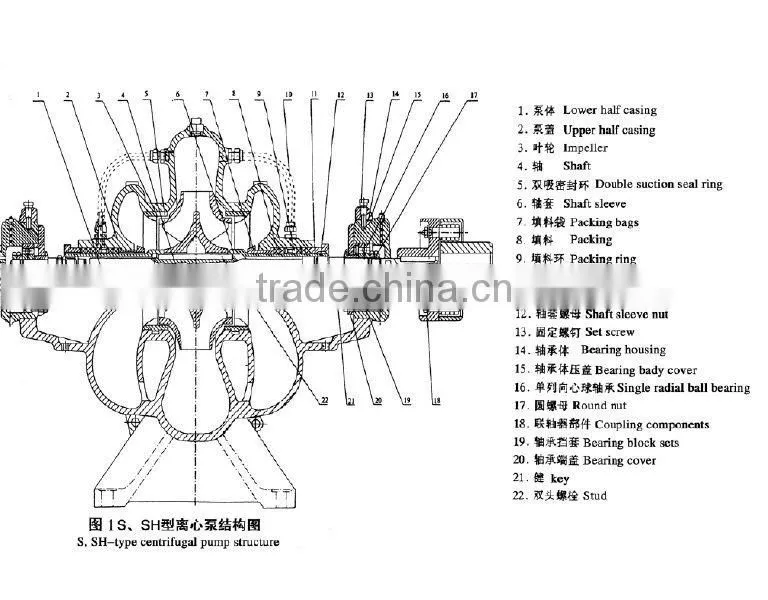

Type QS,QSH pumps are single stage, double suction with horizontally split casings.

Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.

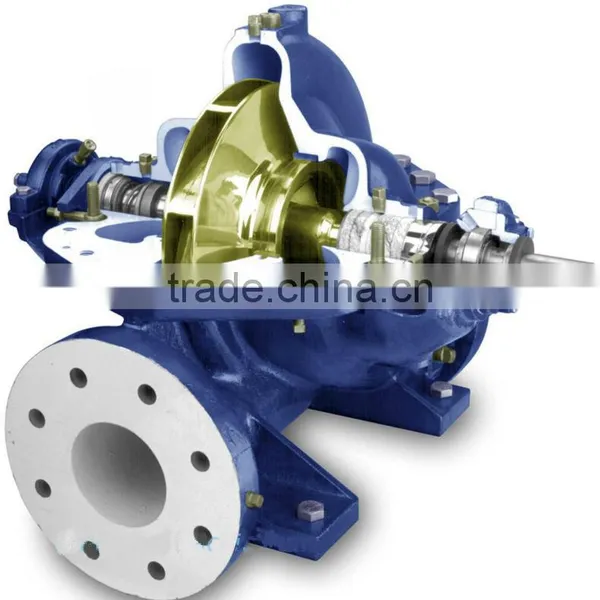

Split Csaing water Pump Structural Features:

1. Compact structure, space effective and much shorter axial dimensions.
2. Small vibration and low noise, achieved mainly by means of the follow:
A. The pump casing adopts the double-volute structure;
B. The rotor part has short axial dimensions and a good rigidity.
C. The pump shaft adopts the imported high-precision bearing for the support.

Split Csaing water Pump Working Conditions:

The maximum working pressure of volute double-suction pump system is 2.5Mpa, namely pump inlet pressure plus pump lift head≤ 2.5Mpa, and the test pressure of pump static pressure is 3.75Mpa.

According to the maximum pressure that the pump body can bear, the materials for body and bonnet adopt the grey cast iron(1.6Mpa), spheroidal graphite cast iron(2.0Mpa)and cast steel (2.5Mpa).

Please note the pump's bearing pressure or materials in the order.

This series of pump can transport the clear water or other liquids with similar physical and chemical properties as clear water with temperture T≤ 105 deg C.
