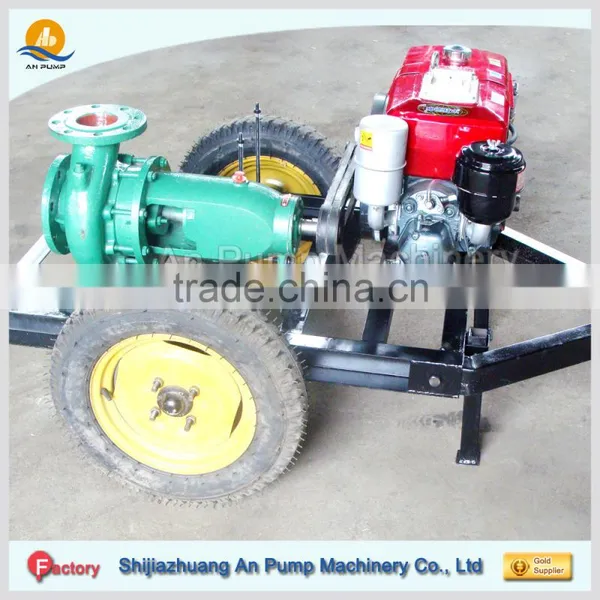

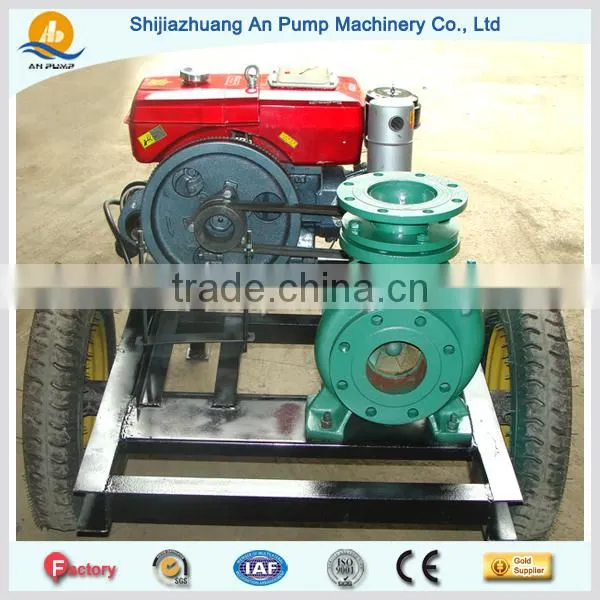

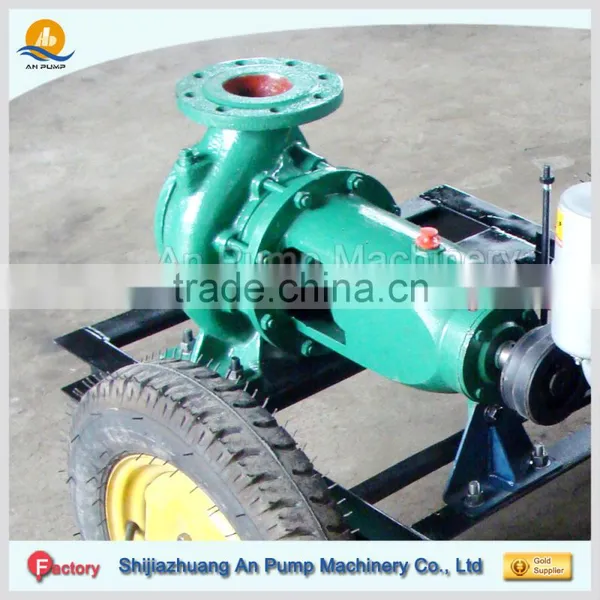

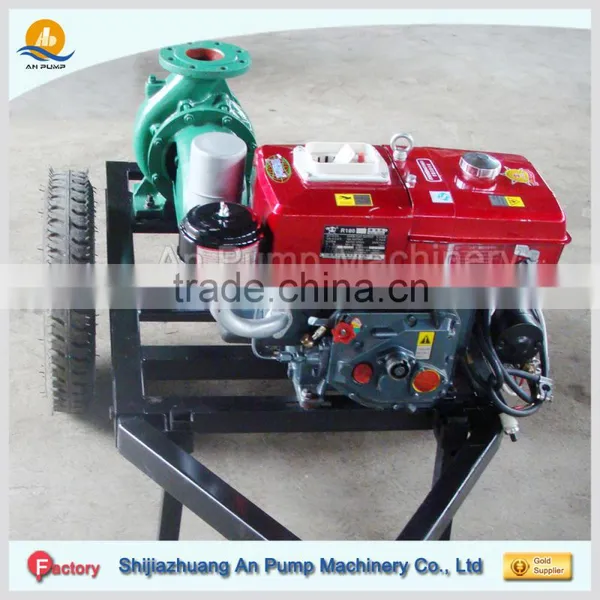

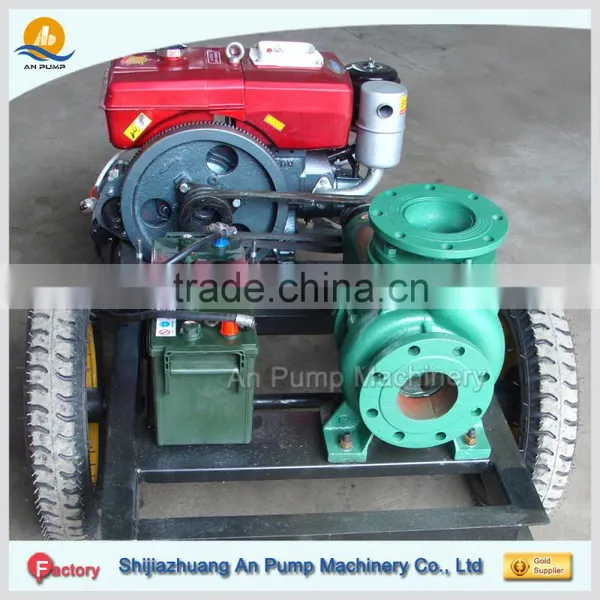

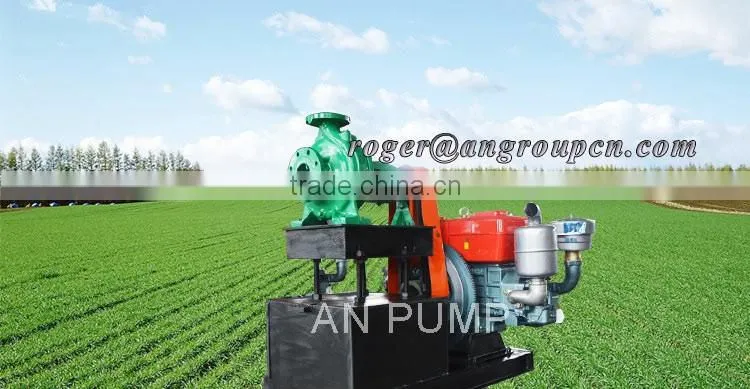

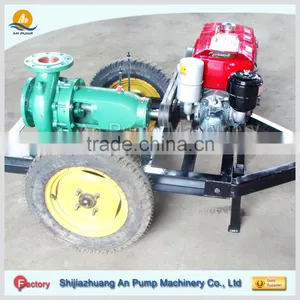

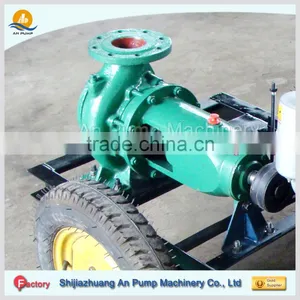

3hp diesel high pressure cpm 158 clean water pump
- 350 Set / Sets per Month
- Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QI 3hp diesel high pressure cpm 158 clean water pump |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, 3hp diesel high pressure cpm 158 clean water pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Other, standard | Application: | Other, 3hp diesel high pressure cpm 158 clean water pump |
Product Description
3hp diesel high pressure cpm 158 clean water pump
>>End suction pump application
Domestic Water Supply
Fire Fighting
Circulation for Air-condition System
Agricultural Irrigation
Industrial Water Supply
Sea Water Pumping
Drainage
Municipal Projects
>>End suction pump performance data
Type | Flow | Head | Power |
QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
QI150 | 99-240 | 12.4-57.5 | 15-55 |
QI200 | 197.7-460 | 14.8-55.8 | 30-90 |
>>End suction pump information
End suction pump description:
QI model pump is single-stage end-suction(axial suction) cantilever type centrifugal pump,
which is used to transport corrosive liquid with viscosity similar to water and without solid
particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
It has such characteristics as wide range of performance, high efficiency, high mechanical,
chemical and physical level and convenient maintenance etc. It is energy saving type product
recommended by the nation with its efficiency being 5% greater than that of other similar model pump.
1 | Pump casing | 4 | Impeller nut | 7 | Mid bracket |
2 | Impeller | 5 | Pump cover | 8 | Shaft |
3 | Seal ring | 6 | Seal part | 9 | Hanging stand |
The temperature of transported media of QI model pump is -20 – 105 C deg . Through adopting
cooling method, it can transport media with higher temperature if necessary, and is applied to
transport various corrosive media or media in which pollution is forbidden similar to water in such
industries as chemical industry, petroleum, metallurgy , electric power, paper making, food,
pharmacy and synthetic fiber etc.
More detailed information of the end suction pump:
1.QI model pumps are the series of products designed according to ISO international standards
in all industries in China. It is mainly composed of pump body, impellers, seal rings, impeller nuts,
pump cover, seal parts, intermediate support, spindle, suspended parts and so on.
2.Structural features : the pump cover is fixed on the intermediate support, and the pump cover
is clamped in the middle by coupling between pump body and intermediate support. On the pump
body, water is input axially and output radially. Support feet can be fixed on t he bas e directly.
The suspended parts are fixed onto the intermediate support through the rabbet, and are
supported onto the base by suspended frame
3. Rotation direction: the pump is driven by motor directly through a prolonged coupling, seen from
the side of the motor, it rotates clockwise.
4. Spindle seal patterns: spindle seal patterns o f pump are of two types such as stuffing seal and
mechanical seal. The stuffing seal is that on stuffing casein pump cover , with software stuffing for
sealing, input water of a certain pressure into the stuffing case, for cooling, lubrication and cleaning
on seal; mechanical seal is of two types such as single-surface mechanical seal and double-surface mechanical seal, input water of a certain pressure into the seal chamber, for washing and
cooling on the abrased surfaces.
Seal patterns of pump are of stuffing seal or mechanical seal, according to users' requirements, in
a same time, seal chamber sizes and shaft gland patterns of other structures according to ISO3069
as required, are allowed, such as mechanical seals of corrugated pipes, assistant impeller seals and so on.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
>>An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
End suction pump | Split casing pump | Multistage pump |
