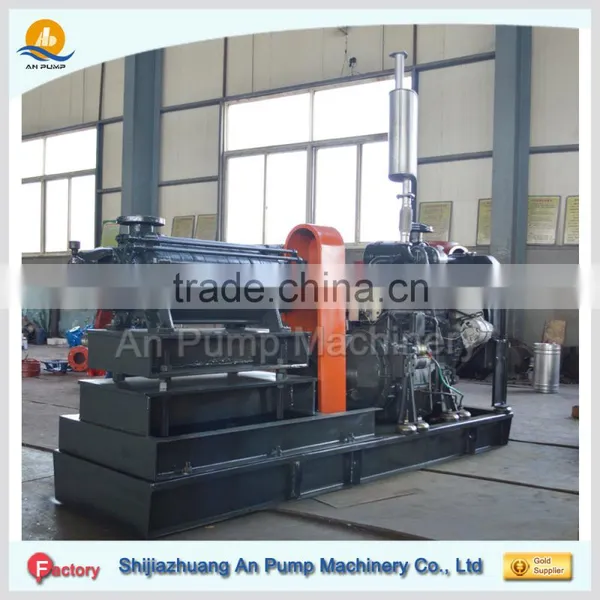

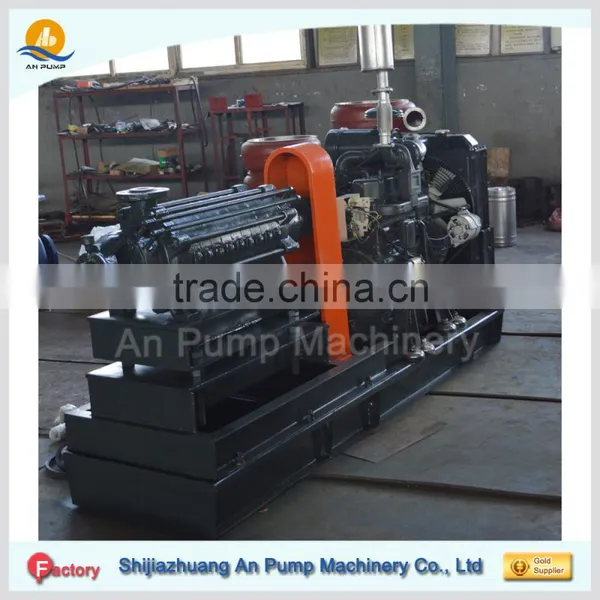

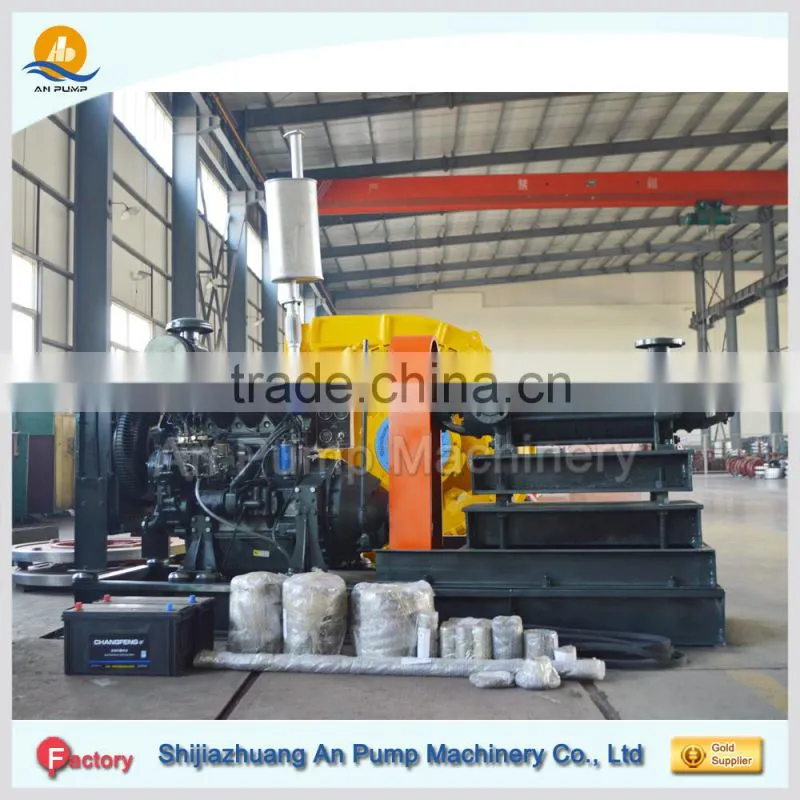

Diesel engine high pressure boiler feed water pump
Multistage centrifugal pump performance :
Type |
Flow (m3/h) |
Head (m) |
Speed (r/min) |
Eff (%) |
NPSH (m) |
Power (kw) |
1QD(g)-8 |
120-170 |
967-1040 |
2980 |
68-71 |
4.5 |
710 |
1QD(G)-9 |
120-170 |
1088-1170 |
2980 |
68-71 |
4.5 |
800 |
1QD(G)-10 |
120-170 |
1208-1300 |
2980 |
68-71 |
4.5 |
800 |
1QD(G)-11 |
120-170 |
1330-1430 |
2980 |
68-71 |
4.5 |
1000 |
1QD(G)-12 |
120-170 |
1450-1560 |
2980 |
68-71 |
4.5 |
1000 |
2QD(G)-8 |
200-280 |
1184-1344 |
2980 |
74-75 |
5 |
1400 |
2QD(G)-9 |
200-280 |
1330-1512 |
2980 |
74-75 |
5 |
1600 |
2QD(G)-10 |
200-280 |
1480-1680 |
2980 |
74-75 |
5 |
1600 |
3QD(g)-10 |
360-496 |
1470-1660 |
2985 |
80.1-82.4 |
8 |
2500 |
4QD(G)-8C |
500-600 |
1580-1670 |
2985 |
77-80 |
10 |
3400 |
5QD(G)-10 |
500-620 |
2100-2210 |
2987 |
80-82 |
10 |
4800 |
QD(G)270-140B |
270-440 |
1422-1570 |
2985 |
74-78 |
5 |
2300 |
QD(G)270-140C |
270-440 |
1460-1750 |
2985 |
75.5-79 |
5 |
2300 |
QD(G)400-180B |
245-415 |
1800-1940 |
4640 |
80-82 |
12 |
3200 |
QD(G)400-180C |
400-500 |
1815-1975 |
2985 |
77-79 |
12 |
4000 |
QD(G)450-180 |
400-500 |
1700-1920 |
4640 |
75-79 |
23.5 |
3200 |
QD(G)500-140 |
450-550 |
1400-1540 |
4640 |
75-79 |
23.5 |
3200 |
QD(G)600-230 |
540-650 |
2260-2500 |
5410 |
82-86 |
23.5 |
4800 |
QD(G)700-170 |
600-740 |
1640-1810 |
5000 |
80-84 |
23.5 |
4500 |
QD(G)1000-220 |
900-1100 |
2100-2320 |
5255 |
82-86 |
23.5 |
8000 |
Multi-stage Pump Introduction:
Multi-stage section centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise, long life and installing & repairing is very convenient etc. It can deliver heat water, oil, corrosive or wear albe medium by changing the material, seal or adding cooling system.
Application:
1) Water supply and discharge in high-rise buildings
2) Fire water supply in constructions
3) Water supply and discharge in factories and mines
4) Long distance delivery
5) Cyclic pressurization in production
Our Factory:
Our product:
Packing
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Strong , experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps. An Pump Machinery technical team set up five R & D teams: hydraulic engineering, water pump structure, new materials research and development, casting, molding etc. Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software. They combine years of experience in the practical application of the products, repeated use of water conservancy GIS, MIS software and simulation analysis system software demonstrated, calculations, the theoretical calculations product of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps are accurate and consistent with the actual performance. It allowing users to meet the needs while significantly reducing the investment costs, improves An Pump Machinery Company's strong core competitiveness.
| End suction pump | Split casing pump | Multistage pump |
|
|
|
