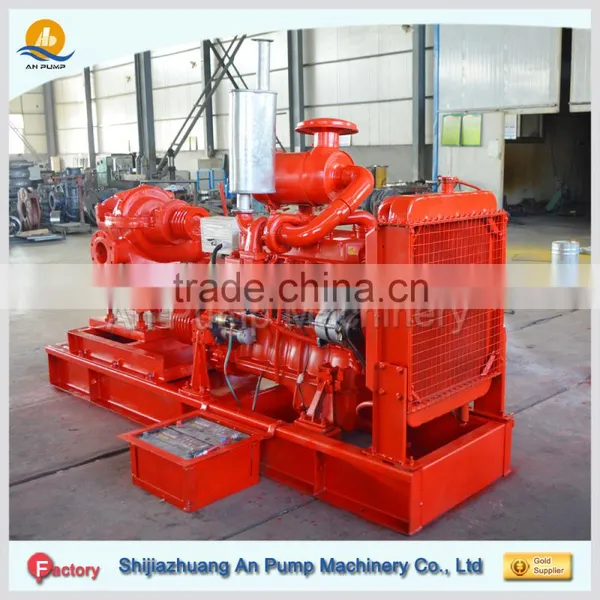

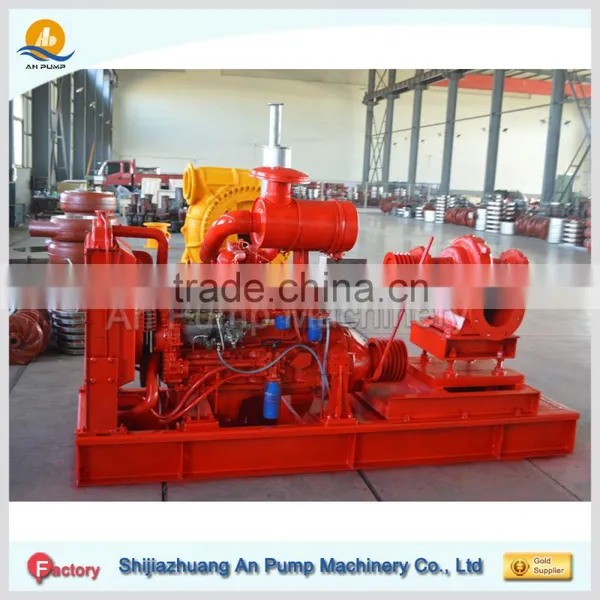

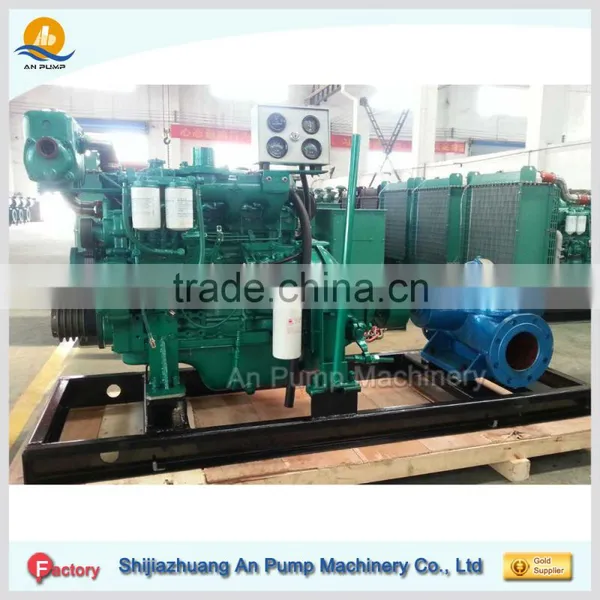

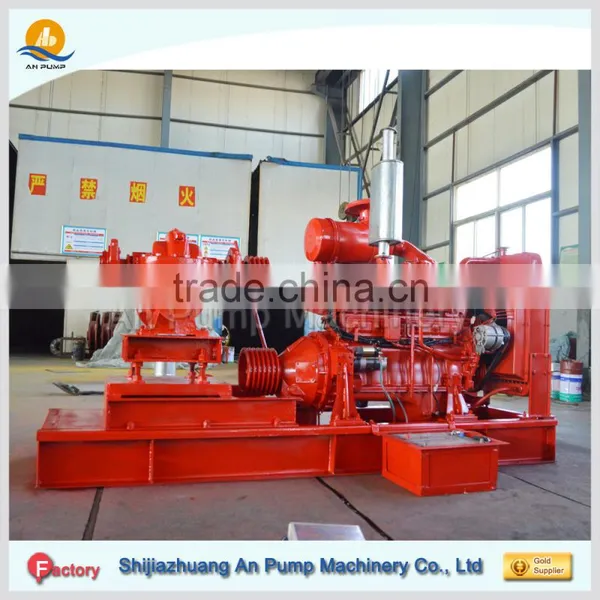

Peaktop Farm Split Case 100 hp diesel engine agricultural irrigation water pump

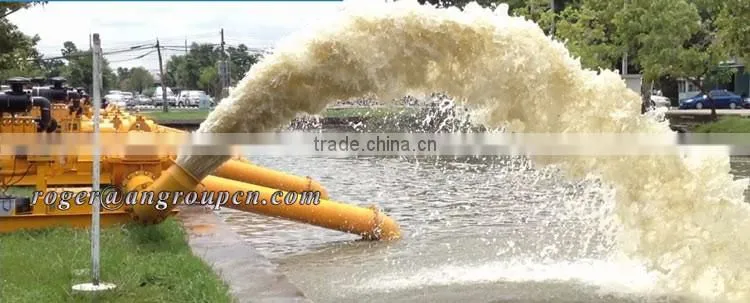

>>Peaktop Farm Split Case 100 hp diesel engine agricultural irrigation water pump application
Type QS,QSH pumps are single stage, double suction with horizontally split casings and
adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or
drainage services in agriculture, etc.
>>Peaktop Farm Split Case 100 hp diesel engine agricultural irrigation water pump performance data
Model |
Flow rate (m3/hr) |
Head (m) |
Speed (rpm) |
Power (kw) |
Eff (%) |
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
67~85 |
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
72~92 |
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |
>>Peaktop Farm Split Case 100 hp diesel engine agricultural irrigation water pump information

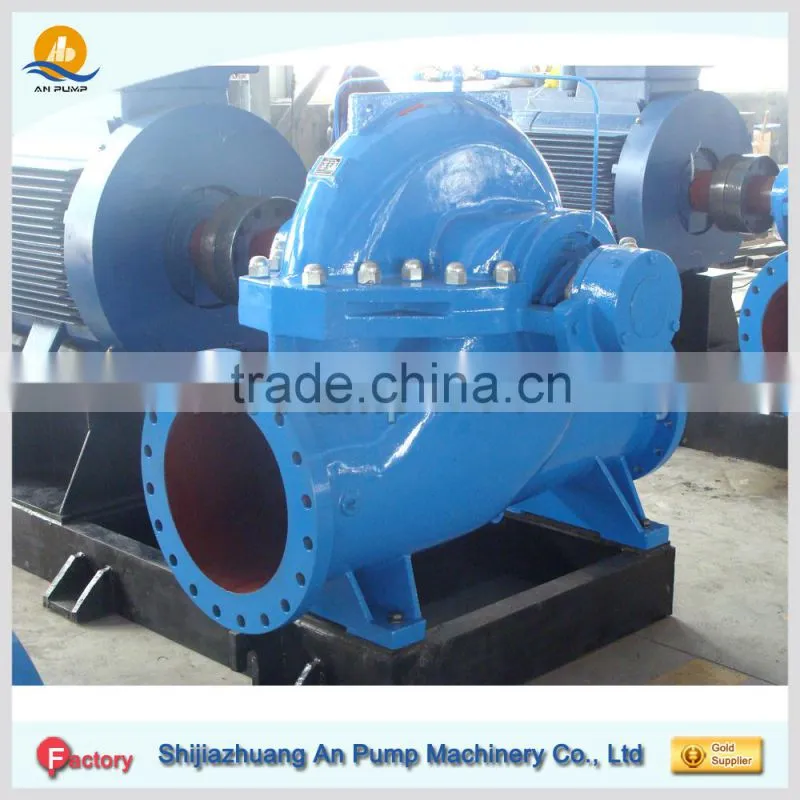

Model QS pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both
physical and chemical nature similar to those of water, the maximum temperature of which must
not be over 125℃ , suitable for water supply and drainage in factories, mines, cities and electric
stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.
Both inlet and outlet of this pump are placed under the axial line, horizontally and vertical to the
axial line, the pump casing is opened in the middle, so it is unneccessary to remove the water inlet
and outlet pipelines and motor(or other prime movers). The pump moves CW viewing from the
clutch to it. The pump moving CCW can also be made.
>>Peaktop Farm Split Case 100 hp diesel engine agricultural irrigation water pump main parts

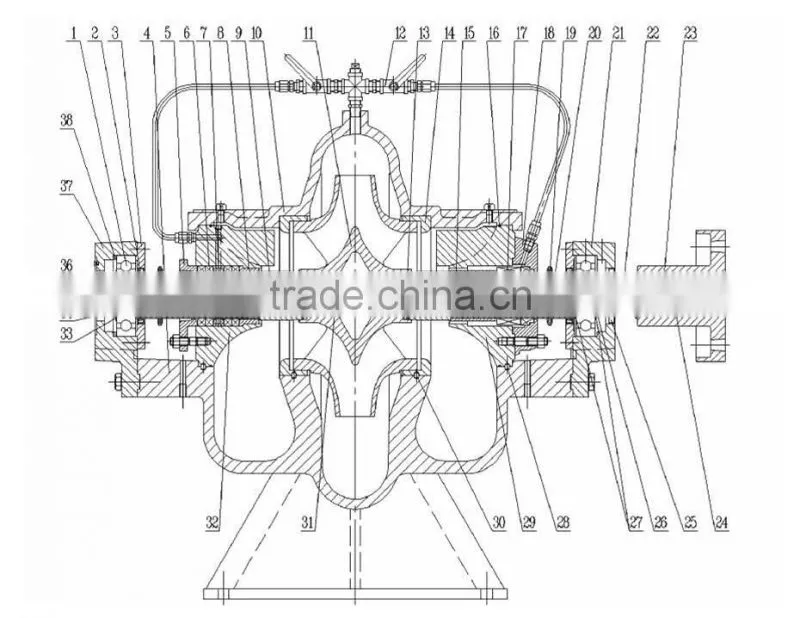

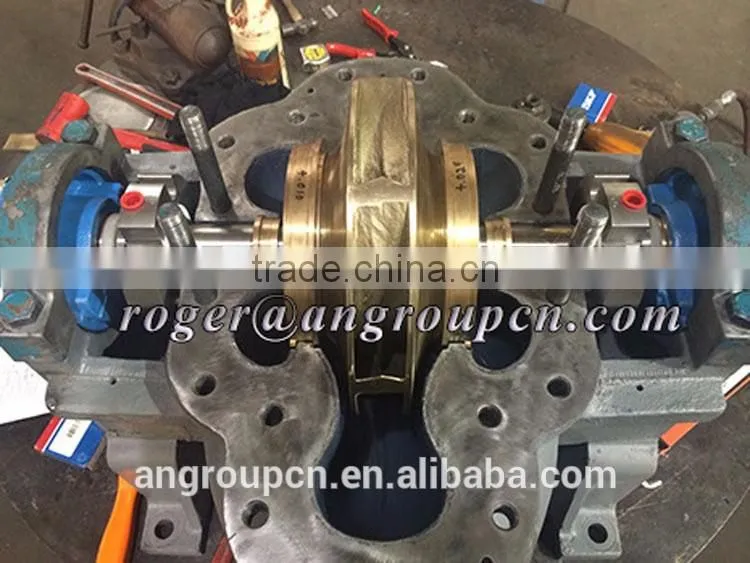

The main parts of the pump are: pump casing, pump cover , impeller , shaft, dual-suction seal ring, muff, bearing etc.
The impeller is static-balance calibrated, fixed with the muff and the muff nuts in both sides and its axial position can
be adjusted via the nuts and axial force gets balanced by means of the symmetrical arrangement
of its blades.
1.Bearing |
2.Framework oil seal |
3.Bearing gland |
4.Pump casing |
5.Packing gland |
6.Packings |
7.Packing ring |
8.Packing sleeve |
9.Shaft sleeve |
10.Pump cover |
11.Impeller |
12.Washing pipe |
13.O ring |
14.Seal ring for casing |
15.Mechanical seal liner |
16.O ring |
17.Mechanical seal |
18.Mechanical seal gland |
19.Water retaining ring |
20.O ring |
21.Bearing housing at driven end |
22.Shaft |
23.Couplings |
24.C type key |
25.Framework oil seal |
26.Shaft ring |
27.Bearing junk ring |
28.Cylindrical pin |
29.Mechanical seal |
30.Cylindrical pin |
31.B type key |
32.Packing seal |
33.Seal |
34.Round nut lock washer |
35.Round nut |
36.Bearing inner liner |
37.Pump end bearing housing |
38.Bearing spacer |
||||
The pump shaft is supported by two single-column centripetal ball bearings, which are mounted inside of the bearing body on both ends of
the pump and lubricated with grease. The dual-suction seal ring is used to reduce the leak at the impeller.
The flexible couplings connect the pump with the motor directly. For pumps driven by belt, there
must be an intermediate bracket fitted for supporting the belt pulley.

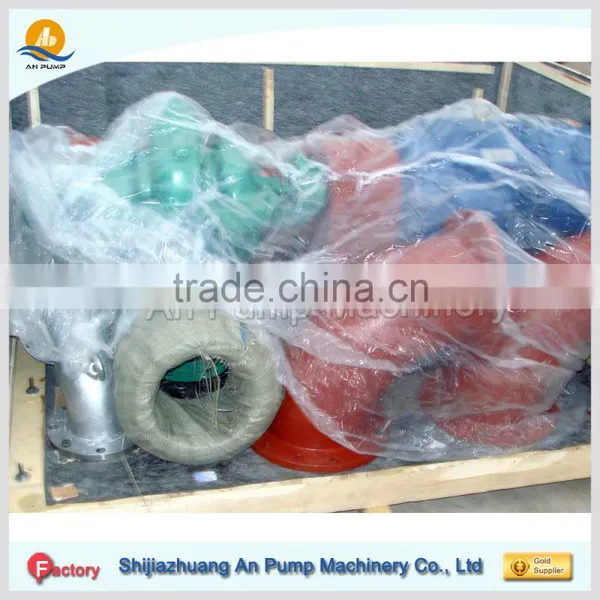

Standard wooden case packing
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
| End suction pump | Split casing pump | Multistage pump |
|
|
|
