Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 6 Inch Diesel High Pressure Water Pump

6 Inch Diesel High Pressure Water Pump

US$ 1,100 - 12,530 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Y&L

Model Number:

D/DF/DY/MD

Contact Supplier Request Quote Chat Now

Shanghai Y&L Pump Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Y&L

Model Number D/DF/DY/MD

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Other, Water Pressure

6 inch diesel high pressure water pump

Product Description

1. Pump Introduction

This series of pump is horizontal multistage single suction centrifugal water pump. This pump is efficient , reliable, and durable with low noise performance, easy maintenance and wide scope of usages. We specialize in manufacturing D, DF, DY and MD series of single-suction multistage centrifugal pumps. The pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.While oily and corrosive or solid contained fluid can be pumped by means of material modification, sealing methods, and cooling system adding.

D type : Used for transmission of water free of solid particles and temperature below 80℃ , or similar physical and chemical liquid . Suitable for mining ,mill and city water supply and drainage .

DF type : Used for transmission of corrosive liquid with temperature range for -20℃ ~105 ℃ and non-solid particles material ,sealing methods ,structure of the pump and motor model can be determined by medium , gravity ,density ,working temperature and the suction pressure .

DY type : Used for transmission of non- solid oily liquid and petroleum product with temperature range of -20℃ ~105 ℃ and viscosity less than 120sST .

MD type : Used for transmission of neutral liquid from mining well or other similar liquid .The density and size of particles of the sewage shall be less than 1.5 % and 0.5 mm respectively . The temperature range of the sewage shall be -20℃ ~80 ℃ .

2. Specification Table

150 D(DF,DY,MD) 30× (2-10)
Stage	Capacity		Head	Rating Speed	Efficiency	Shaft power	Impeller Dia	Pump Weight	Motor Weight
	Capacity		Head	Rating Speed	Efficiency	Shaft power	Impeller Dia	Pump Weight	Motor Weight
	m3/h	L/s	m	r/min	%	KW	mm	kg	kg
2	119	33	64	1480	69.5	29.8	φ305	476	325
	155	43	60		75	33.71
	190	52.8	54		76	36.95
3	119	33	96	1480	69.5	44.7	φ305	546	500
	155	43	90		75	50.57
	190	52.8	81		76	55.42
4	119	33	128	1480	69.5	59.6	φ305	617	550
	155	43	120		75	67.42
	190	52.8	108		76	73.9
5	119	33	160	1480	69.5	74.5	φ305	687	875
	155	43	150		75	84.28
	190	52.8	135		76	92.37
6	119	33	192	1480	69.5	89.4	φ305	757	950
	155	43	180		75	101.1
	190	52.8	162		76	110.8
7	119	33	224	1480	69.5	104.3	φ305	827	1070
	155	43	210		75	118.0
	190	52.8	189		76	129.3
8	119	33	256	1480	69.5	119.2	φ305	897	1190
	155	43	240		75	134.8
	190	52.8	216		76	147.8
9	119	33	288	1480	69.5	134.1	φ305	968	1190
	155	43	270		75	151.7
	190	52.8	243		76	166.3
10	119	33	320	1480	69.5	149.0	φ305	1038	1350
	155	43	300		75	168.6
	190	52.8	270		76	184.7

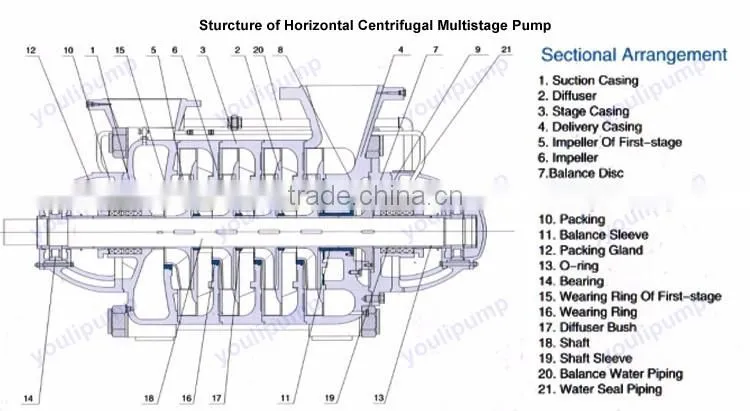

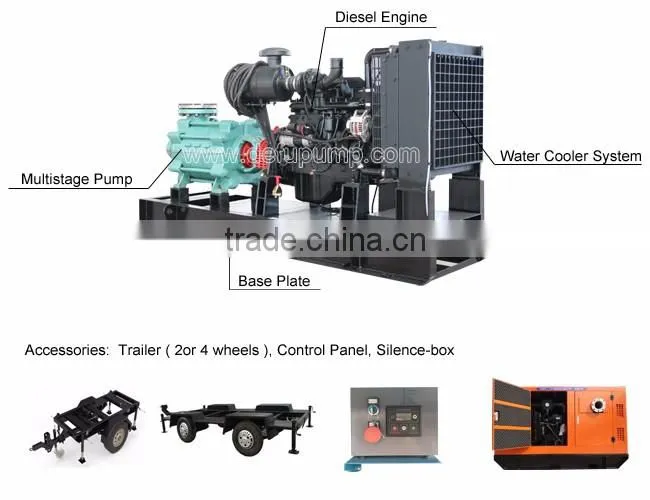

3. Pump Pictures

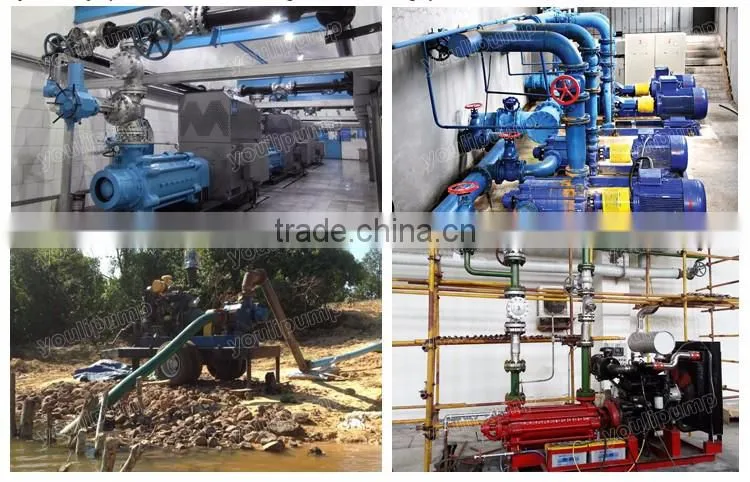

4. Application

Our horizontal multistage centrifugal water pump can be applied for transporting clear water or liquid with physicochemical property similar to that of clear water. These shall be no solid particle, abrasive material or suspended solid containing in the liquid, Particularly, this multistage centrifugal pump can be used for delivering hot water, oil , corrosive liquid or medium containing abrasive material through special employment of material, sealing more, or cooling system.
