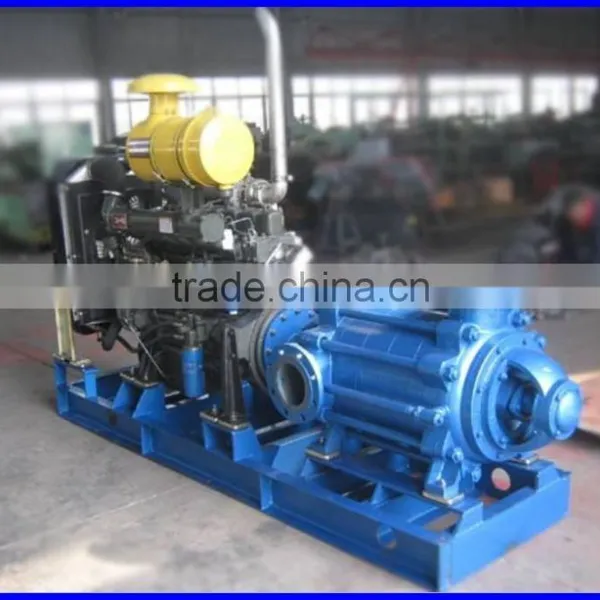

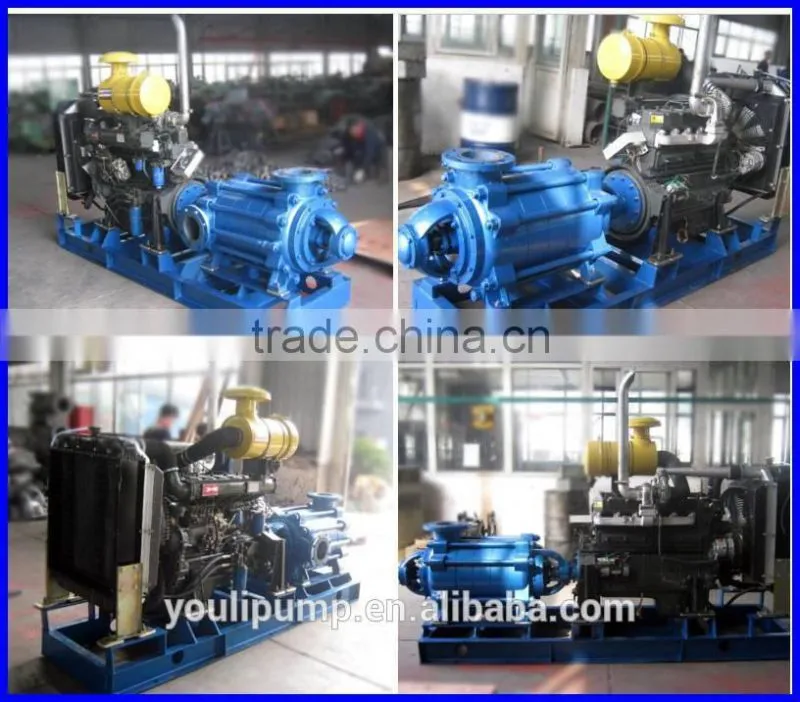

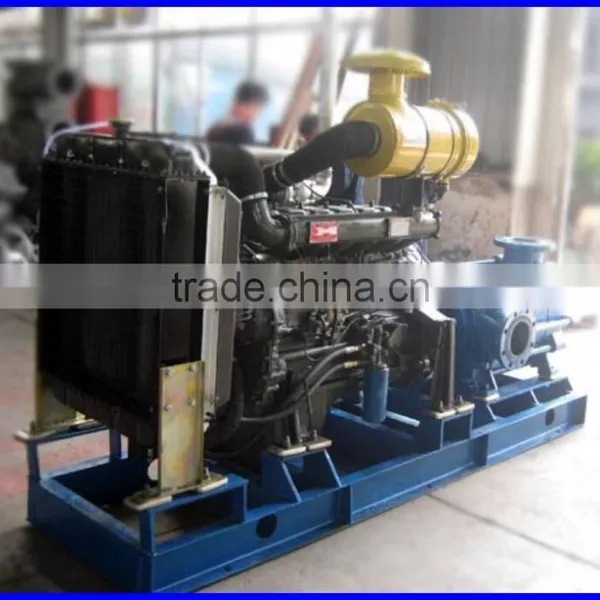

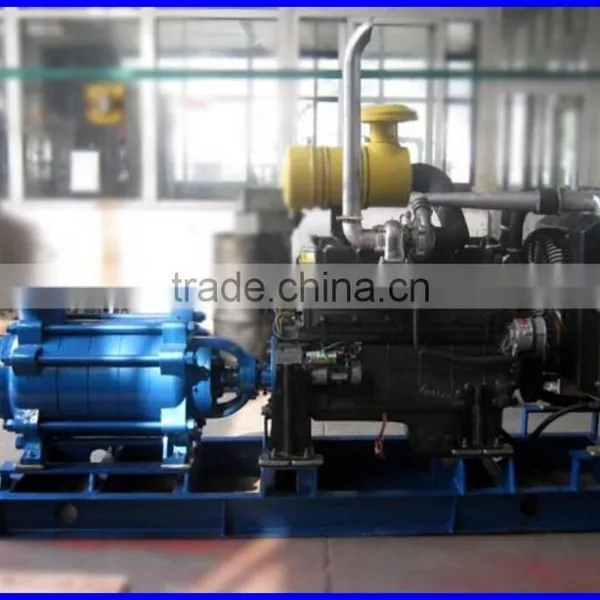

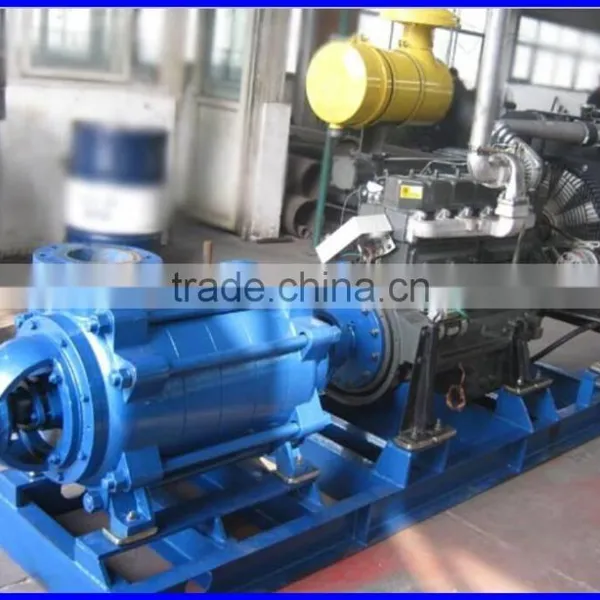

Horizontal Multistage Centrifugal Pump With Diesel Engine

This series of pump is horizontal multistage single suction centrifugal water pump. This pump is efficient , reliable, and durable with low noise performance, easy maintenance and wide scope of usages. We specialize in manufacturing D, DF, DY and MD series of single-suction multistage centrifugal pumps.

The pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance.While oily and corrosive or solid contained fluid can be pumped by means of material modification, sealing methods, and cooling system adding.

In general, complete set of diesel engine water pump will include pump+diesel engine+ PTO

(power take off clutch )+base plate+normal/intelligent control panel

Accessories: two wheels or four wheels trailer, silence-box or weather-proof, vacuum assisted system (for increasing the suction lift) etc. can be supplied according to customers' demands.

D type: Used for transmission of water free of solid particles and temperature below 80°C, or similar physical and chemical liquid. Suitable for mining, mill and city water supply and drainage.

DF type: Used for transmission of corrosive liquid with temperature range of-20°C-105°C and non-solid particles.

DY type: Used for transmission of non-solid oily liquid and petroleum product with temperature range of -20°C-105°C and viscosity less than 120cSt.

MD type: Used for transmission of neutral liquid from mining well or similar liquid. The density and size of particles of the sewage shall be less than 1.5% and 0.5mm respectively. The temperature range of the sewage shall be -20°C-80°C.

Diesel Engine: Cummins, deutz, perkins, lister peter, ricardo, Chinese etc brands engine according to customers' requirements or we recommend

Engine Type:  air cooled or water cooled engine

Connection way for pump with engine:  pin coupling (hard to hard), high elastic coupling (avoid vibration, can protect the pump set)

Installation: diretly coupling engine mounted, horizontal V-belt  type installation, vertical type

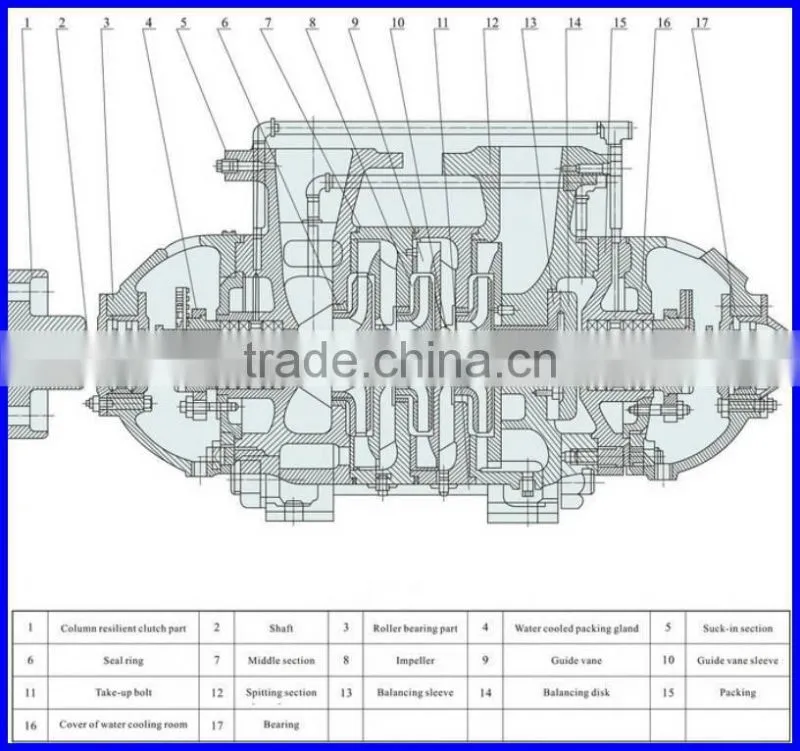

Pump Structure:

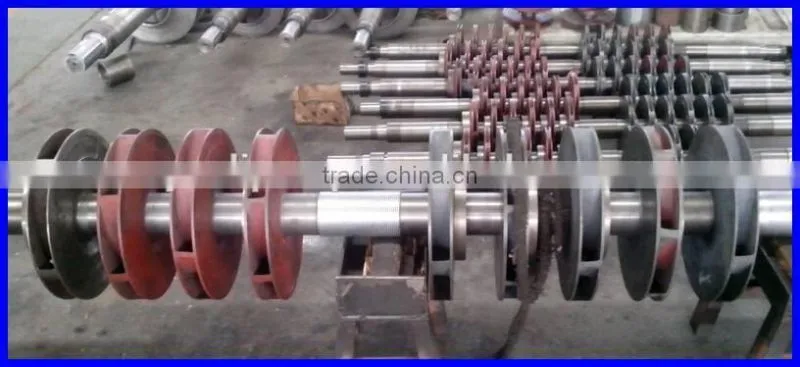

Impeller

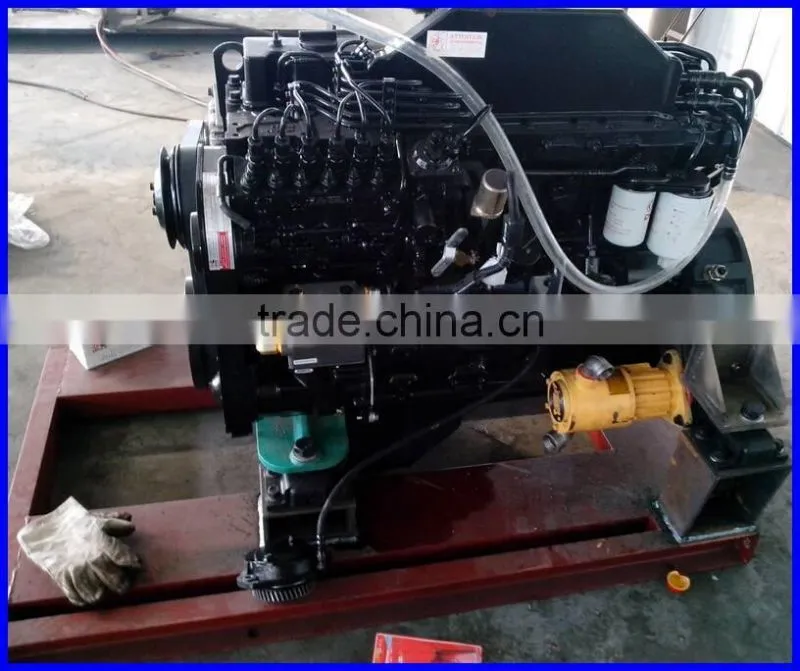

Diesel Engine

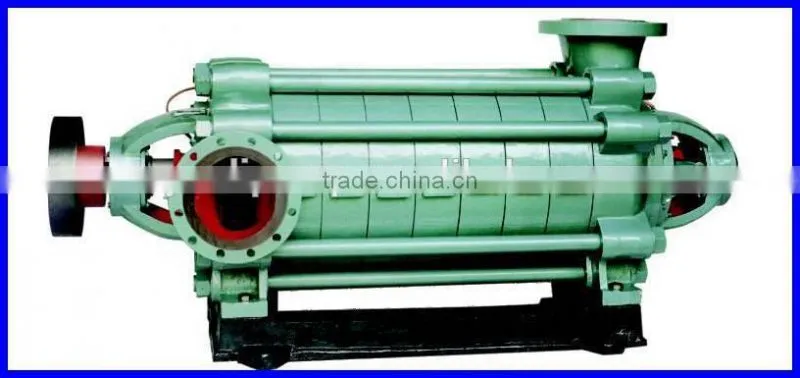

 Bare Pump

1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of pump is 7-15 working days.

2. Warranty: 1 year for the pump body, 3months for the main working parts.

3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.

4. Shipping: By Sea or By Air.

5. Payment: we can accept T/T, L/C, West Union and so on.

6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.

7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.

8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.

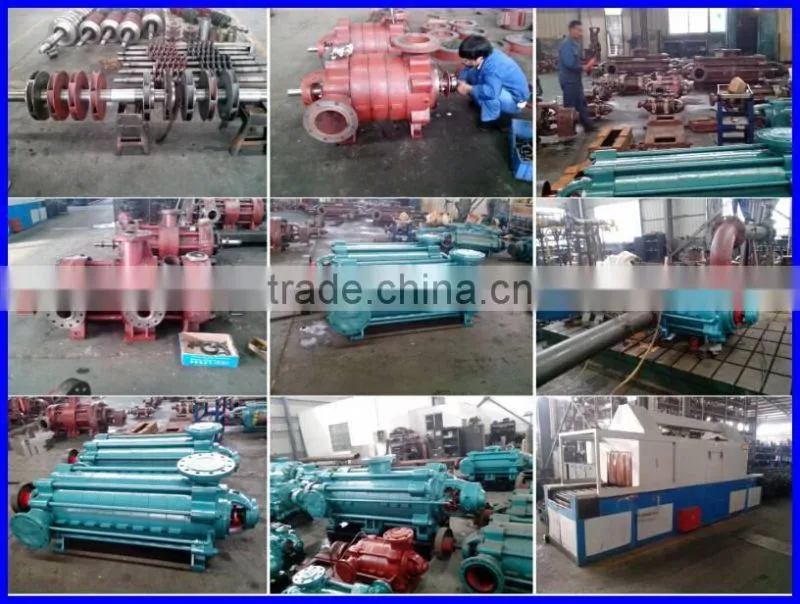

Line of Production For Pumps

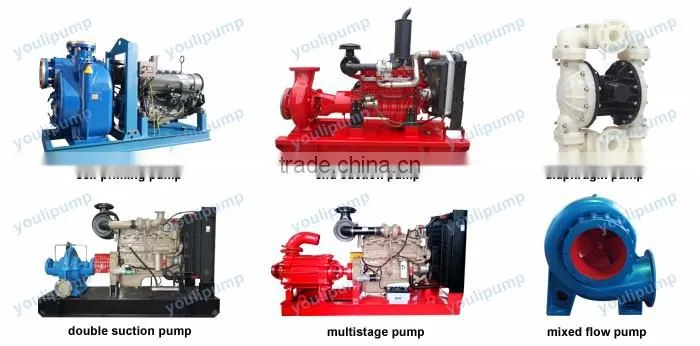

More Products---Click Here
