Horizontal Multistage Pump For Hot Water

 HOT PRODUCTS IN 2015!

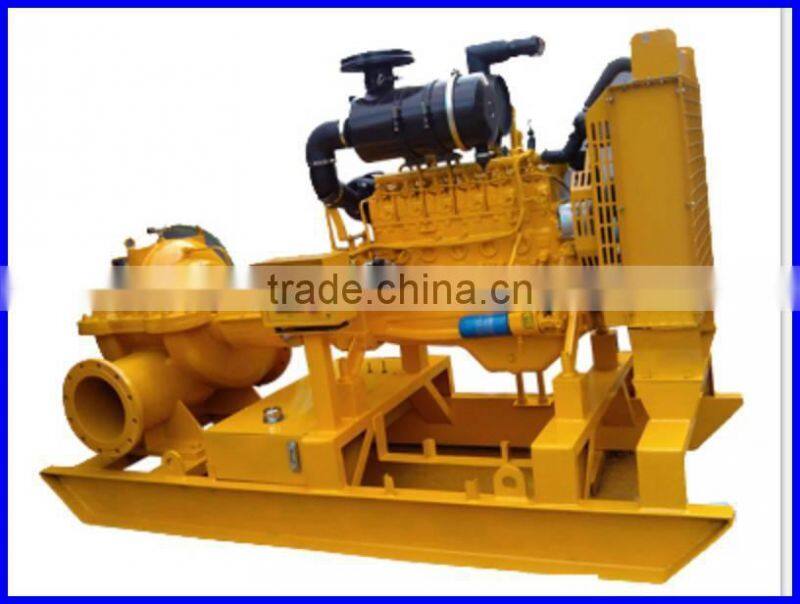

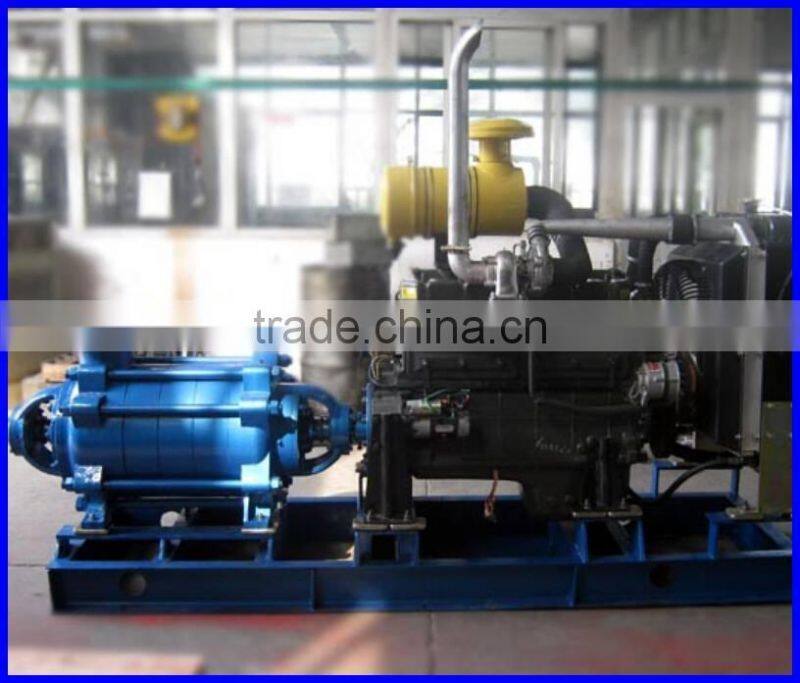

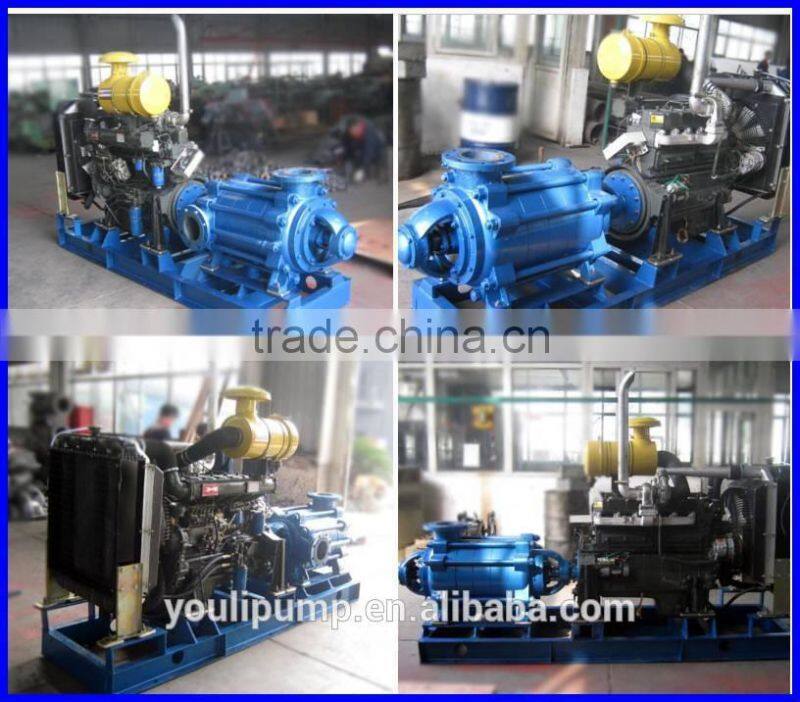

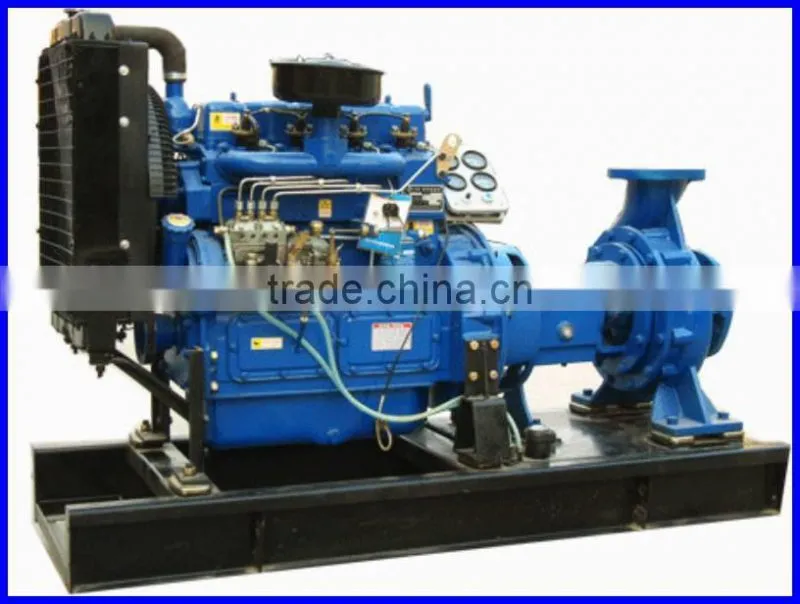

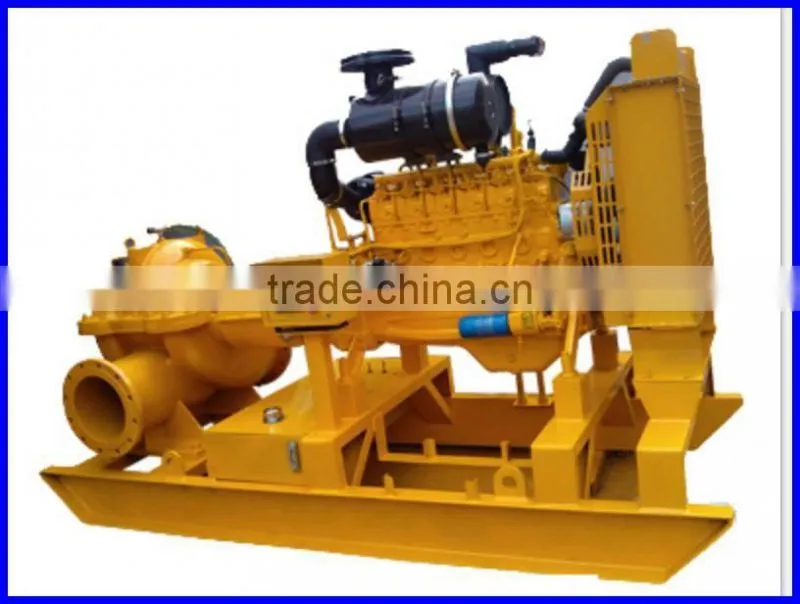

Diesel Engine Water Pumps

In general, diesel engine water pump complete set will include pump+diesel engine+ PTO

(power take off clutch )+base plate+normal/intelligent control panel

The accessories: two wheels or four wheels trailer, silence-box or weather-proof, vacuum assisted system (for increasing the suction lift) etc. can be supplied according to customers' demands.

D type: Used for transmission of water free of solid particles and temperature below 80°C, or similar physical and chemical liquid. Suitable for mining, mill and city water supply and drainage.

DF type: Used for transmission of corrosive liquid with temperature range of-20°C-105°C and non-solid particles.

DY type: Used for transmission of non-solid oily liquid and petroleum product with temperature range of -20°C-105°C and viscosity less than 120cSt.

MD type: Used for transmission of neutral liquid from mining well or similar liquid. The density and size of particles of the sewage shall be less than 1.5% and 0.5mm respectively. The temperature range of the sewage shall be -20°C-80°C.

2. Specifications For  Pump and Diesel Engine

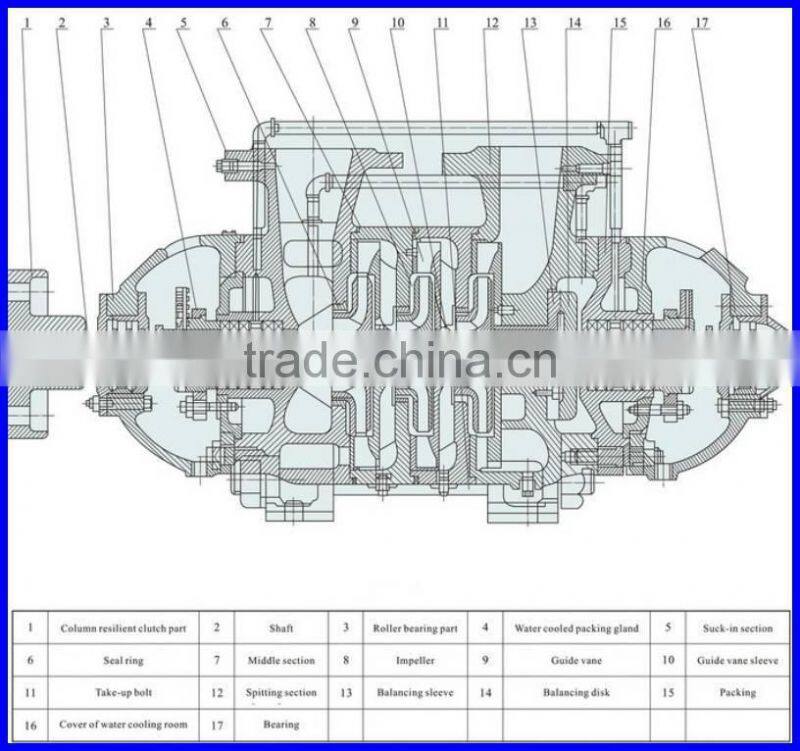

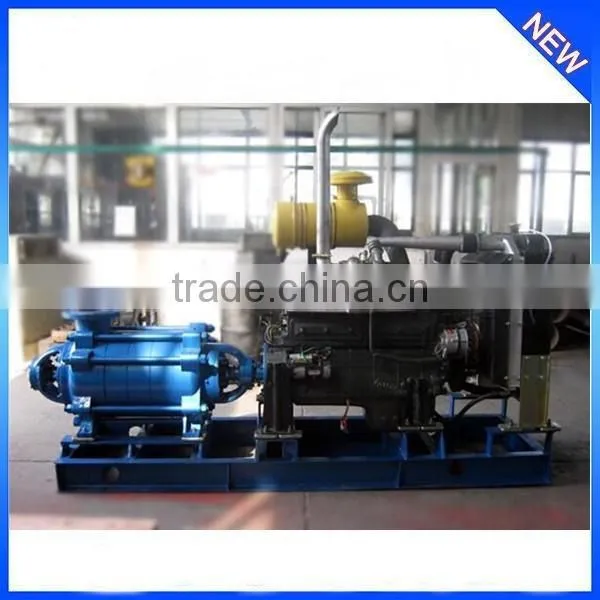

Pump Type: Horizontal multistage centrifugal water pump

Size: 50mm-300mm (2-12inch)

Range of capacity: 3.75m3/h-850m3/h

Range of head: 19m-816m

Model Meaning: 100D/DF/DY/MD 280-43*3

100: Diameter of the suction inlet(mm)

D: Multi-stage clean water centrifugal pump

DF: Corrosion-resistant multi-stage centrifugal mining pump

DY: Multi-stage centrifugal oil pump

MD: Wear-resistant multi-stage centrifugal mining pump

280: Capacity

43: Single-stage head valve at the designed point of the pump (m)

3: Pump stage number

Diesel Engine: Cummins, deutz, perkins, lister peter, ricardo, Chinese etc brands engine according to customers' requirements or we recommend

Engine Type:  air cooled or water cooled engine

Connection way for pump with engine:  pin coupling (hard to hard), high elastic coupling (avoid vibration, can protect the pump set)

Installation: diretly coupling engine mounted, horizontal V-belt  type installation, vertical type

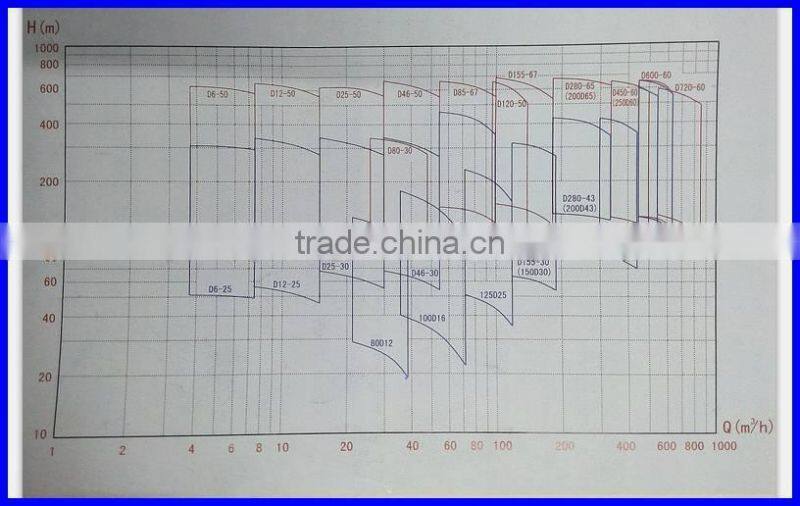

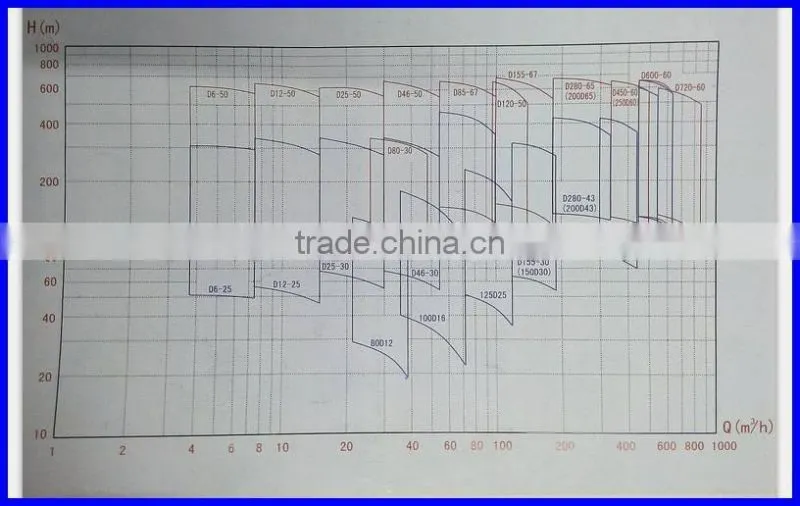

3.Pump Type Spectrum

(Please contact me to get more specific pump model!)

5. Accessories

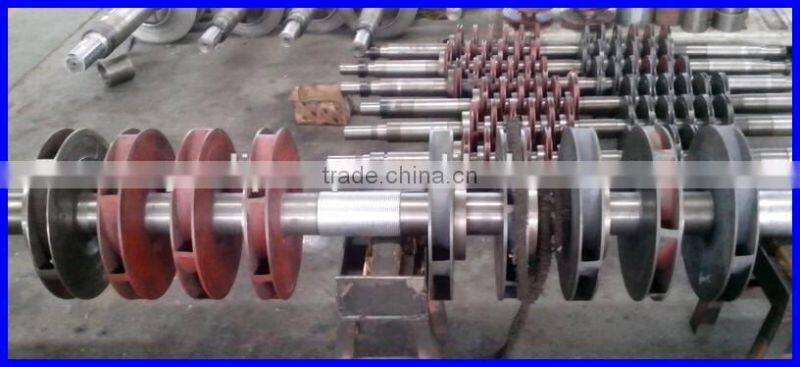

Impeller

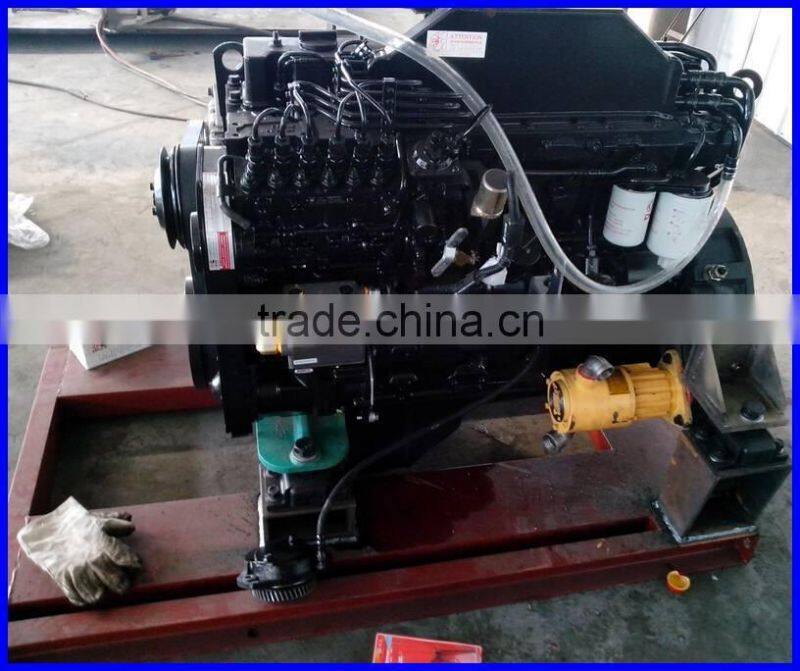

Diesel Engine

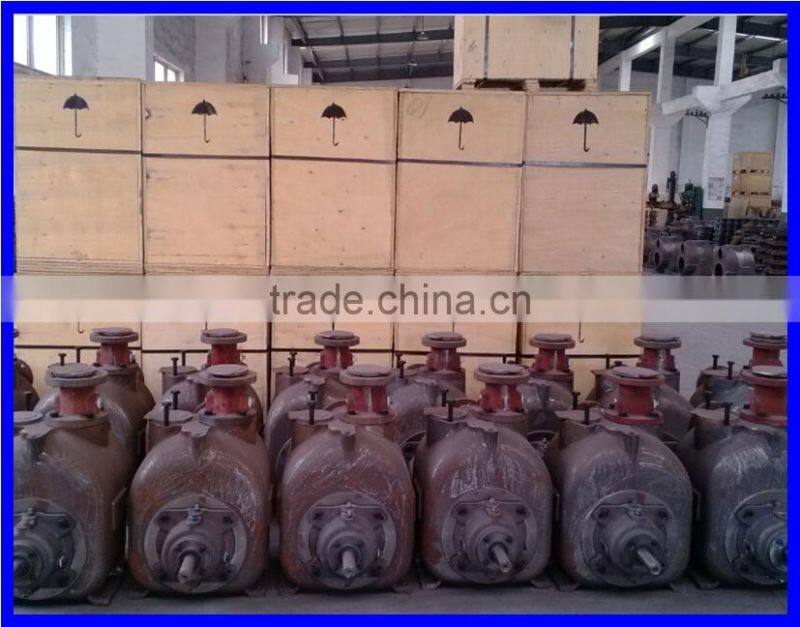

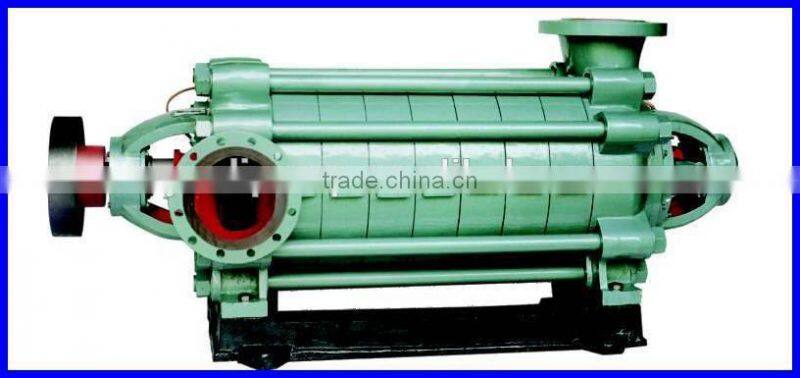

 Bare Pump

Testing

Pre-sale
Good pre-sale service is an important guarantee to the customer interest. our professional senior service engineer to provide customers with design plans and consultant, which avoids the unnecessary loss caused by improper operation of customers to the largest extent.
In-sale
Our highly professional service staff continuously provides tracking service,  giving instruction to installation, explicating the operation main points and cautions in order to ensure the efficient operation of the product and reduce the breakdowns caused by improper operation of customers to the largest extent.
After-sale
We will check the customers' usage of pump regular positively in order to correct the improper operation of customers in time, carry through the guidance of maintenance in time.

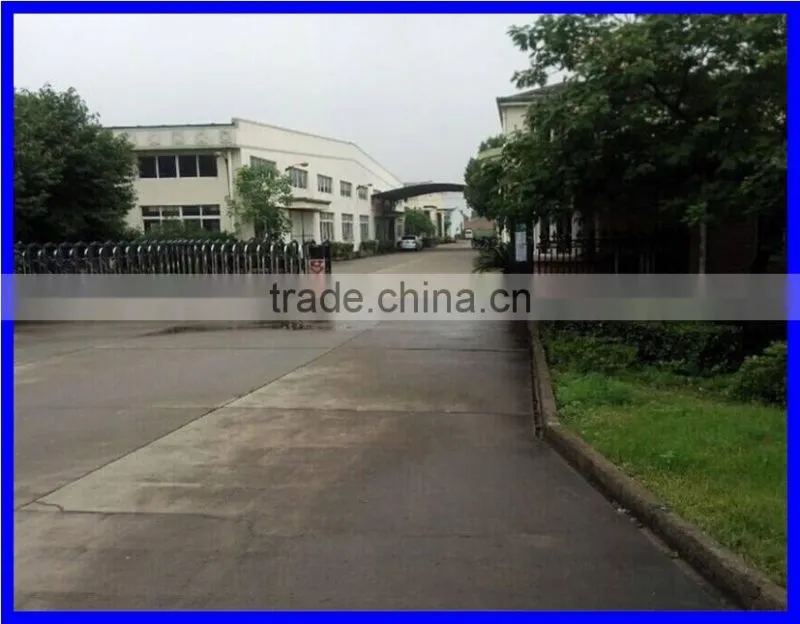

Welcome To Our Factory

Line of Production For Pumps

More Related Pumps

More Sizes Of Diaphragm Pumps Please Click Here
