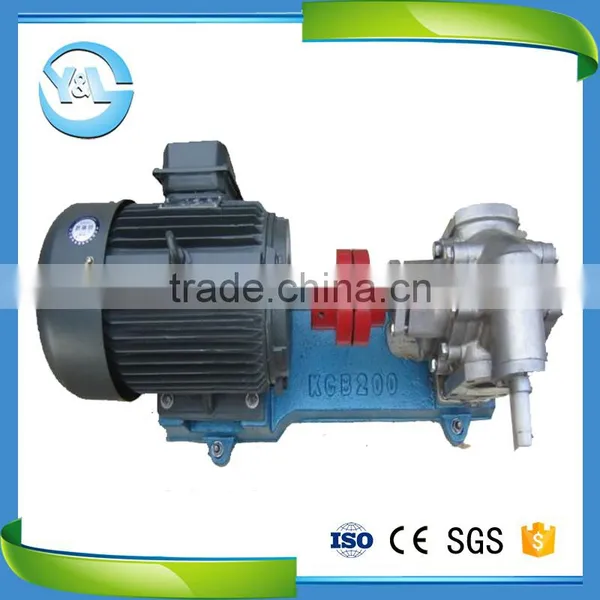

Stainless steel gear pump for diesel transfer
The KCB series gear oil pumps possess the advantages of simple and compact structure, easy operation and simple maintenance. The KCB Series gear oil pumps are suitable for transporting various oils such as petroleum, diesel and lubricant oils. They are widely used in oil reservoirs, piers, ships, mining sites, factories and farms.
>>>Application
The pump is suitable to transport various lubrication liquid at temperature not higher than 70℃. If temperature is up to 200℃,anti-high temperature material will be matched.Its viscosity is 5*10-5-15*10-3m2/s.
The pump is not suitable to transport liquid such as corrosive or containing hard grain or fiber high volatile or low flash point for example gasoline,benzene.(Pump can transport gasoline if copper gear is adopted, and pump can transport ordinary corrosive liquid if stainless steel material is adopted.)
Size: 3/4-6 inch
Max. Capacity: 2500l/min
Max. Pressure: 1.45mpa
| Model | Inlet/outlet Dia. | Displacement | Pressure | Suction | Efficency | Power | Rotation speed |
| inch | (l/min) | mpa | m | % | kw | rpm | |
KCB-18.3 (2CY-1.1/14.5-2) | 3/4 | 18.3 | 1.45 | 5 | ≥85 | 1.5 | 1400 |
KCB-33.3 (2CY-2/14.5-2) | 3/4 | 33.3 | 1.45 | 5 | ≥85 | 2.2 | 1420 |
KCB-55 (2CY-3.3/3.3-2) | 1 | 55 | 0.33 | 5 | ≥85 | 1.5 | 1400 |
KCB-83.3 (2CY-5/3.3-2) | 1.5 | 83.3 | 0.33 | 5 | ≥85 | 2.2 | 1420 |
KCB-133.3 (2CY-8/3.3-2) | 2 | 133.3 | 0.33 | 5 | ≥85 | 4 | 1450 |
KCB-200 (2CY-12/3.3-2) | 2 | 200 | 0.33 | 5 | ≥85 | 4 | 1450 |
KCB-200 (2CY-12/6-2) | 2 | 200 | 0.60 | 5 | ≥85 | 5.5 | 1450 |
KCB-200 (2CY-12/10-2) | 2 | 200 | 1.00 | 5 | ≥85 | 7.5 | 1450 |
KCB-300 (2CY-18/6-2) | 3 | 300 | 0.36 | 5 | ≥85 | 5.5 | 960-1000 |
KCB-483.3 (2CY-29/3.6-2) | 3 | 483.3 | 0.36 | 5 | ≥85 | 7.5 | 1440-1500 |
KCB-483.3 (2CY-29/10-2) | 3 | 483.3 | 0.36 | 5 | ≥85 | 11 | 1450 |
KCB-633 (2CY-38/2.8-2) | 4 | 633 | 0.28 | 5 | ≥85 | 11 | 960-1000 |
KCB-960 (2CY-60/3-2) | 4 | 960 | 0.30 | 5 | ≥85 | 18.5 | 1500 |
KCB-2000 (2CY-120/3-2) | 6 | 2000 | 0.30 | 5 | ≥85 | 30 | 750 |
KCB-2500 (2CY-150/3-2) | 6 | 2500 | 0.30 | 5 | ≥85 | 37 | 750 |
♦ Pump has the advantages of single and compact structure and convenient operation and maintenanc.
♦ Pump has the good self-priming performance.So pump need not pour liquid when pump starts.
♦ Lubricant of pump is automatic by transported liquid so in every day work pump need not add lubrication
♦ Flexible couple driver can setter little tolerance for installation. It can relax impact of liquid pressure when pump works.
1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of pump is 7-15 working days.
2. Warranty: 1 year for the pump body, 3months for the main working parts.
3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.
4. Shipping: By Sea or By Air.
5. Payment: we can accept T/T, L/C, West Union and so on.
6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.
7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.
8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.
Contact Person: Devin Chen
Whatsapp: +86 13968717283
Wechat: 1124650298
Email: devin@
Web:
or you can directly send me inquiry with your requirement.
