Horizontal Single Stage clean water pump
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | You Li | Model Number: | TPOW |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other, Transfer Water |
Product Description
Horizontal Single Stage Double Suction Volute Pump
Model TPOW pump is single-stage double-suction split volute casing centrifugal pump and is specially design and manufactured by our company which based on the market requirement and introducing in German lead technology .
Pump through original impeller and modified impeller and cutting . The pump is full and broad ,high efficiency . In the performance scope,according to customers' needs,may provide pump with any flow and head.
STRUCTURE PERFORMANCE
A. Compact structure ,less room occupied ,comparessed axial size.
B. Low vibration ,low noise ,the following measure to reduce vibrates and noise.
C. The pump casing is double-volute structure .
D. Rotor part axial size is short and fine rigidity.
E. The shaft uses high precise imported bearing.
USEAGE
1. TPOW high flow centrifugal double suction water pump is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically.
2. The water pump is designed with single stage double suction structure, which means water flooded into pump through two sides of impeller, thus the capacity of pump will be much bigger than regular one.
3. Pump could be equipped with diesel engine and cart to easy to move.
4. Widely used in water works, agricultural irrigation, draining pump station, electric power station, air-conditioning circulation water, industrial water supply system, shipbuilding industry and general use in oil refining industry.
Specification:
Working Principle: | Double suction, Split case |
Main applications: | Water |
Driver: | Electric motor, Diesel Engine |
Power Specs: | 220/380/400/415V/6KV, etc 3phase;50hz/60hz |
Max.permissible fluid temperature: | 80°C(176°F) |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing parts material: | Cast iron, Stainless Steel |
Shaft seal type: | Mechanical seal |
Free passage: | 1mm |
Maximum drive rating: | 1600KW(2150HP) |
Maximum caliber: | 800mm(32inch) |
Maximum head: | 125m(410ft) |
Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
Flow rate range: | 133-5500m3/h(585.2-24200US.GPM) |
1.Packaging: 1PC for 1 plywood case, exporting plywood case or as clients' requirement.
2.Shipping: Shipping by sea or air
- Any inquires will be replied within 8 working hours.
- Professional centrifugal pump manufacturer, welcome to visit our website (on-line store) and factory.
- Customized design is available, OEM and ODM are welcomed.
- High quality, reasonable & competitive price.
- Fast lead time, 5-25days for bulk pump production
- Payment: we usual accept payment by T/T, L/C and western union.
- We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
- After-sale service: all centrifugal pumps will have been strictly quality checked in house before packing.
- All centrifugal pumps will be well packed as request before shipping.
Shanghai Y & L pump Co.,Ltd is a manufacturer specialized in the research, development and production of diesel engine water pump, including self priming pump ,centrifugal pump ,double suction pump, multistage pump and others type pumps,which passed CE Certification,ISO9001 standard.And for diesel engine ,we can supply cummins,perkins, deutz,Chinese diesel engine ,and also can supply diphragm,for more information,welcome contact us.
Q1. What is your product range?
Centrifugal pump, slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, single stage
pump, double suction pump, industry pump, oil pump, mud pump, self-priming pump, etc.
Q2. What information should I let you know if I want to get a quotation?
Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also
provide the pump model you are using now, price will be calculated as per the pump model, if not, we will
recommend relevant product for reference.
Q3. Do you impact the finished product?
Yes, each batch of production and finished product will be quality checked strictly before delivering.
Q4. How do you ship the finished product?
By sea.
By plane.

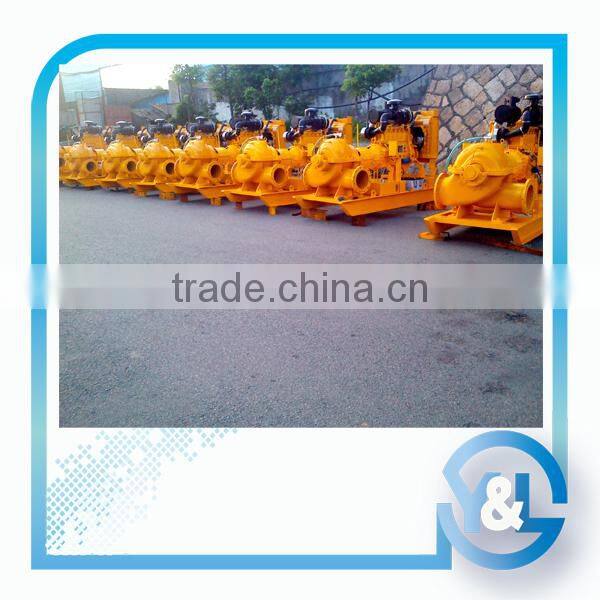

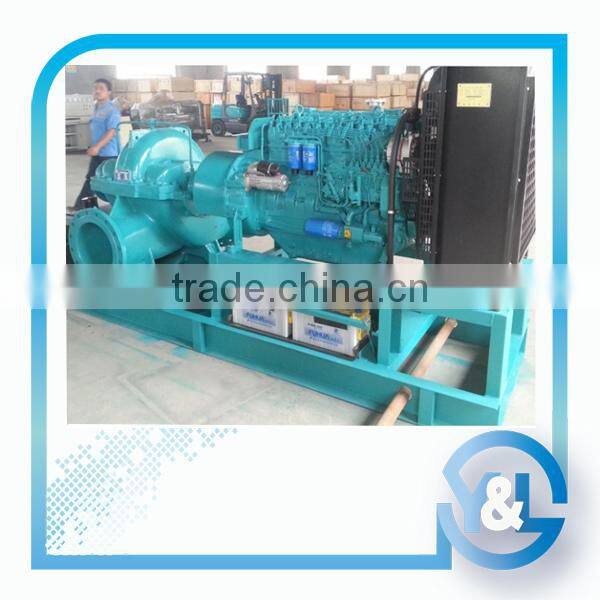

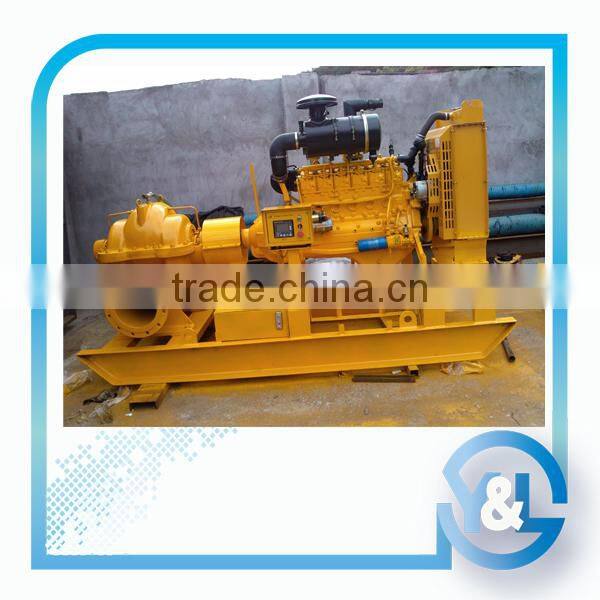

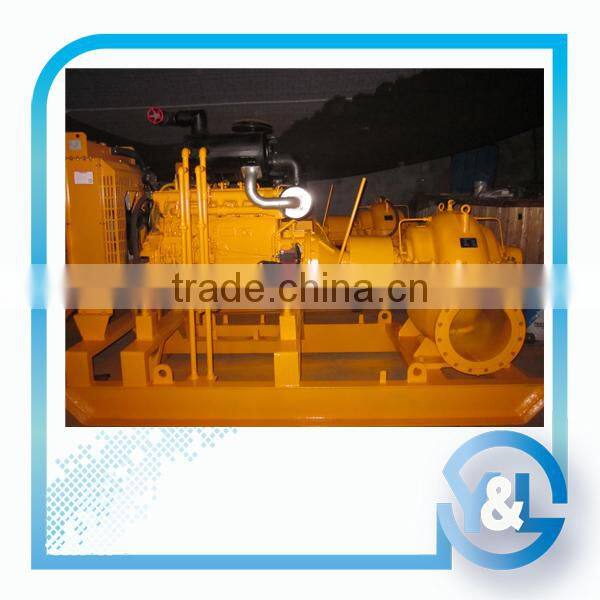

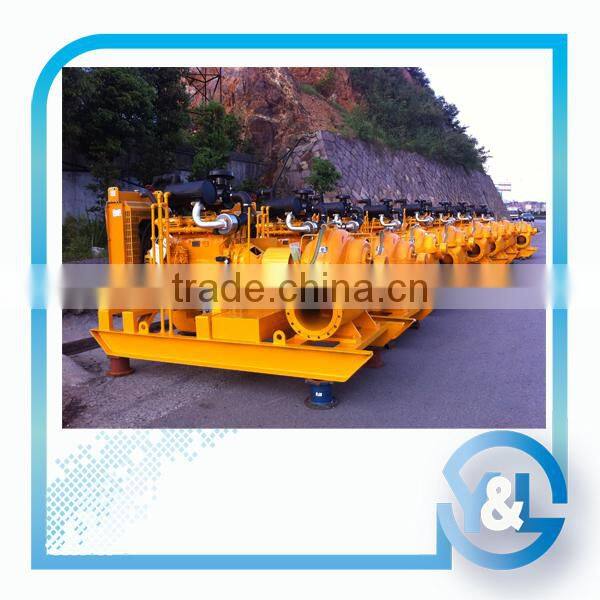

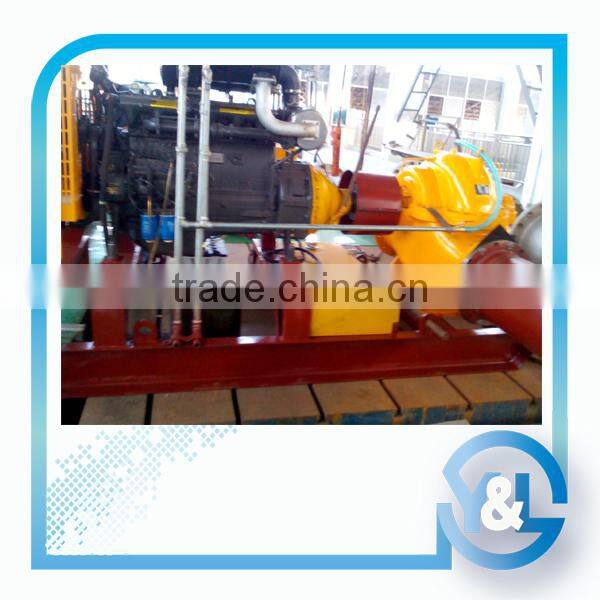

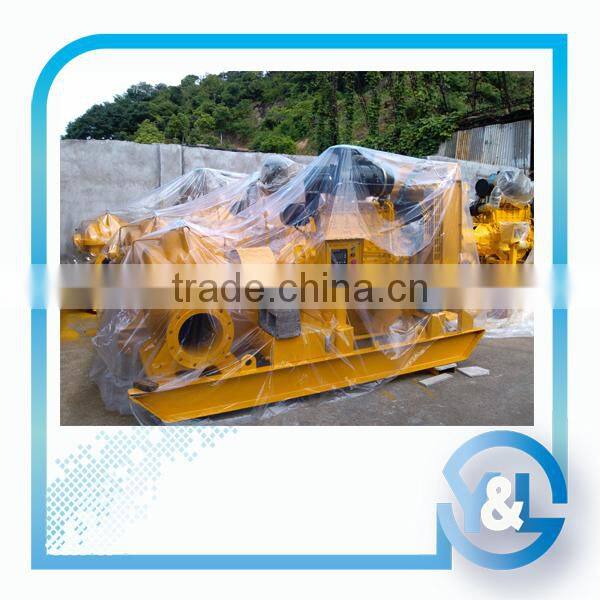

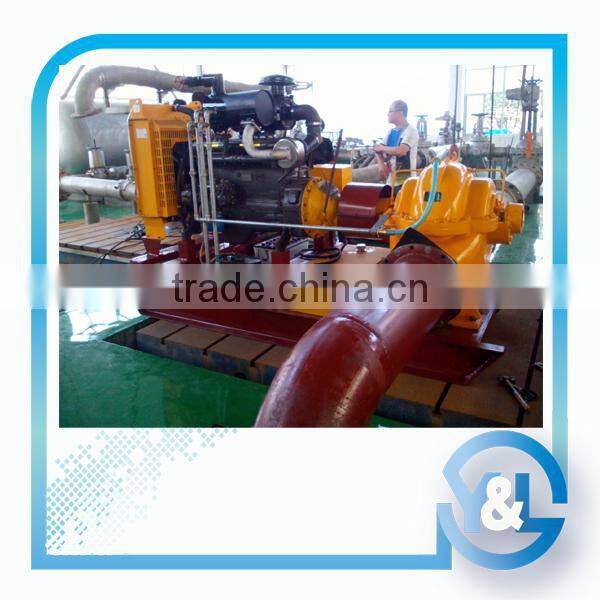

Product Pictures Show
Anyway , Welcome to inquiry us !
