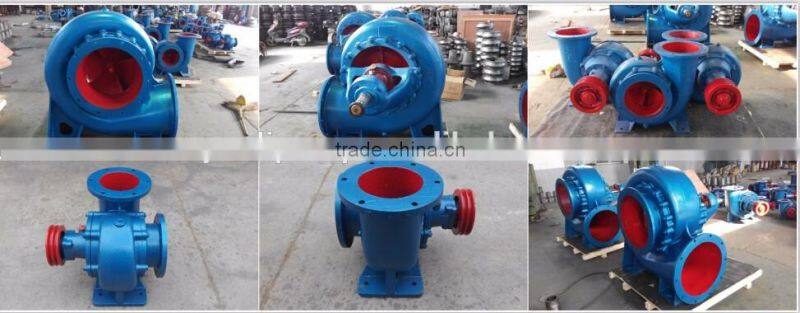

HW series bare shaft high volume low pressure water mixed flow pump
1. Brief Introduction
The horizontal mixed-flow pump is a kind of shell type single suction pump with one impeller. The reasonable structure makes for reliable operation, convenient maintenance, high efficiency, small volume and light weight. HW pump is a horizontal single stage single suction volute mixed flow pump and suitable for transporting pure water or the other liquid with both physical and chemical natures similar to those of water, with the temperature of the liquid to be transported not over 50℃, for the farm land irrigation, industrial and city water supply and drainage etc.

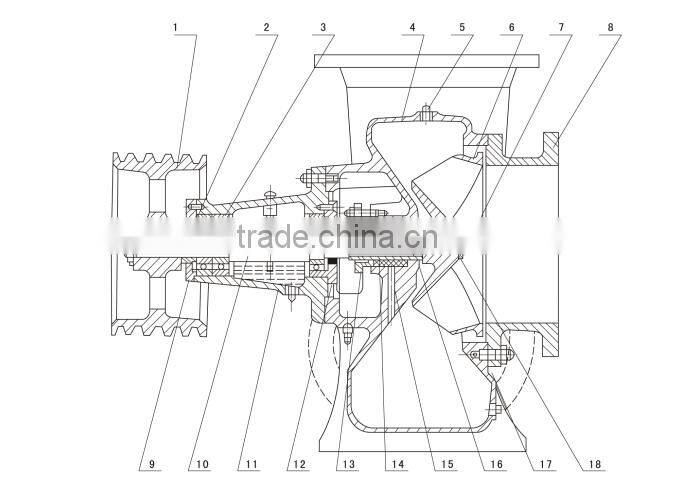

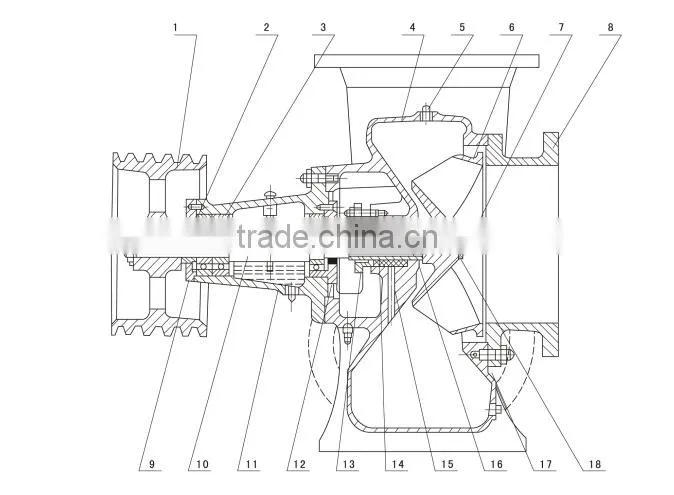

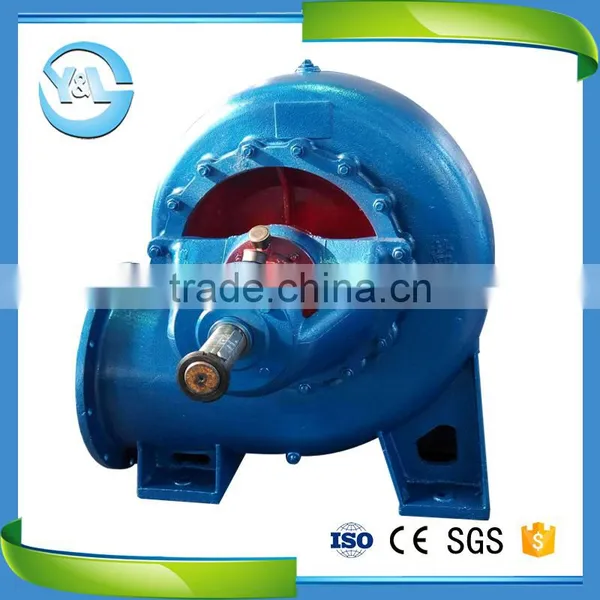

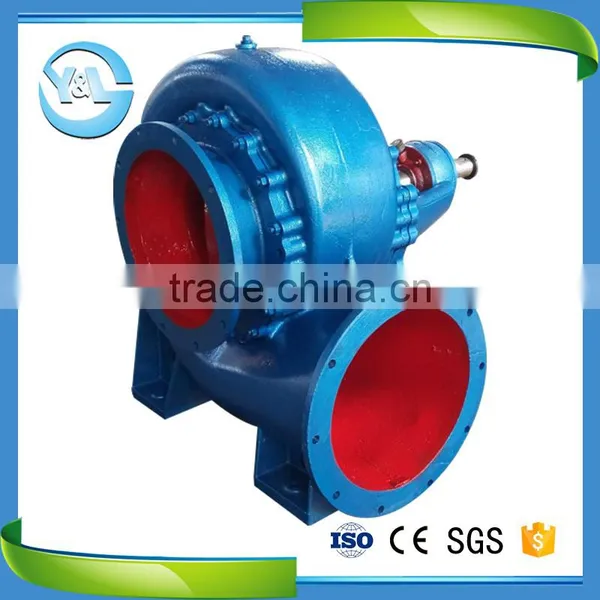

2. Structure
1 |
Belt pulley (or pump’s clutch) |
7 |
Impeller Nut |
13 |
Packing gland |
2 |
Retaining sleeve |
8 |
Pump Cover |
14 |
Packing |
3 |
Bearing |
9 |
Rear Cover |
15 |
Packing Ring |
4 |
Pump casing |
10 |
Pump Shaft |
16 |
Muff |
5 |
Thread cork |
11 |
Bearing Body |
17 |
Paper Pad |
6 |
Impeller |
12 |
Front Cover |
18 |
Impeller Nut Gasket |
3. Features
1)Simple structure, reliable use, easy installation, high efficiency, small body and light weight.

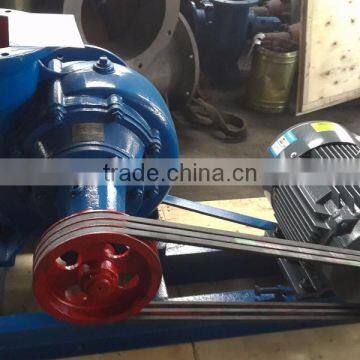

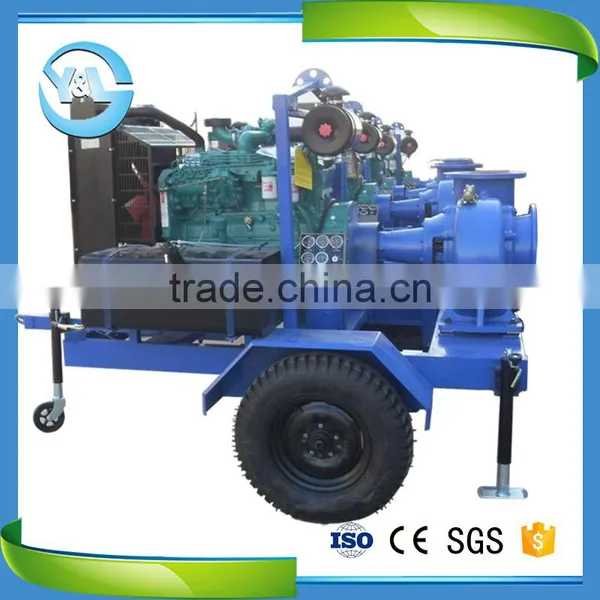

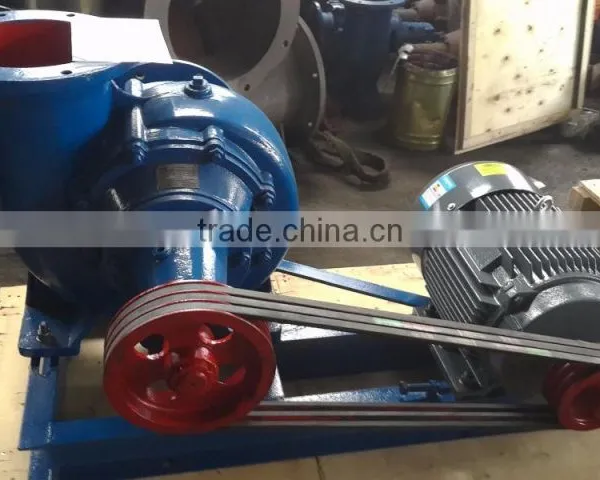

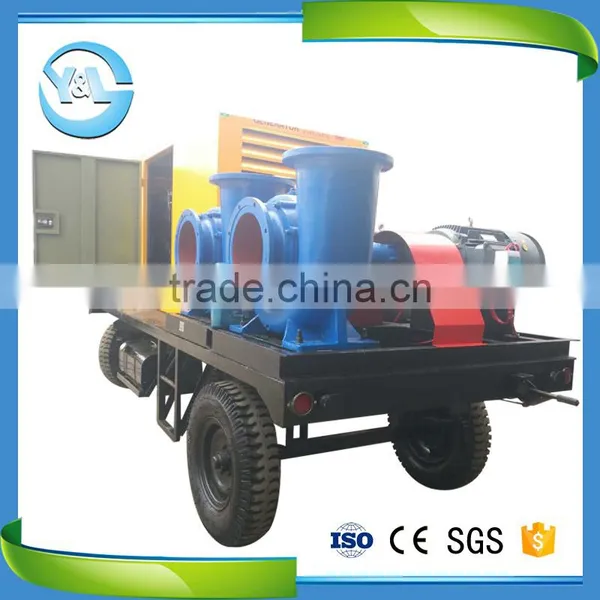

2)Mode of actuation: Directly and variable actuations, the common movers are motor and diesel engine.
4. Application
Our horizontal mixed-flow pump can be widely seen in irrigation, waste-water treatment system and municipal water supply and drainage system. Additionally, our company can also offer low-head mixed-flow pump, which features large flow, low energy consumption and high efficiency. It is particularly suitable for pump station construction and renewal.
5. Model Meaning
150HW-5
150 means the diameter of outlet is 150mm
HW means horizontal volute mixed flow pump
5 means the head is 5m
1. Range of Parameter
| Model | HW series mixed flow pump |
| Structure | horizontal, single stage |
| Size | 6 inch, 8 inch, 10 inch, 12 inch, 14 inch, 16 inch, 20 inch, 26 inch, 32 inch |
| Max. Flow | 8640 m3/h |
| Max. Head | 21.5 m |
| Rotation Speed | 450-2900 rpm |
| Shaft Power | 3-400 kw |
2. Parameter Table
Here is the pump model of 14 inch and 16 inch, more model of mixed flow pump, please contact me.
| Model | Flow Rate | Head |
Rotation Speed |
Efficiency |
Shaft Power |
Motor Power |
NPSH | Weight |
| m3/h | m | rpm | % | kw | kw | M | kg | |
| 350HW-8 | 670 | 5.2 | 730 | 85 | 11.16 | 15 | 4 | 330 |
| 745 | 4.4 | 85 | 10.44 | |||||
| 819 | 3.7 | 81 | 10.15 | |||||
| 350HW-8 | 900 | 9.4 | 980 | 85 | 27.1 | 30 | 5 | 486 |
| 1000 | 8 | 85 | 25.5 | |||||
| 1100 | 6.7 | 81 | 24.66 | |||||
| 400HW-7 | 1080 | 7.8 | 730 | 84 | 27.31 | 37 | 4 | 486 |
| 1260 | 6.8 | 86 | 27.13 | |||||
| 1368 | 6.2 | 84 | 27.5 | |||||
| 400HW-7 | 1450 | 14 | 980 | 84 | 66.32 | 75 | 5 | 486 |
| 1692 | 13 | 86 | 65.9 | |||||
| 1836 | 11 | 84 | 66.67 | |||||
| 400HW-10 | 1098 | 11.5 | 730 | 83 | 41.5 | 55 | 4 | 496 |
| 1400 | 10 | 86 | 44.3 | |||||
| 1720 | 7.5 | 83 | 42.4 | |||||
| 400HW-10 | 1474 | 20.7 | 980 | 83 | 100.1 | 132 | 5 | 496 |
| 1880 | 18 | 86 | 107.1 | |||||
| 2309 | 13.6 | 83 | 102.4 |

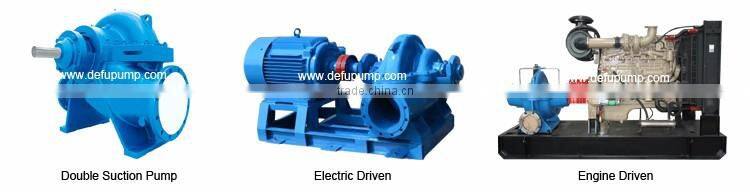

TPOW series doubel suction pump---High Volume Water Pump
(you can click the picture turn to the page of double suction pump)
---------What is the difference between mixed flow pump and double suction pump?-----------
| Mixed Flow Pump VS Double Suction Pump | ||
| Pump Model | HW series mixed flow pump | TPOW series doubel suction pump |
| Theory | Mixed Flow Pump | Centrifugal Pump |
| Size | 6-32 inch | 3-32 inch |
| Max. Capacity | 8640 m3/h | 11660 m3/h |
| Max. Head | 21.5 m | 230 m |
| Shaft Power | 3-400 kw | 1.2-3418.8 kw |
From the table, we can clearly see that the performance of TPOW series double suction pump is much better than HW series mixed flow pump, but the shaft power is bigger than mixed flow pump, which shows that the using cost of mixed flow pump is more lower. And when the performance of these two pump is the same or similar, mixed flow pump is lighter.
