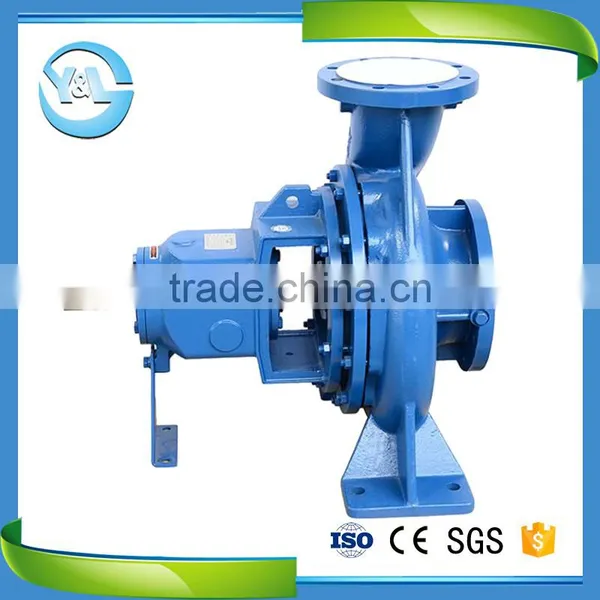

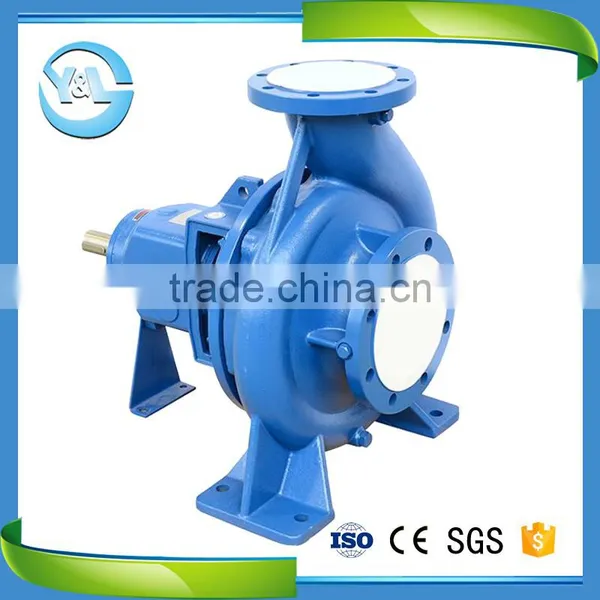

High Efficiency End Suction Centrifugal Pumps
Performance Table
| The Specification of ISO Series End Suction Centrifugal Pump | |
| Discharge Size | DN32-200mm |
| Head | 2-160m |
| Flow Rate | 4-1600m3/h |
| Medium Temperature | -15--80℃(standard) 80--145℃(on special request) |
| Working Pressure | ≤1.6MPa(standard) ≤2.4MPa(on special request) |
| Application | • Water supply and drainage • HVAC and Cooling Tower • Fire Protection and Fire Fighting • Marine – Ballasting & Bilge • Booster and Pressurization Set • Irrigation and agriculture • Water supply and drainage |
| Pump Parts | Material |
| Pump Casing | Cast Iron; Stainless Steel 304/316/316L |
| Impeller | Cast Iron; Bronze; Stainless Steel 304/316/316L |
| Shaft | Stainless Steel; Chrome Steel |
| Shaft Sleeve | Stainless Steel |
| Casing Ring | Grey Cast Iron; Bronze |

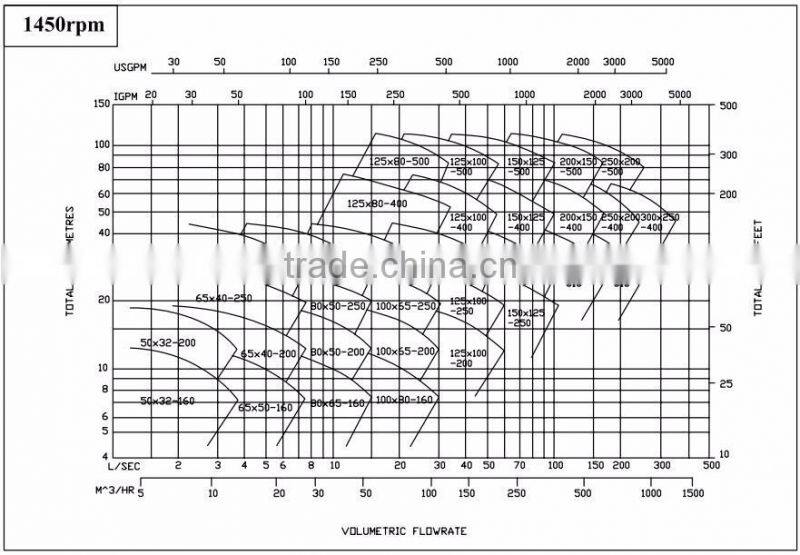

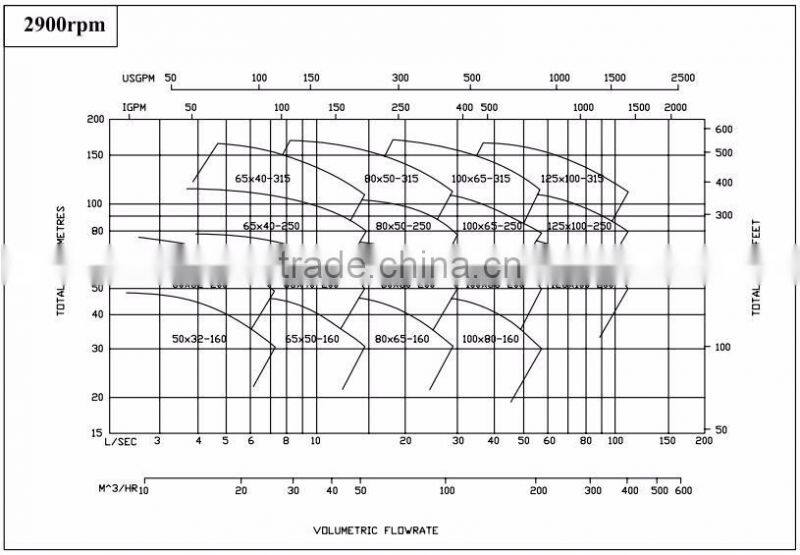

Performance Curve
Features:
1. The Centrifugal pump adopts back pull-out structure, there is no need to disassemble the pump during maintenance, this structure is also lightweight, so it is easy to replace the spare parts.
2. Due to the separate design for the bearing and the mechanical seal, the bearing can keep in its original position even when the mechanical seal leaks or needs replacement. This provides the bearing with an extended service life, and ensure less maintenance of the pump.
3. Our centrifugal pump can be used as self-priming pump, when it is equipped with the self priming device,which can greatly reduce the cost and service power, speed up the self-priming time, at the same time it can support dry start.
DA Series End Suction Centrifugal Pumps (Long Coupling)

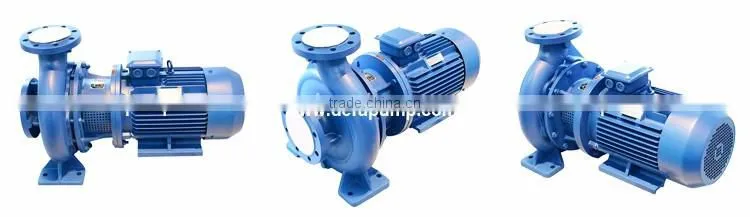

DAZ Series Centrifugal Pump (Short Coupling)
