Cast Iron Bare Shaft End Suction Centrifugal Pump

Shanghai Y&L Pump Co., Ltd.
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-1
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-2
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-3
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-4
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-5
Cast Iron Bare Shaft End Suction Centrifugal Pump thumbnail-6
Cast Iron Bare Shaft End Suction Centrifugal Pump photo-1

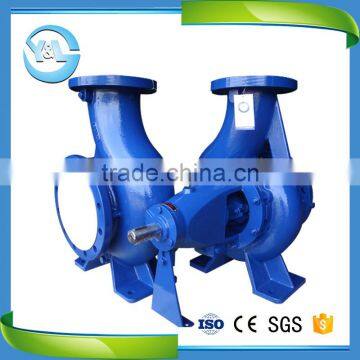

Cast Iron Bare Shaft End Suction Centrifugal Pump photo-2

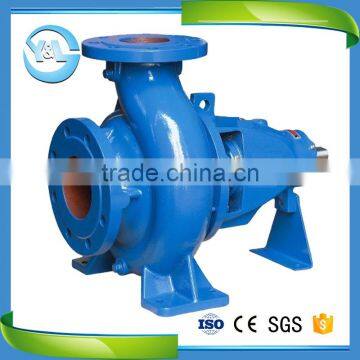

Cast Iron Bare Shaft End Suction Centrifugal Pump photo-3

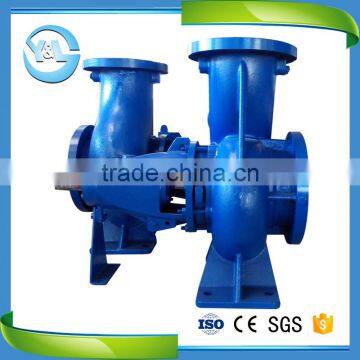

Cast Iron Bare Shaft End Suction Centrifugal Pump photo-4

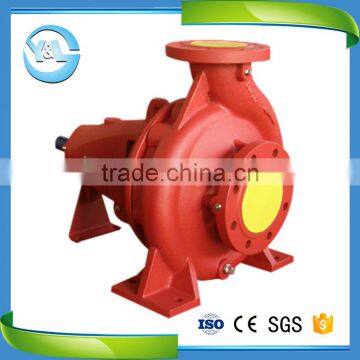

Cast Iron Bare Shaft End Suction Centrifugal Pump photo-5

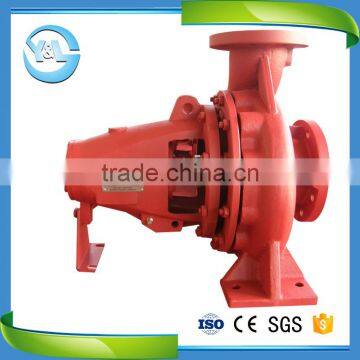

Cast Iron Bare Shaft End Suction Centrifugal Pump photo-6
US$ 1,200 - 8,620 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Y&L
Model Number:
DA
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Y&L
Model Number DA
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Fire

Cast Iron bare shaft end suction centrifugal pump

Specification
Specifications of end suction pumps
Speed2900 r/min1450 r/min or 1480 r/min
Max. Capacity132 l/s (475.2 m3/h)300 l/s (1080 m3/h)
Max. Head150m55m
Max. Speed

 3500 r/min (When using the power of 60hz, the diameter of impeller will be reduced)

Max. Working Temperature105 ºC
Shaft SealPacking or Mechanical Seal



Here is the parameter table, and more model please contact me.

DA ModelCapacityHeadSpeedPowerImpeller Dia.
Shaft Motor
m3/hmr/minkwkwmm
DA32/2616.2 89.3290011.76 15264
27.0 8214.52 18.5
32.4 75.316.28 18.5
DA40/2621.6 93290013.67 15264
36.0 86.516.62 18.5
43.2 81.518.08 22
DA50/2036.0 62290010.48 15214
60.0 5613.07 15
72.0 5114.70 18.5
DA65/2672.0 98290030.49 37264
120.0 89.939.95 45
144.0 82.345.12 55
DA80/26114.0 95290045.01 55264
190.0 83.557.59 75
228.0 7463.79 75
DA100/20171.0 58.7290039.04 45214
285.0 50.148.59 55
342.0 4252.49 75
DA125/20216.0 56.5290055.84 75214
360.0 4964.89 90
432.0 42.568.94 90
DA32/266.6 23.714501.42 2.2264
11.0 22.41.76 2.2
13.2 21.41.92 3
DA40/3210.8 37.514503.56 5.5329
18.0 35.64.36 5.5
21.6 33.84.73 5.5
DA50/3230.2 35.614505.64 7.5329
50.4 31.17.36 11
60.5 27.88.32 11
DA65/3239.0 3714507.28 11329
65.0 349.40 11
78.0 31.710.36 15
DA80/4060.0 56.5145017.92 22409
100.0 52.223.11 30
120.0 47.825.52 30
DA100/4090.7 56.8145022.62 30409
151.2 51.830.03 37
181.4 4734.39 45
DA125/50172.8 95.1145075.82 90525
288.0 93.8103.58 132
345.6 91118.09 160
DA150/50289.4 981450115.25 132525
482.4 93.8156.91 200
578.9 89.5178.53 200
DA200/50414.7 88.51450153.71 200525
691.2 84195.13 250
829.4 80.2219.50 250
DA250/50587.5 87.51450199.92 250525
979.2 81.5260.18 315
1175.0 75.5284.12 315
DA300/40702.0 49.51450137.09 160409
1170.0 40.8149.37 200
1404.0 38.7170.01 200
Product Description

1. Brief Introduction

Our end suction centrifugal pump is specialized in pumping water , liquid, chemical substances, etc. With compact structure , its working diameter ranges from 50mm to 300 mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This circulation for air conditioner, sewage treatment and other fields.

DA is used for handing clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air -conditioning, extinguishing and irrigation.

In spite of the same specification, the pump’s performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.)

The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.



2. Pump Structure

Cast Iron bare shaft end suction centrifugal pump

3. Features

  • The Centrifugal pump adopts back pull-out structure, there is no need to disassemble the pump during maintenance, this structure is also lightweight, so it is easy to replace the spare parts.
  • Due to the separate design for the bearing and the mechanical seal, the bearing can keep in its original position even when the mechanical seal leaks or needs replacement. This provides the bearing with an extended service life, and ensure less maintenance of the pump.
  • Our centrifugal pump can be used as self-priming pump, when it is equipped with the self priming device,which can greatly reduce the cost and service power, speed up the self-priming time, at the same time it can support dry start.

Cast Iron bare shaft end suction centrifugal pump

 4. Application of our diesel water pumps

  • Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
  • Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
  • Mining Industry: water supply, mine drainage, generating station, etc.
  • Others: Municipal water supply, agricultural irrigation and some others.

Cast Iron bare shaft end suction centrifugal pump

Pump Images

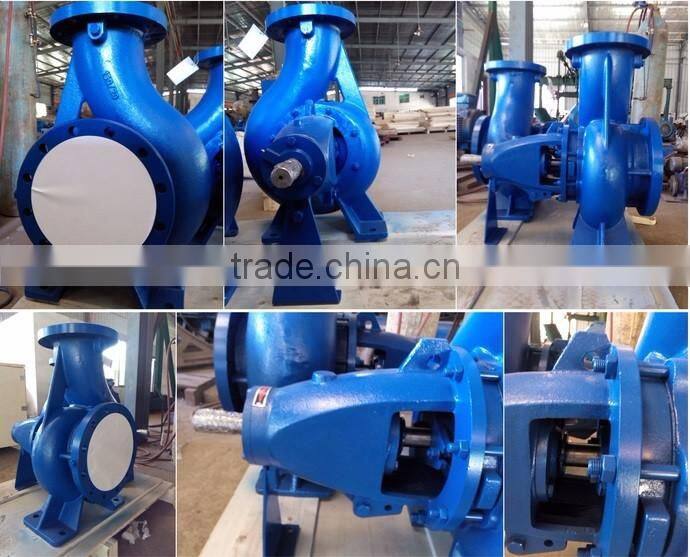

1. Bare Shaft Pump

Cast Iron bare shaft end suction centrifugal pump



2. End Suction Centrifugal Pump With DIesel Engine

Cast Iron bare shaft end suction centrifugal pump



3. End Suction Centrifugal Pump With Electric Motor

Cast Iron bare shaft end suction centrifugal pump
