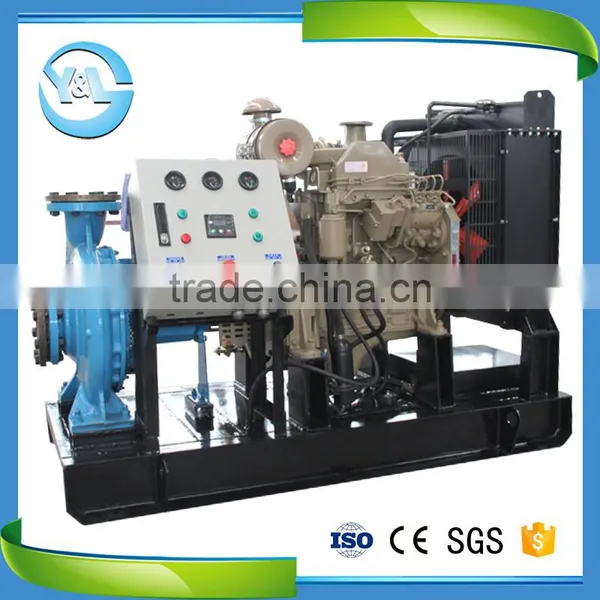

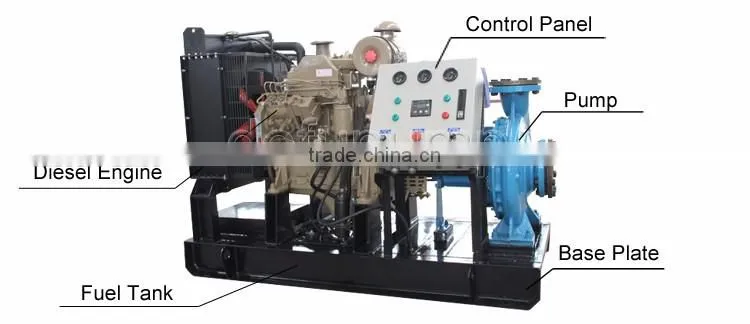

3 inch portable agricultural irrigation diesel water pump
DA is used for handing clear water or the liquids similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns, air -conditioning, extinguishing and irrigation.
In spite of the same specification, the pump’s performances vary with the diameter of the impeller. (Indicated with the block letters A, B and C in the type.)
The pump is simple in structure, reliable in performances, small in size, low in power consumption, convenient in maintenance of good cavitation proof.
DA has 60specifications with the shaft in four sizes, which suitable for various handling duties. For the pump with a same specification, the components, such as shaft, bearings, shaft sleeve, shaft seal and the fasteners of impeller are exchangeable. In addition, only five types of bearing brackets are applied to the whole series.
>>>Parameter Range of DA series centrifugal pump
| Model | DA series back pull out end suction centrifugal pump |
| Structure | horizontal, single stage, single suction, back pull out |
| Size |
32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm |
| Max. Flow | 1400 m3/h |
| Max. Head | 150 m |
| Rotation Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) |
| Shaft Power | 1-284 kw |
| Max. Working Temperature | 105 ºC |
| Shaft Seal | Mechanical Seal or Packing Seal |
| Pump Material | Cast Iron, Stainless Steel 304/316/316L |
| Impeller Material | Cast Iron, Copper, Stainless Steel 304/316/316L |
>>>Specification of 3 inch agricultural irrigation diesel water pump
| Model | Capacity | Head |
Rotation Speed |
Shaft Power | Motor Power |
Impeller Dia. |
Inlet | Outlet |
| m3/h | m | r/min | kw | kw | mm | mm | mm | |
| DA80/16 | 48.0 | 9.9 | 1450 | 1.96 | 3 | 174 | 100 | 80 |
| 80.0 | 8.8 | 2.46 | 3 | |||||
| 96.0 | 7.9 | 2.68 | 3 | |||||
| 97.2 | 40.3 | 2900 | 15.23 | 18.5 | ||||
| 162.0 | 34.7 | 19.13 | 22 | |||||
| 194.4 | 29.3 | 20.95 | 30 | |||||
| 48.0 | 14.4 | 1750 | 2.85 | 4 | ||||
| 80.0 | 12.8 | 3.58 | 5.5 | |||||
| 96.0 | 11.5 | 3.91 | 5.5 | |||||
| 117.3 | 58.7 | 3500 | 26.78 | 37 | ||||
| 195.5 | 50.5 | 33.63 | 45 | |||||
| 234.6 | 42.7 | 36.84 | 45 | |||||
| DA80/20 | 57.0 | 15.4 | 1450 | 3.46 | 5.5 | 214 | 100 | 80 |
| 95.0 | 14.1 | 4.50 | 5.5 | |||||
| 114.0 | 13.1 | 4.99 | 7.5 | |||||
| 114.0 | 60.5 | 2900 | 28.02 | 37 | ||||
| 190.0 | 52.7 | 35.04 | 45 | |||||
| 228.0 | 46.0 | 38.85 | 45 | |||||
| 57.0 | 22.4 | 1750 | 5.04 | 7.5 | ||||
| 95.0 | 20.5 | 6.56 | 11 | |||||
| 114.0 | 19.1 | 7.27 | 11 | |||||
| 137.6 | 88.1 | 3500 | 49.27 | 55 | ||||
| 229.3 | 76.8 | 61.59 | 75 | |||||
| 275.2 | 67.0 | 68.29 | 75 |
1. The Centrifugal pump adopts back pull-out structure, there is no need to disassemble the pump during maintenance, this structure is also lightweight, so it is easy to replace the spare parts.
2. Due to the separate design for the bearing and the mechanical seal, the bearing can keep in its original position even when the mechanical seal leaks or needs replacement. This provides the bearing with an extended service life, and ensure less maintenance of the pump.
3. Our centrifugal pump can be used as self-priming pump, when it is equipped with the self priming device,which can greatly reduce the cost and service power, speed up the self-priming time, at the same time it can support dry start.
1. Delivery: Delivery time will be on time as the contract. Usually, the delivery time of end suction pump is 20-25 working days.
2. Warranty: 1 year for the pump body, 3months for the main working parts.
3. Package: According to your quantity, we use strong carton or plywood case which is durable for ocean transport.
4. Shipping: By Sea or By Air.
5. Payment: we can accept T/T, L/C, West Union and so on.
6. Pre-sales Service: According to your requirement, we will give you our profession advice of pump solution.
7. On-sales Service: We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you our production situation.
8. After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if u need.
