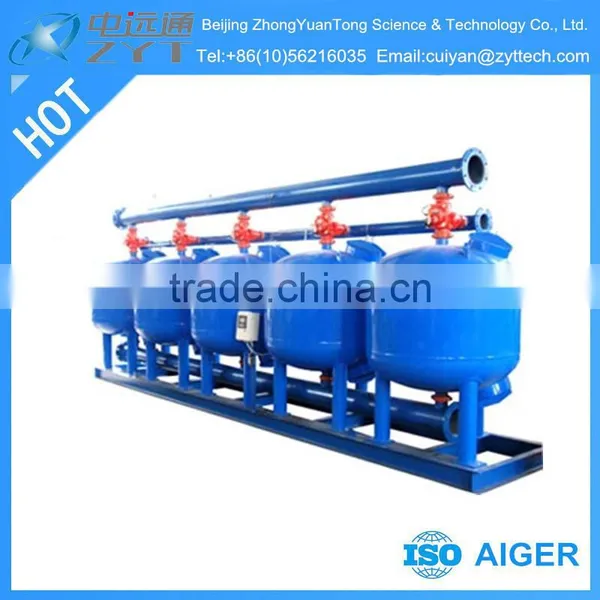

Water Treatment System Quartz Sand Filter
Negotiable
MOQ: 1 Strand (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
AIGER
Model Number:
A-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin&Shanghai&Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sand Filter for Water TreatmentNegotiableMOQ: 1 Strand -
Water Treatment System-Stainless Steel Sand FilterNegotiableMOQ: 1 Strand
-
High Flow Sand Filter for Industry With PumpNegotiableMOQ: 1 Strand
-
High Flow Sand Filter for IndustryNegotiableMOQ: 1 Strand
-
Provide Competitive Price Sand Filter for Water TreatmentNegotiableMOQ: 1 Strand
Place of Origin
Beijing, China
Brand Name
AIGER
Model Number
A-S
Specifications
1.Quartz sand media2.Manufacturer
3.Automatic backflush
4.For water treatment plant
Product Description
A-S series Sand Filter using quartz sand as media, which can effectively remove the suspended substance, microorganisms, and other fine particles in water, so as to reduce water turbidity, increase water purification effect.This is the automatic system, ifthere is without artificial operation, it will automatically backwashing once every 24H (backwash interval time can be changed based on user conditions).
Technical Parameters
- Single filter water flow: 2~50m³/h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than 3
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control
- Sewage way: automatic
- Rated operation voltage: 220V, 50HZ, 1-phase

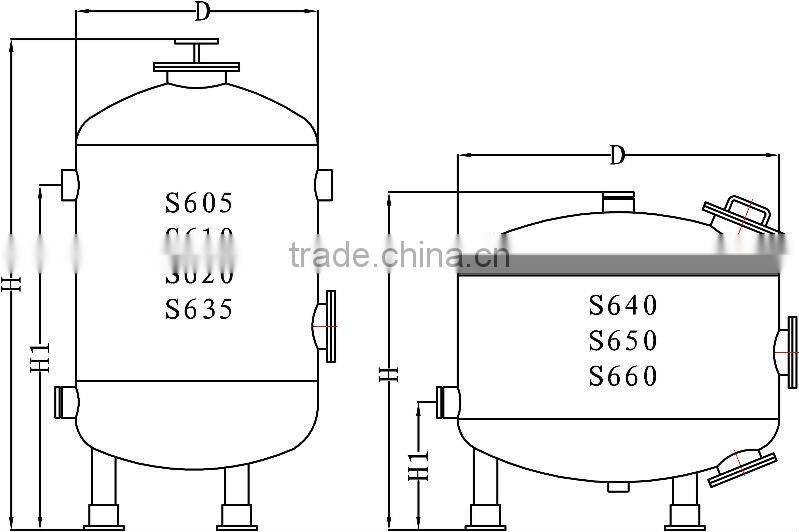

Model&Specification
| Model | D(mm) |
D1(mm) |
H(mm) |
H1(mm) |
Weight (Kg) |
Filter area
(m2)
|
Backflush water (m³/h) |
S605 |
300 |
37.5 |
116.5 |
150 |
42 |
0.07 |
2-5.6 |
S610 |
400 |
50 |
1105 |
180 |
45 |
0.12 |
4-9.6 |
S620 |
500 |
25-75 |
1210 |
180 |
47 |
0.2 |
8-16 |
S635 |
625 |
50-100 |
1200 |
180 |
58 |
0.3 |
12-24 |
S640 |
750 |
50-100 |
1070 |
300 |
125 |
0.44 |
17-35 |
S650 |
900 |
50-100 |
1110 |
300 |
197 |
0.63 |
25-50 |
S660 |
1200 |
50-100 |
1110 |
300 |
290 |
1.13 |
45-90 |
Detailed Images

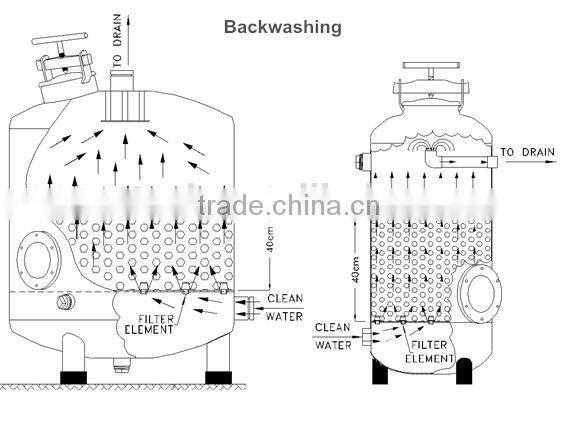

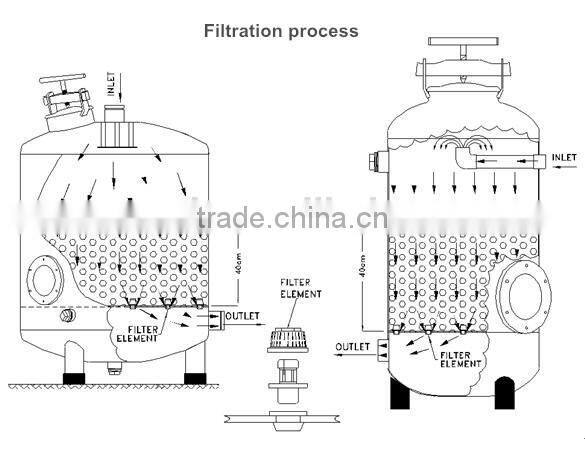

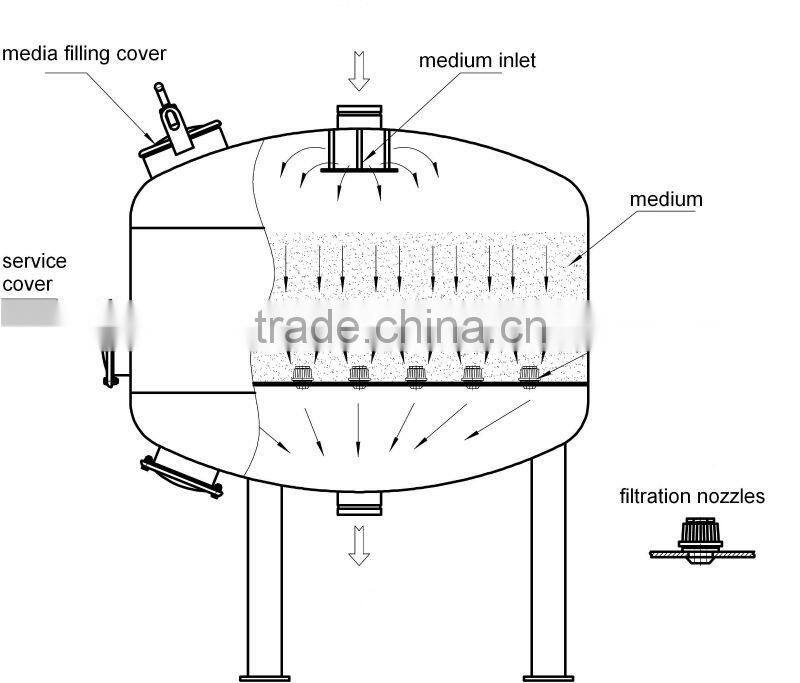

Working Principle

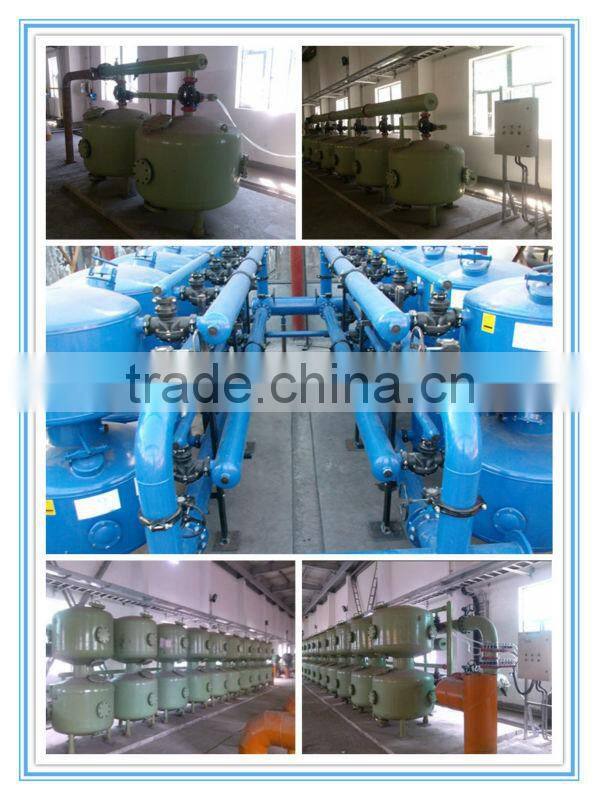

Product Uses On Site
Trade Shows
Packaging & Shipping
