Home > Products > Water treatment > Provide competitive price sand filter for water treatment
Provide competitive price sand filter for water treatment
- 5000 Strand / Strands per Month
- Tianjin&Shanghai
- T/T Credit Card
- Vertical Quartz Sand Filter For Water Treatment
- Vertical water filter, sand filter, multi-media filter
- Sand Water Filter/Water treatment plants
- Professional Manufacturer: Excellent Quality water treatment sand filter For Waste Water Treatment
- Professional Manufacturer: Excellent Quality Industrial water treatment sand filter For Waste Water Treatment
- Excellent Quality Sand Filter For Waste Water Treatment
Product Details
Type: | Other, Sand filter | Medium Material: | Other, SS | Place of Origin: | Beijing, China |
Brand Name: | AIGER | Model Number: | A-S |
Packaging Details
packing by wooden cases
Product Description
Specifications
1.Pure and good quality2..We are manufactory
3.Automatic backwashing
4.High mechanical strength
Characteristic description
A-S series of New Type Quartz Sand Filter for Irrigation uses quartz sand as filter media in a filter with high efficiency, can effectively remove the suspended substance in water, microorganisms, and other fine particles.So as to reduce water turbidity, water purification effect.The system is the automatic system, if without artificial operation, the system will automatically backwashing once every 24H (backwash interval reference number can be based on user conditions to change).

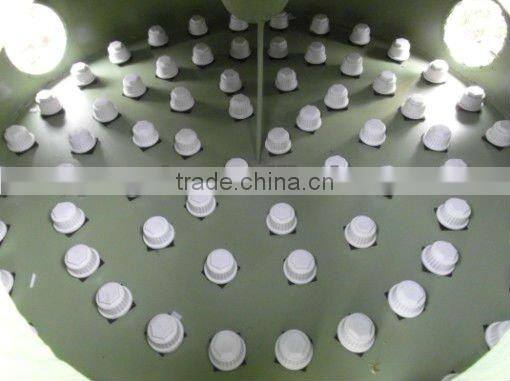

Internal structure diagram
Technical parameters
- Single filter water flow: 50m³/h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than three
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control
- Sewage way: automatic sewage suction nozzle or brush, safe and reliable
- Rated operation voltage: 220V, 380V, 50HZ, three-phase
- Installation: vertical, horizontal
Model and Specification
Model | D(mm) | D1(mm) | H(mm) | H1(mm) | weight(Kg) | filter area(m2) | The clean water (m³/h) |
S605 | 300 | 37.5 | 116.5 | 150 | 42 | 0.07 | 2-5.6 |
S610 | 400 | 50 | 1105 | 180 | 45 | 0.12 | 4-9.6 |
S620 | 500 | 25-75 | 1210 | 180 | 47 | 0.2 | 8-16 |
S635 | 625 | 50-100 | 1200 | 180 | 58 | 0.3 | 12-24 |
S640 | 750 | 50-100 | 1070 | 300 | 125 | 0.44 | 17-35 |
S650 | 900 | 50-100 | 1110 | 300 | 197 | 0.63 | 25-50 |
S660 | 1200 | 50-100 | 1110 | 300 | 290 | 1.13 | 45-90 |
Size Chart

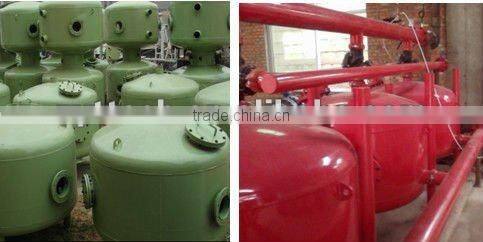

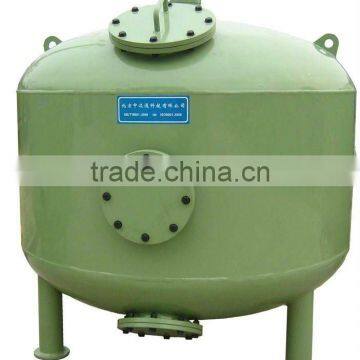

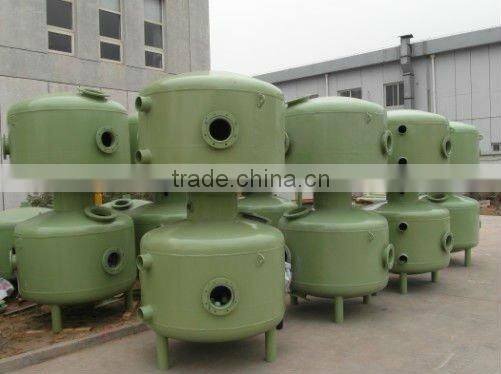

Real figure
Company Profile
Beijing ZhongYuanTong Science & Technology Co., Ltd. established in 1998, which is a professional high-tech enterprise based in Beijing, enjoying convenient transportation access. We are fully committed to produce advanced Self-cleaning water filters, marking machine and Laser distance sensor. We partner with leading operators and manufacturers in the industry.
We focus on the R&D, ensuring that we provide our customers with top-quality and innovative products. In addition, we use stringent quality control measures to ensure the reliability of our products. With sound business credit, excellent after-sales service and modern manufacturing facilities, we have earned an excellent reputation among our customers across the globe. We emphasize development, and introduce new products into the market every year.
Our products sell well in domestic and overseas markets, such as Asia, Europe, the Middle East and other countries and regions, and are favorably appraised by clients.
We pursue the management tenet of "Quality is superior, Service is supreme, Reputation is first", and will sincerely create and share success with all clients.
We welcome you to contact us for more information and look forward to working with you!
Contact Us
- Beijing Zhongyuantong Science And Technology Co., Ltd.
- Contact nameCarmen Cui
- Phone86-10-56216035
- AddressNo. 11, Liye Road, Beijing International Information Industry Base, Huilongguan
