Specifications
1.Stainless steel mechanical filter2.Superior corrosion resistance
3.Mainly used to do primary filtration in sediment laden
Feature description
The waste water sand filter ,which belongs to a high efficiency filter, using homogeneous natural quartz sand as filter medium.It mainly for water filter out a variety of suspensions, organic compounds, colloidal particles, microorganisms, chlorine, odor and some heavy metal ions, and ultimately reduce the turbidity of water, water purification effect.Widely used in agricultural irrigation, chemical, petroleum, metallurgy, mining and other industries.Quartz sand filter device has the advantages of simple structure, and it's operation can realize automatic control.Dealing with large flow, less recoil, high filtering efficiency, small resistance, convenient operation and repair.
Technical parameters
- Single filter water flow: 50m3 / h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than three
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control;
- Installation: vertical, horizontal
| Model | D(mm) |
D1(mm) |
H(mm) |
H1(mm) |
weight(Kg) |
filter area(m2) |
The clean water (m³/h) |
S605 |
300 |
37.5 |
116.5 |
150 |
42 |
0.07 |
2-5.6 |
S610 |
400 |
50 |
1105 |
180 |
45 |
0.12 |
4-9.6 |
S620 |
500 |
25-75 |
1210 |
180 |
47 |
0.2 |
8-16 |
S635 |
625 |
50-100 |
1200 |
180 |
58 |
0.3 |
12-24 |
S640 |
750 |
50-100 |
1070 |
300 |
125 |
0.44 |
17-35 |
S650 |
900 |
50-100 |
1110 |
300 |
197 |
0.63 |
25-50 |
S660 |
1200 |
50-100 |
1110 |
300 |
290 |
1.13 |
45-90 |
Size Chart

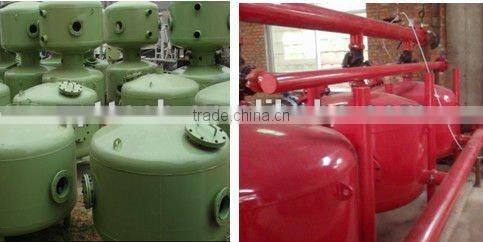

Real figure
