System overview

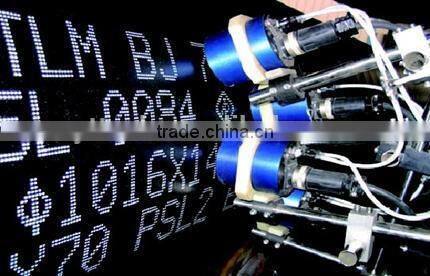

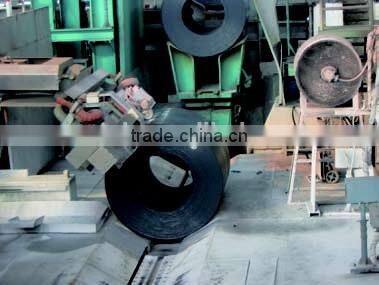

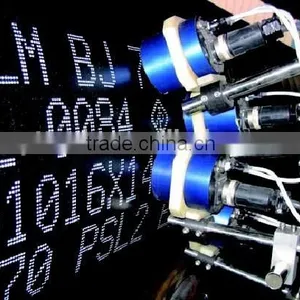

ZYT steel plate, roll, pipe printing machine can spray high temperature paint or ink spraying the plate, coil and steel surfaces.

Equipment type

ZYT-TPH-S30A-B

A - 1, 7,9,16,32, represent the number of nozzles

B - 2, 6, represent the form of the printing implementing agencies;

2 represents the two-dimensional jet printing, 6 represents 6 degrees of freedom surface jet printing.

System parameter

Paint Color: White

Paint temperature: 800 ° C

Ink temperature: 260 ° C

Print speed: a nozzle solid line font 2 seconds / word

7 x 5 dot matrix       140 characters / second

9 x 7 dot matrix         80 characters / second

16x10 dot matrix       60 characters / second

32x24 dot matrix        50 characters / second

Character height: 10 ~ 150mm

Character width: 10 ~ 100mm

Print content: computer can input any of the characters and graphics data Management: save and print data transmitted over the Internet

Protection level: IP65

Printing distance: 15 ~ 20mm

Energy Media

Gas Type: clean, dry compressed air or nitrogen (nitrogen is best)

Gas pressure: ≥ 0.5Mpa

Gas consumption: Max 0.5Nm/min

Power Source: three-phase 380V; 50Hz

Control power supply: DC 24V

Total power: 10KW
